Запчасти Case TR270 (35.723.AA[01]) - BUCKET CYLINDER (SR175,SR200,TR270) (35) - HYDRAULIC SYSTEMS

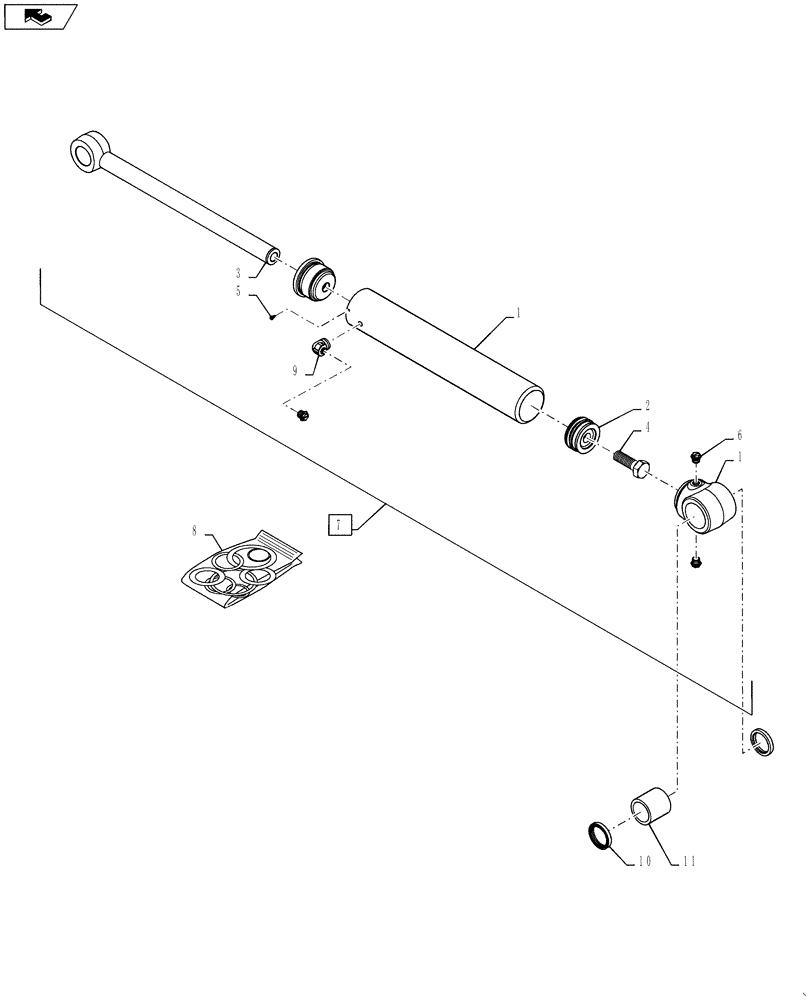

Схема запчастей Case TR270 - (35.723.AA[01]) - BUCKET CYLINDER (SR175,SR200,TR270) (35) - HYDRAULIC SYSTEMS
8
10
11
9
4
6
home
1
5
2
1
3
7

Артикул

Название

Примечание

Количество

7

84290567

HYDRAULIC CYLINDER,Double Acting, 34.9mm Rod, 410mm Stroke

Assembly, Bucket, Tan, Incl. 1-6

1шт.

7

47364446R

HYDRAULIC CYLINDER

SR175, SR200, Both SKID STEER LOADER, TR270 COMPACT TRACK LOADER, All Assembly, Bucket, Tan (4/11-), Reman for New PN 84290567

1шт.

7

47364446C

HYDRAULIC CYLINDER

Return Number

1шт.

1

84295112

BARREL,69.9mm Bore Dia

Hydraulic

1шт.

2

NSS

NOT SOLD SEPARAT

Package, Piston-Gland

1шт.

3

84295143

ROD,34.9mm OD x 565.6mm L

Rod, W

1шт.

4

86982436

SPECIAL BOLT,SEMS Hex, 7/8" - 14 x 2 - 1/2"

SEMS/A, 7/8 X 2.50

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

86625122

PLUG,HWH, 9/16" - 18 x 0.69" Incl NSS O-Ring

9/16-18

3шт.

8

84480953

SEAL KIT

Cylinder Repair Kit

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Welded In Ref 1

1шт.

10

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

Wiper

2шт.

11

84254659

BUSHING,44.63mm ID x 57.28mm OD x 57mm L

Cylinder

1шт.

12

9845313

BUSHING,38.15mm ID x 42.82mm OD x 22.2mm L

Rod Eye (Not Shown)

2шт.

Выбрано товаров: 14
