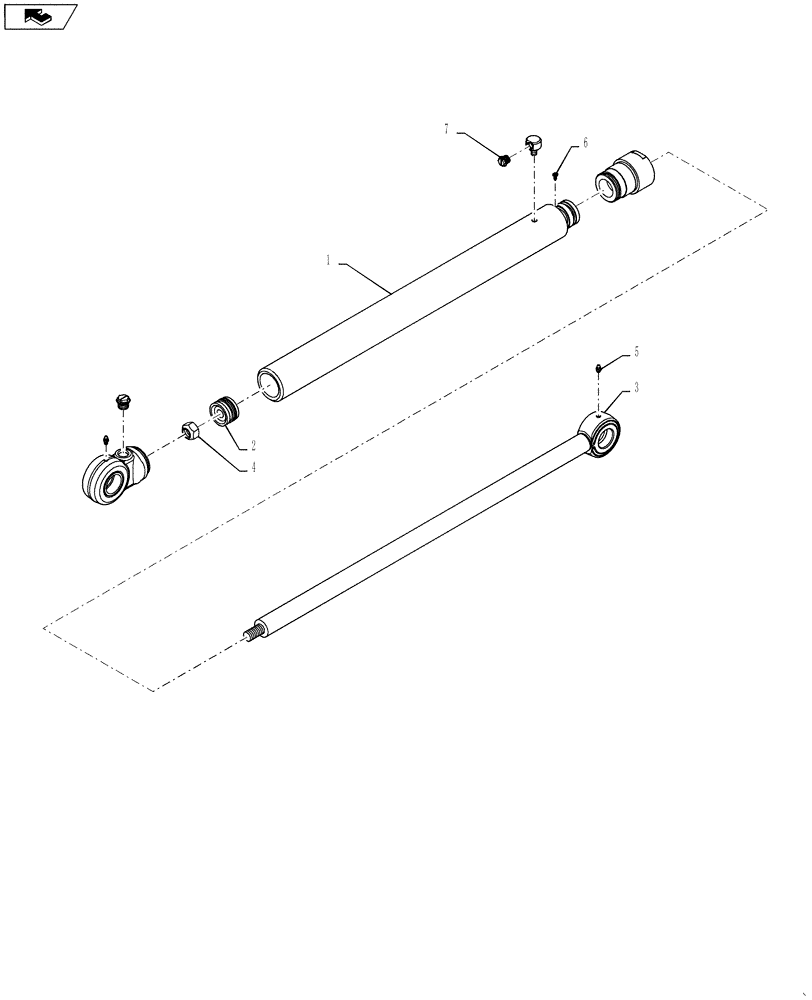

Запчасти Case TR270 (35.701.CB[01]) - HYDRAULIC CYLINDER (SR200,TR270) (35) - HYDRAULIC SYSTEMS

84231611

LIFT CYLINDER

Hydraulic, Power Tan, Incl. 1-7

1шт.

84278608R

REMAN-HYD CYLINDER

SR200, TR270 Both (4/11-); Reman for New P/N 84231611

1шт.

84278608C

CORE-HYD CYLINDER

Return Number

1шт.

1

84232901

TUBE,63.5mm Bore Dia

W

1шт.

2

87705819

SERVICE KIT

Package, Piston-Gland

1шт.

3

84232829

PISTON ROD/GLAND,44.43mm OD x 1126.85mm L

W

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

2шт.

6

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Locking

1шт.

7

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

3/4-16

2шт.

8

87705824

SEAL KIT

(Not Shown) Cylinder Repair Kit

1шт.
