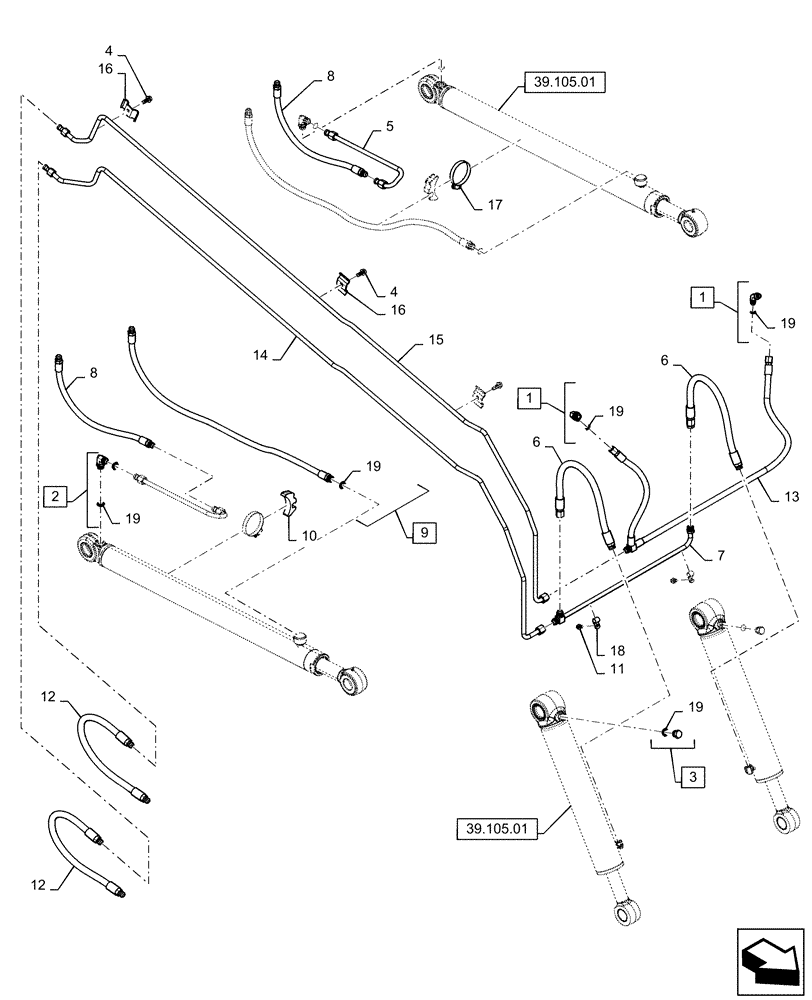

Запчасти Case TR270 (35.701.AX[02]) - LOADER HYDRAULICS (SR175,SR200,SR220,SR250,TR270,TR320) (35) - HYDRAULIC SYSTEMS

1

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

Incl 19

2шт.

2

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 19

2шт.

3

214389

PLUG,3/4" - 16 ORB

Incl 19

2шт.

4

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

5

47504629

HYD TUBE

Lift Cyl Base

2шт.

6

47505812

HOSE,12.5mm ID x 593mm L, SAE 100R16

Tip Cyl

2шт.

7

47539052

TUBE

Tip Crossover

1шт.

8

47540692

HOSE,10mm ID x 547mm L, SAE 100R16

Lift Cyl Base

2шт.

9

84255974

HOSE,9.53mm ID x 1105mm L, SAE 100R17

Lift Cyl Rod, Incl 19

2шт.

10

84255986

HOSE CLAMP

Cyl Saddle

2шт.

11

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

12

84322590

FLEXIBLE HOSE,12.7mm ID x 661mm L, SAE 100R16

Tip Cyl

2шт.

13

84346682

HOSE ASSY.,9.53mm ID x 1457mm L, SAE 100R17

Tip Cyl Base

1шт.

14

84352341

HYD TUBE

Tip Cyl

1шт.

15

84352352

HYD TUBE

Tip Cyl

1шт.

16

86501706

CLAMP

Double Tube

4шт.

17

86625033

HOSE CLAMP,77.7mm - 101.6mm, Worm Gear

2шт.

18

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

19

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

7шт.
