Запчасти Case TR270 (35.701.AX[01]) - LOADER VALVE PLUMBING (SR175,SR200,TR270) (35) - HYDRAULIC SYSTEMS

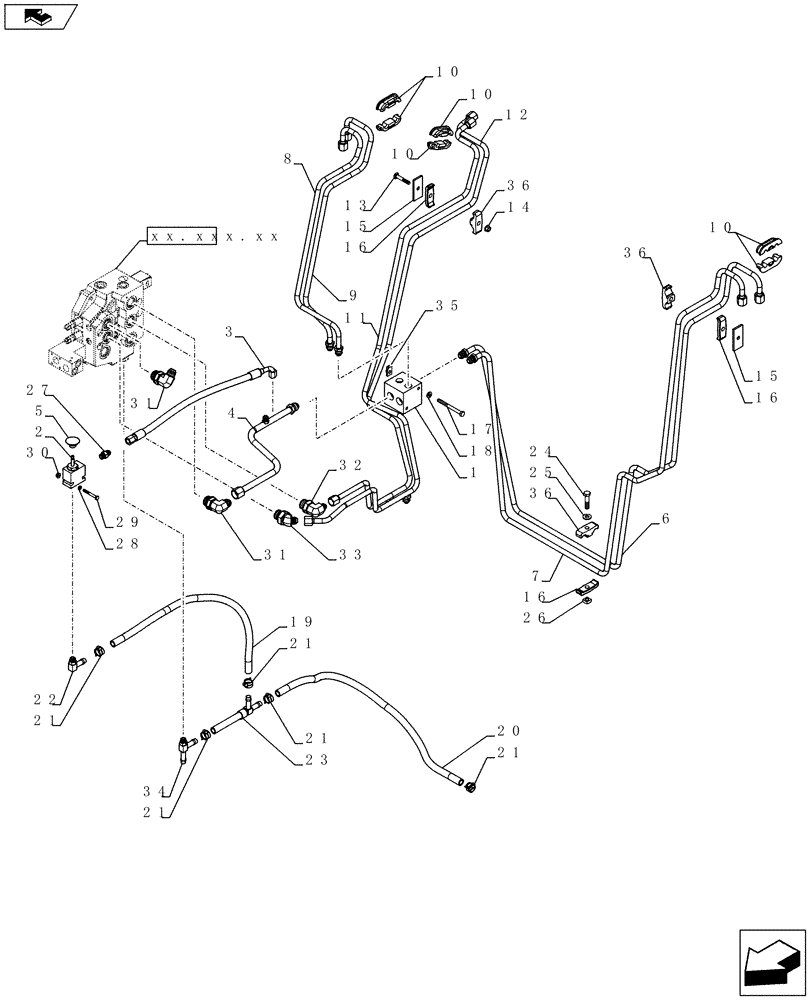

Схема запчастей Case TR270 - (35.701.AX[01]) - LOADER VALVE PLUMBING (SR175,SR200,TR270) (35) - HYDRAULIC SYSTEMS
1
11
19
17
33
35
16
15
29
15
3
12
7
28
36
21
30
20
27
21
13
10
8
21
16
21
14
home
31
23
9
2
36
22
5
32
24
10
10
4
6
18
21
31
25
36
26
16
xx.xxx.xx
10
34

Артикул

Название

Примечание

Количество

1

84258823

HYDRAULIC MANIFOLD

1шт.

2

84294239

VALVE

Boom Override

1шт.

3

84201224

HYDRAULIC HOSE,9.53mm ID x 535mm L, SAE 100R16

Override

1шт.

4

84181021

RIGID TUBE

Lift, Serial Range: Valve-Manifold

1шт.

5

87522292

KNOB

Knob, Override Valve

1шт.

6

84258841

RIGID TUBE

Lift, Manifold to Lft Arm

1шт.

7

84258858

RIGID TUBE

Lower, Manifold to Lft Arm

1шт.

8

84258829

RIGID TUBE

Lower, Manifold to Rt Arm

1шт.

9

84258833

RIGID TUBE

Lift, Manifold to Rt Arm

1шт.

10

376523A2

SUPPORT,1/2"

Hyd Tube

6шт.

11

84181028

RIGID TUBE

Tip, Loader Valve to Rt Arm

1шт.

12

84181031

RIGID TUBE

Tip, Loader Valve to Rt Arm

1шт.

13

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

1шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

15

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Bar Clamp Top

2шт.

16

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

3шт.

17

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

18

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

19

84299733

HOSE,12.7mm ID x 660mm L

Override to EH Aux Drive

1шт.

20

84299735

HOSE,12.7mm ID x 915mm L

EH Aux Drain to Drain Man

1шт.

21

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

5шт.

22

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

1шт.

23

84259682

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

1шт.

24

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

25

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

26

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

27

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

28

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

29

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

30

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

31

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

2шт.

32

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

1шт.

33

84289681

45 ELBOW,3/4" - 16 JIC x 1-1/16" - 12 ORB

1шт.

34

84299732

FITTING,Hose, 1/2" x 1/2" Barb x 9/16 - 18" ORB

1шт.

35

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

36

D120679

CLAMP,Tube, 1/2"

3шт.

Выбрано товаров: 36
