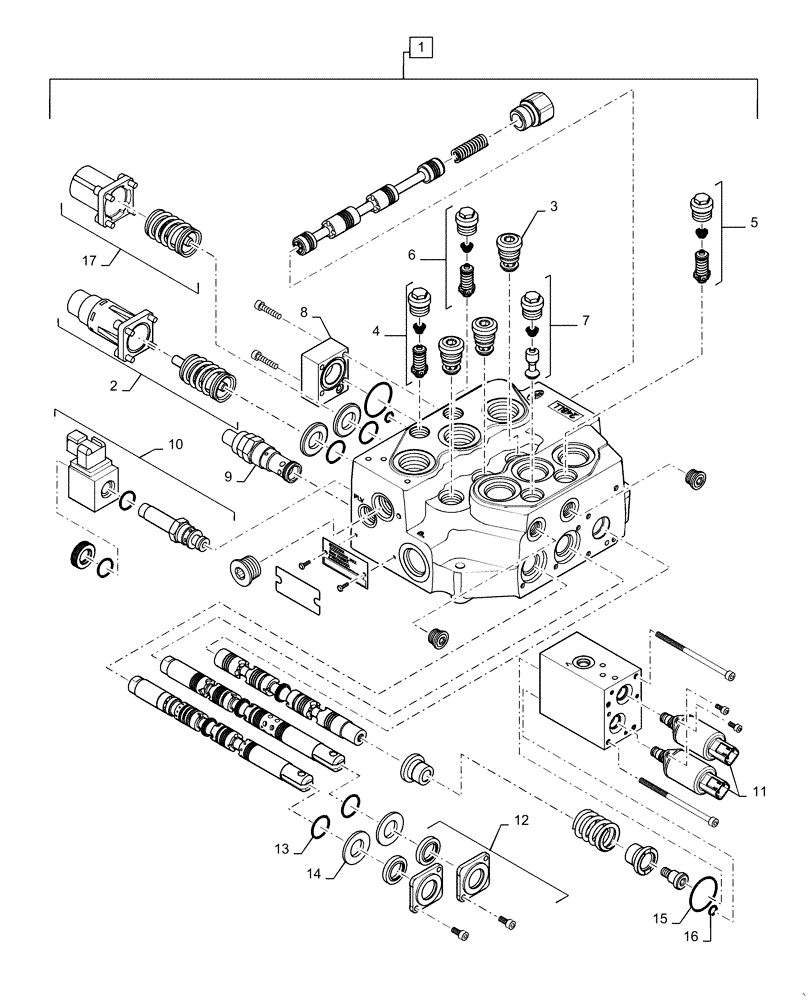

Запчасти Case TR270 (35.355.AH[01]) - LOADER CONTROL VALVE, HAND CONTROLS (1-NOV-2012 & PRIOR) (35) - HYDRAULIC SYSTEMS

1

47408220R

VALVE

Reman

1шт.

1

47408220C

CORE-VALVE HYD

Return Number

1шт.

1

47408220

CONTROL VALVE

Loader, Complete, Incl 2 - 17

1шт.

2

84386278

KIT

Hand Boom Spring

1шт.

3

84386281

CHECK VALVE

Load

3шт.

4

84386282

VALVE PRESSURE RELIE

225 Bar, Port Relief

1шт.

5

84598798

VALVE

80 Bar, Port Relief

1шт.

6

47458153

VALVE

260 Bar, Port Relief

1шт.

7

84386285

HYDRAULIC VALVE

Anti-Cavitation

1шт.

8

84386286

CAP

EH Auxiliary End

1шт.

9

84386287

VALVE PRESSURE RELIE

210 Bar, Port Relief

1шт.

10

84386288

HYDRAULIC VALVE

Solenoid

1шт.

11

84386289

VALVE, PRESSURE CONT

Pressure Reducing

2шт.

12

84386290

KIT

Valve Spool Wiper

3шт.

13

84386291

O-RING

Spool

4шт.

14

84386292

BACK-UP RING

Spool

4шт.

15

84386293

O-RING

EH Spool Cap

2шт.

16

84386294

O-RING

EH Spool Passage

3шт.

17

84386277

KIT

Hand Bucket Spring

1шт.
