Запчасти Case TR270 (35.100.BG) - HYDRAULIC SUPPLY PLUMBING (SR175, SR200, TR270) (35) - HYDRAULIC SYSTEMS

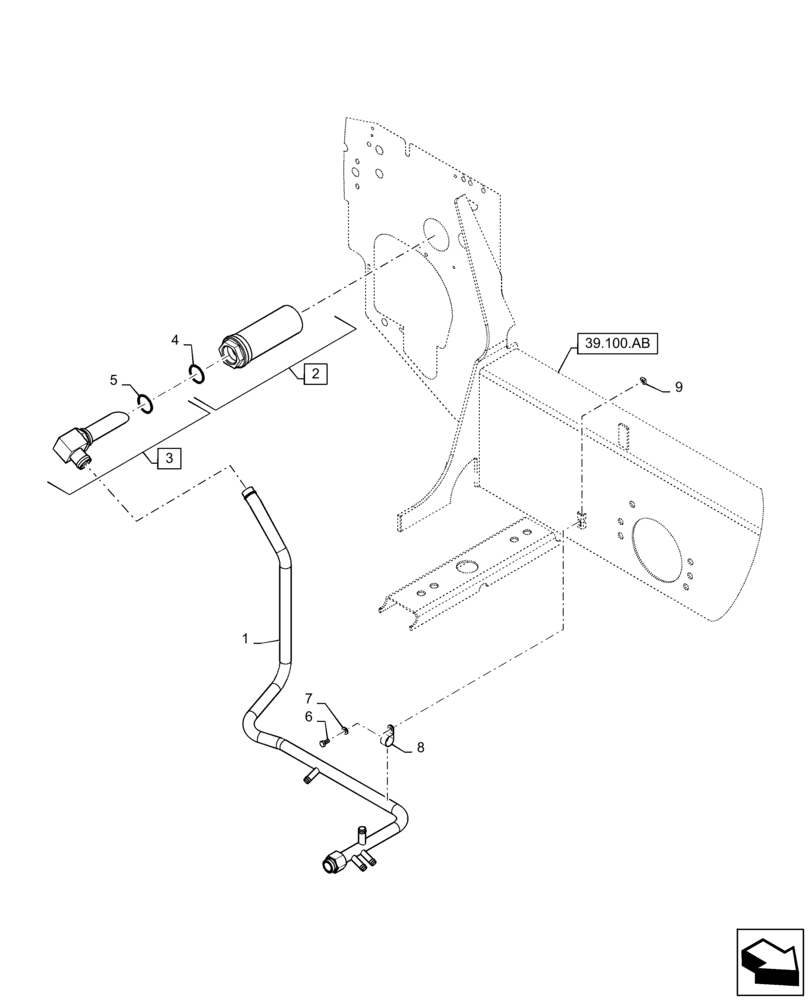

Схема запчастей Case TR270 - (35.100.BG) - HYDRAULIC SUPPLY PLUMBING (SR175, SR200, TR270) (35) - HYDRAULIC SYSTEMS
9
1
2
8
3
39.100.ab
7
5
4
6

Артикул

Название

Примечание

Количество

1

47684509

HYD TUBE

Tandem Supply

1шт.

2

84344918

FILTER STRAINER

Incl 4

1шт.

3

84344944

90 ELBOW,-24, 1-7/8"- 12 ORB, - 24 Bead

Incl 5

1шт.

4

87421144

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

5

9626930

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

6

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

7

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

8

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

9

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

Выбрано товаров: 9
