Запчасти Case TR270 (35.100.AB) - HYDRAULIC RETURN PLUMBING (SR175,SR200,TR270) (23-JAN-2011 & AFTER) (35) - HYDRAULIC SYSTEMS

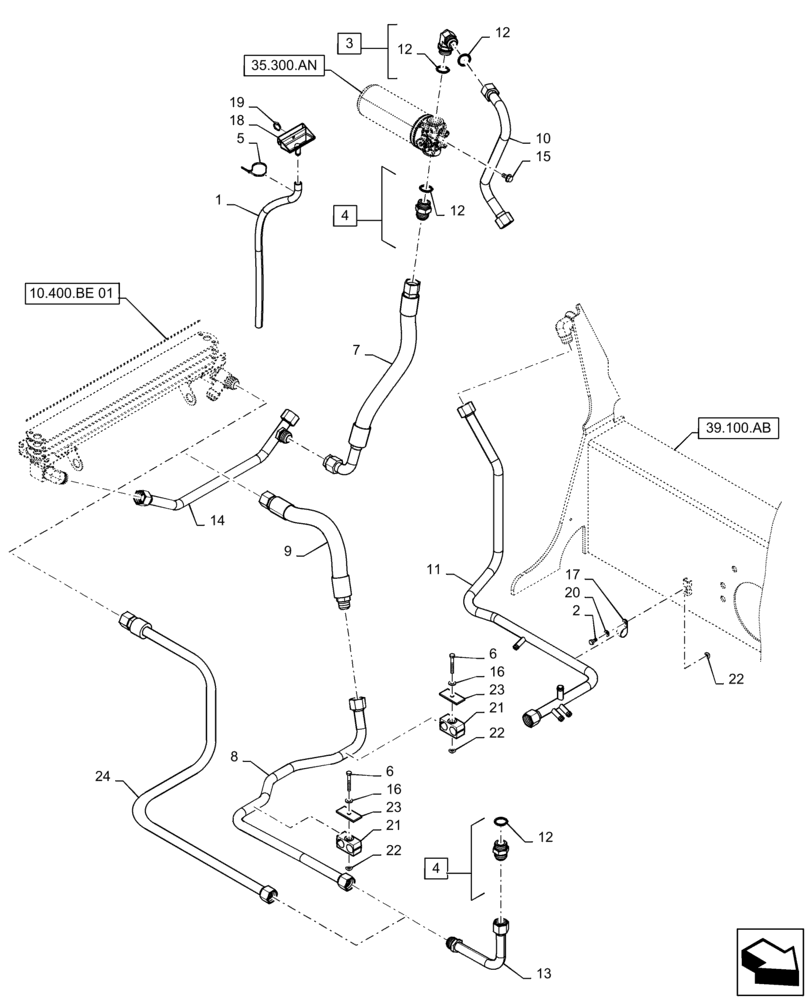

Схема запчастей Case TR270 - (35.100.AB) - HYDRAULIC RETURN PLUMBING (SR175,SR200,TR270) (23-JAN-2011 & AFTER) (35) - HYDRAULIC SYSTEMS
13
14
19
21
17
6
16
23
4
12
15
24
10
6
22
3
5
9
22
21
11
4
39.100.ab
35.300.an
23
8
16
7
18
22
12
10.400.be 01
12
20
1
2
12

Артикул

Название

Примечание

Количество

1

93963

PLASTIC-RUBBER TUBE,0.50" ID x 0.75" OD

2.0'

1шт.

2

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

3

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 12

1шт.

4

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Incl 12

2шт.

5

646223

STRAP,8.0" L

1шт.

6

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

7

47462048

HYDRAULIC HOSE,25.4mm ID x 665mm L, SAE 100R4

Oil Cooler Outlet

1шт.

8

47539984

TUBE

Loader Valve Outlet

1шт.

Replaced By Ref. 24 For Easier Installation

1шт.

9

47685163

HOSE,25mm ID X 520mm L x 1-5/16" - 12 x 1-5/16" - 12

Loader Valve Outlet To Oil Cooler

1шт.

Replaced By Ref. 24 For Easier Installation

1шт.

10

84344916

HYD TUBE

Filter Return, Years: -13-NOV-14

1шт.

10

47662390

HYD TUBE

Filter Return, Start Year: 14-NOV-14

1шт.

11

47684509

HYD TUBE

Case Drain Manifold

1шт.

12

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

4шт.

13

84310722

RIGID TUBE

Loader Valve OutletTo Drain Port Valve

1шт.

14

84375905

RIGID TUBE

Oil Cooler Outlet

1шт.

15

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

2шт.

16

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

17

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

18

87455867

FUNNEL

Oil Filter

1шт.

19

87642915

CABLE TIE,198mm L

Funnel

1шт.

20

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

21

225529A1

CLAMP,Dual, 25.4mm ID

Clamp Tube

2шт.

22

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

23

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Bar Clamp Top

2шт.

24

47537813

HOSE,19mm ID X 1745mm L x 1-5/16" - 12 x 1-5/16" - 12

Replaces Ref. 8 & 9 For Easier Installation

1шт.
