Запчасти Case TR270 (29.353.AE[01]) - TRAVEL SPEED E-H (TR270) (29) - HYDROSTATIC DRIVE

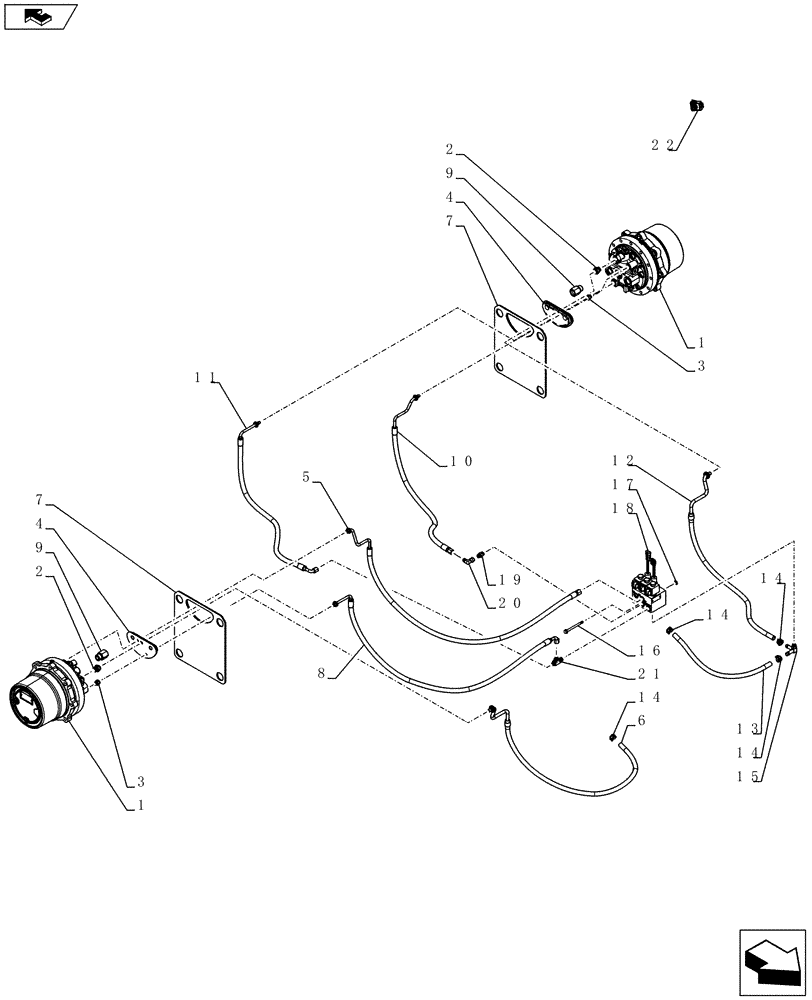

Схема запчастей Case TR270 - (29.353.AE[01]) - TRAVEL SPEED E-H (TR270) (29) - HYDROSTATIC DRIVE
1
home
14
15
4
3
3
14
2
12
10
1
21
7
14
17
18
9
9
8
11
7
5
2
13
6
4
14
16
20
22
19

Артикул

Название

Примечание

Количество

1

87588897

MOTOR-PUMP,50.9 CC

2-Spd Motor, Track Drive

2шт.

1

87588897R

REMAN-HYD MOTOR

2шт.

1

87588897C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

2

84277065

ADAPTER,3/4" - 16 ORB x -8 Fem Quick Lock

8FQLL-8MB

2шт.

3

84277064

ADAPTER,9/16" - 18 ORB x -6 Fem Quick Lock

8FQLL-6MB

4шт.

4

84331670

GROMMET

Chassis, Years: -05-JAN-16

2шт.

4

47893401

GROMMET

Chassis, Start Year: 06-JAN-16

2шт.

5

84280495

RIGID TUBE

Assy, Brake RH

1шт.

6

84280498

HYD TUBE

Assy, Case Drain RH, Must Order Ref. 2 Adapter

1шт.

7

84331874

PLATE

Grommet, Gray

2шт.

8

84412426

FLEXIBLE HOSE,9.53mm ID x 1270mm L, SAE 100R17

Assy, Two Speed RH, Must Order Ref. 3 Adapter

1шт.

9

84277066

ADAPTER,- 12 Fem Quick Lock HP x 1-1/16" - 12, - A3512 ORB

Female, HP Quick Lok, Years: -05-JAN-16

4шт.

9

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

, Start Year: 06-JAN-16

4шт.

10

84277069

BRAKE LINE

Assy, Brake LH

1шт.

11

84277074

FLEXIBLE HOSE,9.53mm ID x 1000mm L, SAE 100R1

Assy, Two Speed LH, Must Order Ref. 9 Adapter

1шт.

12

84280492

HYD TUBE

Assy, Case Drain LH, Must Order Ref. 2 Adapter

1шт.

13

84257173

HOSE,12.7mm ID x 570mm L

Brake Drain

1шт.

14

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

4шт.

15

84187294

ADAPTER,12.7mm OD Hose Bead x 12.7mm Hose Bead x 9/16" - 18 ORB

Fitting

1шт.

16

86511844

BOLT,M8 x 1.25 x 100mm, 22mm Thd, Cl 8.8

Flange, 8.8, M8 x 100

2шт.

17

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square, M8-1.25

2шт.

18

84256534

HYDRAULIC VALVE

EH Track Brake Valve

1шт.

19

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

20

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

21

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

22

84388282

INDICATOR

High Speed

2шт.

Выбрано товаров: 26
