Запчасти Case TR270 (29.353.AD[11]) - MOTOR ASSY, BONFIGLIOLI DRIVE MOTOR, TRACK 2SPD (TR270-TV380) (29) - HYDROSTATIC DRIVE

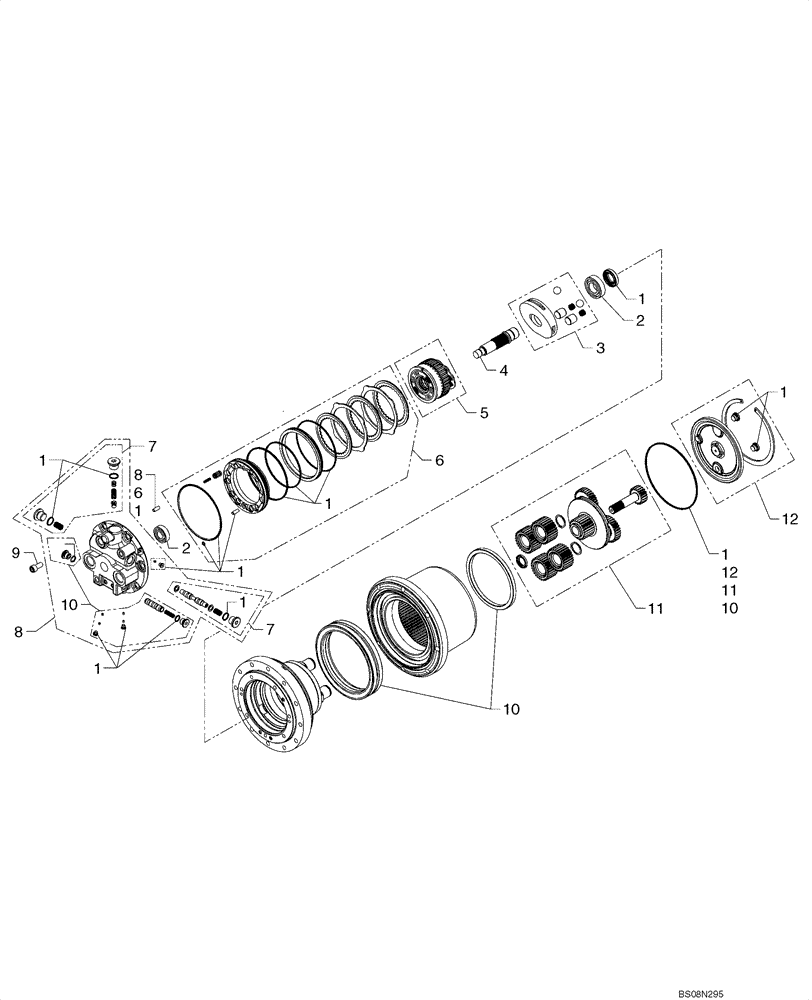

Схема запчастей Case TR270 - (29.353.AD[11]) - MOTOR ASSY, BONFIGLIOLI DRIVE MOTOR, TRACK 2SPD (TR270-TV380) (29) - HYDROSTATIC DRIVE
8
1
1
11
1
5
12
3
1
1
1
1
6
4
10
7
1
2
11
12
2
6
7
10
6
10
1
1

Артикул

Название

Примечание

Количество

87588897

MOTOR-PUMP,50.9 CC

2 Speed Motor, Track Drive; Incl 1 - 12

2шт.

87588897R

REMAN-HYD MOTOR

Remanufactured Hydraulic Motor

2шт.

87588897C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

1

87619920

SERVICE KIT

Repair Kit Incl 1A, 1B, (4) Pins, (3) Plugs, (1) Orifice, (1) Motor Seal Ring, (13) O-Rings

1шт.

1a

87619896

RING,Quad, 190.10mm OD x 3.53mm Thk

Quad-Ring

1шт.

1b

87619884

PLUG,3/8"

2шт.

2

87619918

SERVICE KIT

Bearings Kit Incl (2) Bearings

1шт.

3

87619916

SERVICE KIT

Swash Plate Kit Incl (1) Swash Plate, (2) Balls, (2) Pistons, (2) Springs

1шт.

4

87619917

SHAFT

Assembly Bonfiglioli

1шт.

5

87619915

SERVICE KIT

Cylinder Block Assy Kit Incl (1) Valve Plate, (1) Circlip, (1) Collar Washer, (1) Spring, (1) Spring Holder, (1) Cylinder Block, (3) Pins, (1) Spherical Bush, (1) Retainer Plate, (9) Pistons

1шт.

6

87619919

SERVICE KIT

Parking Brake Kit Incl (4) Pins, (7) O-Rings, (24) Springs, (1) Brake Pistons, (1) Brake Spacer, (2) Steel Discs, (3) Brake Discs

1шт.

7

87619914

SERVICE KIT

Flushing Kit Incl (1) Poppet, (3) Springs, (3) Spring Seats, (4) O-Rings, (3) Plugs, (1) Plunger

1шт.

8

87619902

SERVICE KIT

Base Plate Assy Kit Incl 8A, 8B, (3) Plugs, (1) Orifice, (2) Pins

1шт.

8a

87619914

SERVICE KIT

Flushing Kit

1шт.

8b

87619905

SERVICE KIT

Second Speed Spool Kit

1шт.

9

87619899

SCREW,Hex Skt, M12 x 1.75 x 35mm, Cl 12.9

1шт.

10

87619901

SPECIAL NUT

Seal-Nut Kit Incl 10A, (1) Lifetime Seal, (1) Nut

1шт.

10a

87619896

RING,Quad, 190.10mm OD x 3.53mm Thk

Quad

1шт.

11

87619900

SERVICE KIT

Reduction Assy Kit Incl 11A, (1) Centering Ring, (4) PlanetaryAssy, (4) Circlip, (1) First Reduction Assy, (1) Sun Gear

1шт.

11a

87619896

RING,Quad, 190.10mm OD x 3.53mm Thk

Quad

1шт.

12

87619883

SERVICE KIT

Cover Assy Kit Incl 12A, 12B, 12C, (1) Pad, (1) Cover

1шт.

12a

87619896

RING,Quad, 190.10mm OD x 3.53mm Thk

Quad

1шт.

12b

87619885

CIRCLIP

Bonfiglioli

1шт.

12c

87619884

PLUG,3/8"

2шт.

Выбрано товаров: 24
