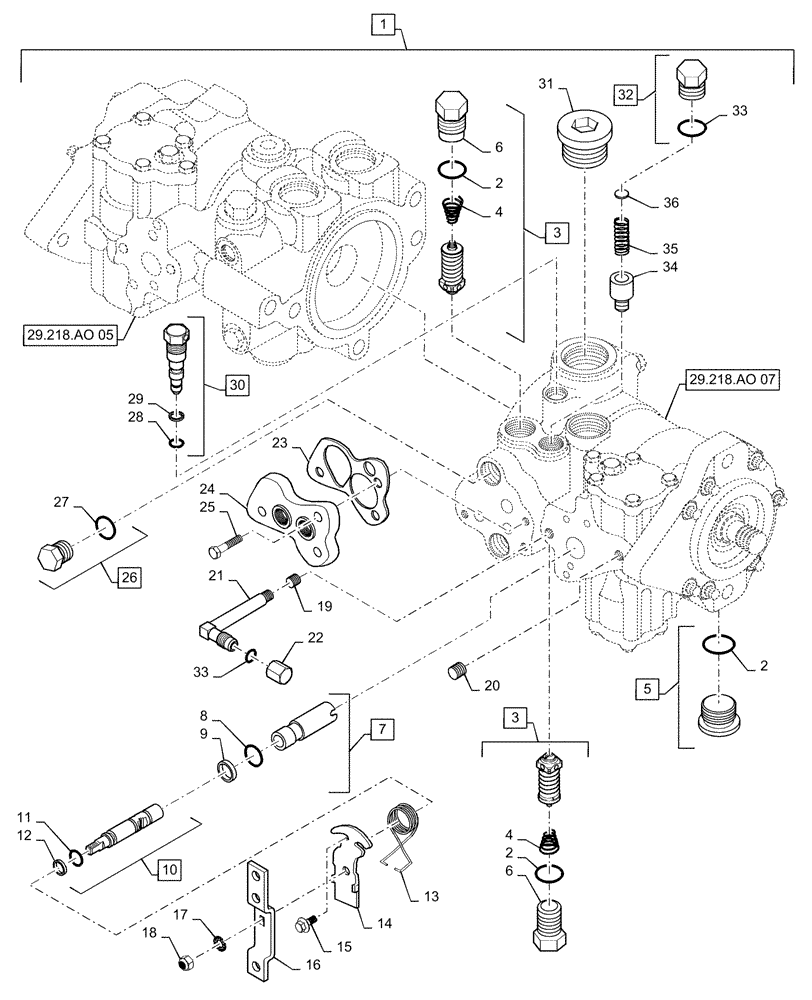

Запчасти Case TR270 (29.218.AO[04]) - TANDEM HYDROSTATIC PUMP, MECHANICAL CONTROL, 46CC, FRONT (SR200, SR220, SV250, TR270) (29) - HYDROSTATIC DRIVE

1

84322471

HYDROSTATIC PUMP,46 CC

Tandem Hydrostatic, 46cc, Non - Bushed, Incl 2 - 37

1шт.

1

84322471R

REMAN-HYD PUMP

Tandem Hydrostatic, 46cc

1шт.

1

84322471C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

3

105720A1

VALVE

Relief, 360 Bar, Incl 2, 4, 6

1шт.

4

86993468

SPRING

Relief Valve

2шт.

5

218-5212

PLUG,1-1/16" - 12 ORB

Incl 2

1шт.

6

NSS

NOT SOLD SEPARAT

Plug, Incl in 1, 3

2шт.

7

87039615

SLEEVE

Assy, Incl 8 - 9

1шт.

8

NSS

NOT SOLD SEPARAT

Back Up Ring, Incl in 1, 7

1шт.

9

86993483

BACK-UP RING,0.643"

1шт.

10

87042542

SPOOL

Assy, Incl 11 - 12

1шт.

11

86993475

O-RING

Spool Assy

2шт.

12

86993484

BACK-UP RING,0.390"

1шт.

13

N13248

SPRING,3/4" OD

Neutral Return

1шт.

14

N13250

BRACKET

Neutral Return

1шт.

15

H435770

FLANGE BOLT,1/4" - 20 x 5/8"

1шт.

16

100713A1

LEVER

Control Handle

1шт.

17

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

18

H436054

SPECIAL NUT,Lock, 5/16" - 18

1шт.

19

86993479

PIPE PLUG,1/16" - 27

Tube

1шт.

20

F23137

PLUG

Pipe

1шт.

21

218-506

90 ELBOW,7/16" - Male JIC x 1.8" - 27 Male NPTF

1шт.

22

86993467

CAP

Tube

1шт.

23

303709A1

GASKET

Suction Filter Adapter

1шт.

24

101462A1

ADAPTER

Suction Filter

1шт.

25

26-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

3шт.

26

218-5155

PLUG,9/16" - 18 ORB

Incl 27

2шт.

27

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

28

86993475

O-RING

Bypass Valve Assy

1шт.

29

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

1шт.

30

87039612

BY-PASS VALVE

Assy, Incl 28 - 29

1шт.

31

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

32

9672438

PLUG,7/16" - 20 ORB

Incl 33

1шт.

33

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

34

V38371

VALVE

Charge Relief

1шт.

35

244898A1

SPRING

Charge Relief Valve

1шт.

36

H407767

KIT

Shim, Contains 15 Shims

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

38

87039611

PLUG

Charge Relief, Assy, Incl 37

1шт.
