Запчасти Case TR270 (29.218.AO[03]) - TANDEM HYDROSTATIC PUMP, MECHANICAL CONTROL, 46CC, FRONT (SR200, SR220, SV250, TR270) (29) - HYDROSTATIC DRIVE

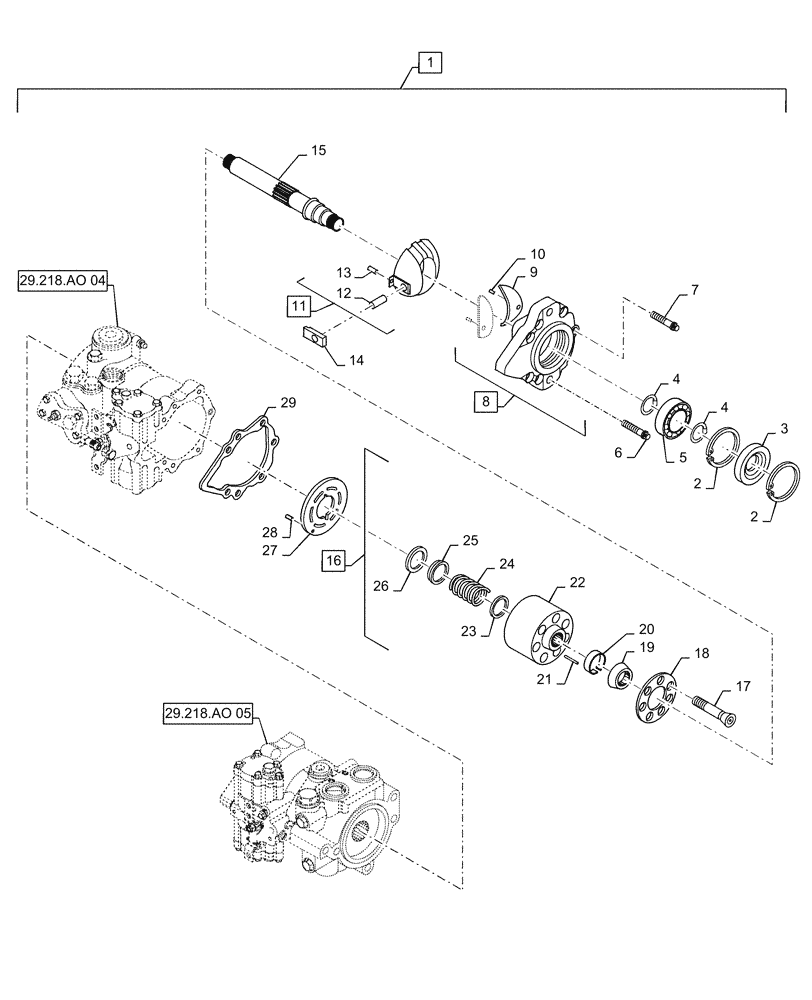

Схема запчастей Case TR270 - (29.218.AO[03]) - TANDEM HYDROSTATIC PUMP, MECHANICAL CONTROL, 46CC, FRONT (SR200, SR220, SV250, TR270) (29) - HYDROSTATIC DRIVE
3
16
15
11
14
27
9
29.218.ao 04
2
29.218.ao 05
18
12
8
26
17
1
4
28
10
21
13
2
7
24
5
25
4
20
6
23
22
19
29

Артикул

Название

Примечание

Количество

1

84322471

HYDROSTATIC PUMP,46 CC

Tandem Hydrostatic, Front, 46CC, Non - Bushed, Incl 2 - 31

1шт.

1

84322471R

REMAN-HYD PUMP

Tandem Hydrostatic, Front, 46cc

1шт.

1

84322471C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

F61018

SNAP RING,M73, Int

Pump Shaft

2шт.

3

N14103

SEAL

Front Pump, Lip

1шт.

4

100-11137

SNAP RING,#137, Ext

Pump Shaft

2шт.

5

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

1шт.

6

223677A1

SCREW,Torx, 7/16"

Front Cover

6шт.

7

223680A1

SPECIAL BOLT,Torx, 3/8"

1шт.

8

84383828

COVER ASSY

Front, Incl 9 - 10

1шт.

9

193488A1

BEARING LINER

Journal

2шт.

10

193494A1

PIN, ROLL

Spring

2шт.

11

87050523

PLATE ASSY.

Variable Swashplate, Incl 12 - 13

1шт.

12

N13254

PIN

1шт.

13

324610A1

PIN

1шт.

14

N13324

SUPPORT

Bearing Sleeve

1шт.

15

N13244

SHAFT

Hydrostat, Front Pump

1шт.

16

87039625

KIT

Non - Bushed, Incl 17 - 26

1шт.

17

NSS

NOT SOLD SEPARAT

Piston Assy, Incl in 1, 16

7шт.

18

NSS

NOT SOLD SEPARAT

Slipper Guide, Incl in 1, 16

1шт.

19

115942A1

GUIDE

Retainer

1шт.

20

115943A1

SNAP RING

Retainer

1шт.

21

110873A1

PIN,2.38mm OD x 33.53mm L

Slipper Hold - Down

2шт.

22

NSS

NOT SOLD SEPARAT

Cylinder Block, Incl in 1, 16

1шт.

23

115946A1

WASHER

1шт.

24

115948A1

SPRING

Cylinder Block

1шт.

25

115950A1

WASHER

1шт.

26

NSS

NOT SOLD SEPARAT

Retaining Ring, Incl in 1

1шт.

27

128928A1

LARGE PLATE

Valve

1шт.

28

138-217

LOCK PIN,3/16" OD x 7/16" L, Slotted

1шт.

29

1277297C1

NEEDLE BEARING

1шт.

30

H436704

GASKET,0.79mm Thk

Front Cover

1шт.

31

N13994

SPACER

Pin

2шт.

Выбрано товаров: 33
