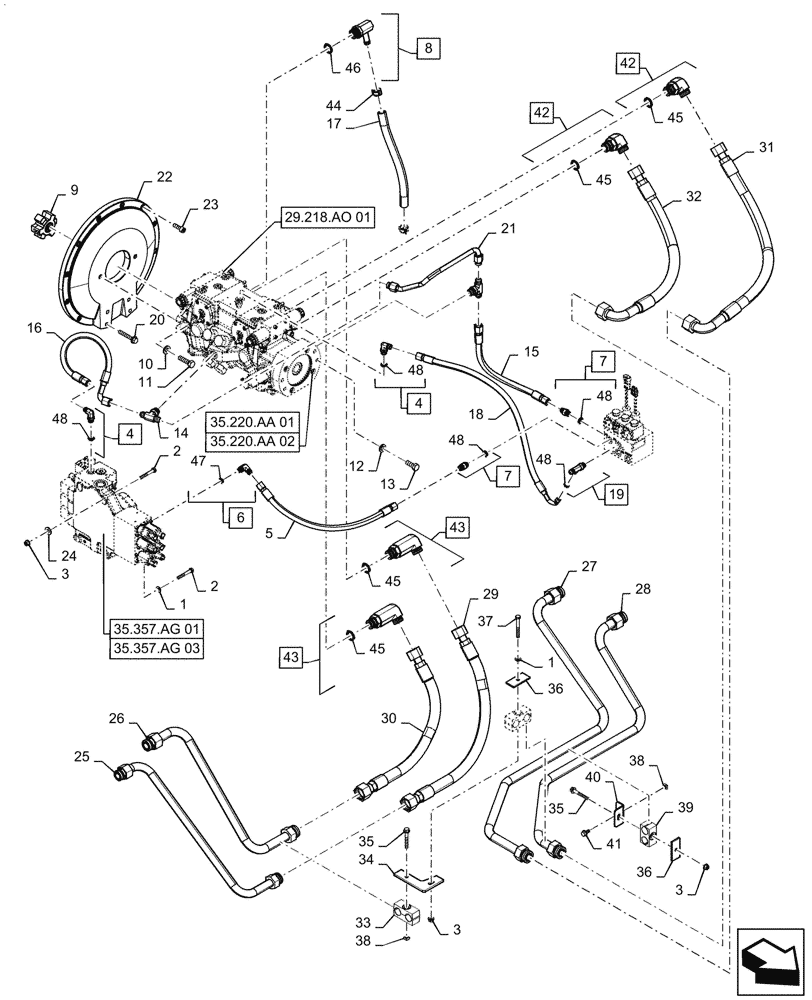

Запчасти Case TR270 (29.204.AB[04]) - HYDROSTATIC PUMP, DRIVE LINES, EH CONTROLS (24-MAR-2015 & AFTER) (29) - HYDROSTATIC DRIVE

1

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

5шт.

2

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

EH Control to Brake

5шт.

4

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 48

2шт.

5

84288343

FLEXIBLE HOSE,9.53mm ID x 750mm L, SAE 100R17

1шт.

6

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 47

1шт.

7

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 48

2шт.

8

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

Incl 46

1шт.

9

87711337

COUPLING,19T, 1-1/8" ID

Drive Star

1шт.

10

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

11

9790095

BOLT,1/2" - 13 x 1-3/4", Gr 8

2шт.

12

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

13

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

14

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

15

47845789

HOSE,10mm ID x 420mm L

EH Brake Charge

1шт.

16

84299736

FLEXIBLE HOSE,9.53mm ID x 512mm L, SAE 100R17

EH LV Interlock

1шт.

17

84273646

HOSE,15.88mm ID x 304.8mm L

Pump Drain

1шт.

18

84309599

FLEXIBLE HOSE,9.53mm ID x 780mm L, SAE 100R17

EH Brake

1шт.

19

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 48

1шт.

20

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

3шт.

21

84349300

RIGID TUBE,12.7mm OD

EH Charge Supply

1шт.

22

47659227

COVER

Flywheel

1шт.

23

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

9шт.

24

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

25

47889297

HYD TUBE

RH CTL, Drive Motor

1шт.

26

47889299

HYD TUBE

RH CTL, Drive Motor

1шт.

27

47889524

HYD TUBE

LH CTL, Drive Motor

1шт.

28

47889526

HYD TUBE

LH CTL, Drive Motor

1шт.

29

47926580

HOSE,19mm ID x 670mm L, SAE100R19

Loop

1шт.

30

47926578

HOSE,19mm ID x 565mm L, SAE100R19

Loop

1шт.

31

47926582

HOSE,19mm ID x 760mm L, SAE100R19

Loop

1шт.

32

47926584

HOSE,19mm ID x 645mm L, SAE100R19

Loop

1шт.

33

1546028C1

CLAMP,25.4mm ID x 82mm L

Dual

2шт.

34

47893882

PLATE

Clamp Mounting

1шт.

35

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

36

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

2шт.

37

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

38

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

39

225529A1

CLAMP,Dual, 25.4mm ID

1шт.

40

47895194

BRACKET

Clamp Mounting

1шт.

41

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

42

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl 45

2шт.

43

87661865

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 45

2шт.

44

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

45

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

46

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

47

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

48

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.
