Запчасти Case TR270 (29.204.AB[02]) - HYDROSTATIC PUMP, DRIVE, LINE, MECHANICAL CONTROLS (20-NOV-2015 & NEWER) (29) - HYDROSTATIC DRIVE

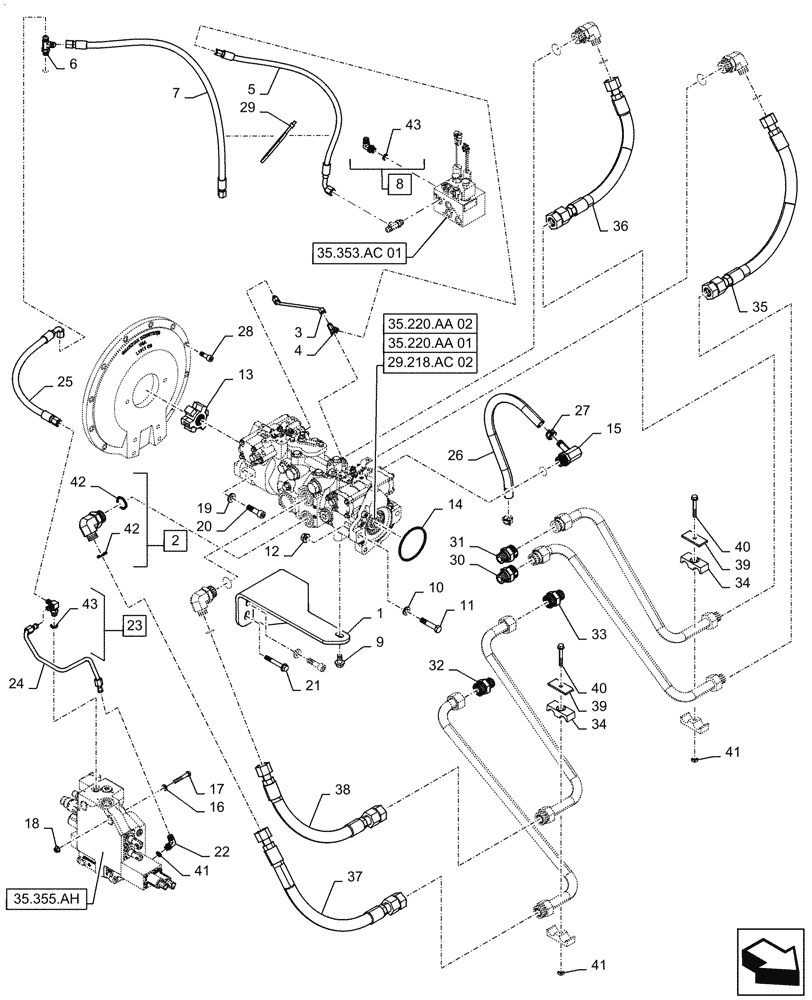

Схема запчастей Case TR270 - (29.204.AB[02]) - HYDROSTATIC PUMP, DRIVE, LINE, MECHANICAL CONTROLS (20-NOV-2015 & NEWER) (29) - HYDROSTATIC DRIVE
35.220.aa 01
34
39
18
41
40
3
40
5
10
16
30
43
41
1
7
4
41
15
38
26
11
2
14
32
42
34
21
23
28
25
31
43
9
13
17
39
29
8
37
42
6
24
19
20
36
27
22
12
33
35
35.353.ac 01
29.218.ac 02
35.220.aa 02
35.355.ah

Артикул

Название

Примечание

Количество

1

84560744

MOUNT

Pump Support, Gray

1шт.

2

87326965

90 ELBOW,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

Incl 42

4шт.

3

87021277

TUBE,6.35mm OD x 124.9mm L, 37 Degree Flare

1шт.

4

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

5

84257175

HOSE ASSY.,6.35mm ID x 650mm L, SAE 100R17

1шт.

6

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

6

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

, Start Year: 03-OCT-16

1шт.

7

84257174

HOSE ASSY.,9.53mm ID x 765mm L, SAE 100R17

1шт.

8

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 43

1шт.

9

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

1шт.

10

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

11

9706693

BOLT,M12 x 60mm, Cl 8.8

2шт.

12

9804279

FLANGE NUT,Hex, M12, Cl 8

2шт.

13

87711337

COUPLING,19T, 1-1/8" ID

1шт.

14

87013729

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

1шт.

15

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

1шт.

16

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

3шт.

17

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

4шт.

18

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

19

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

20

15734

SCREW,Hex Socket, 1/2" - 13 x 1-3/4"

1шт.

21

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

1шт.

22

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

1шт.

23

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Incl 43

1шт.

24

84373389

RIGID TUBE,9.53mm OD

1шт.

25

84259516

FLEXIBLE HOSE,9.53mm ID x 482.3mm L, SAE 100R17

2шт.

26

47919061

HOSE,16mm ID x 535mm L

Hydraulic Drain

1шт.

27

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

28

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

9шт.

29

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

30

47889297

HYD TUBE

RH, Drive Motor, Rear

1шт.

31

47889299

HYD TUBE

RH, Drive Motor, Front

1шт.

32

47889336

HYD TUBE

LH, Drive Motor, Rear

1шт.

33

47889338

HYD TUBE

LH, Drive Motor, Front

1шт.

34

1546028C1

CLAMP,25.4mm ID x 82mm L

2шт.

35

47926576

HOSE,19mm ID x 600mm L, SAE100R19

1шт.

36

47926577

HOSE,19mm ID x 500mm L, SAE100R19

1шт.

37

47926578

HOSE,19mm ID x 565mm L, SAE100R19

1шт.

38

47926579

HOSE,19mm ID x 475mm L, SAE100R19

1шт.

39

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

2шт.

40

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

41

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

42

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

4шт.

43

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

Выбрано товаров: 44
