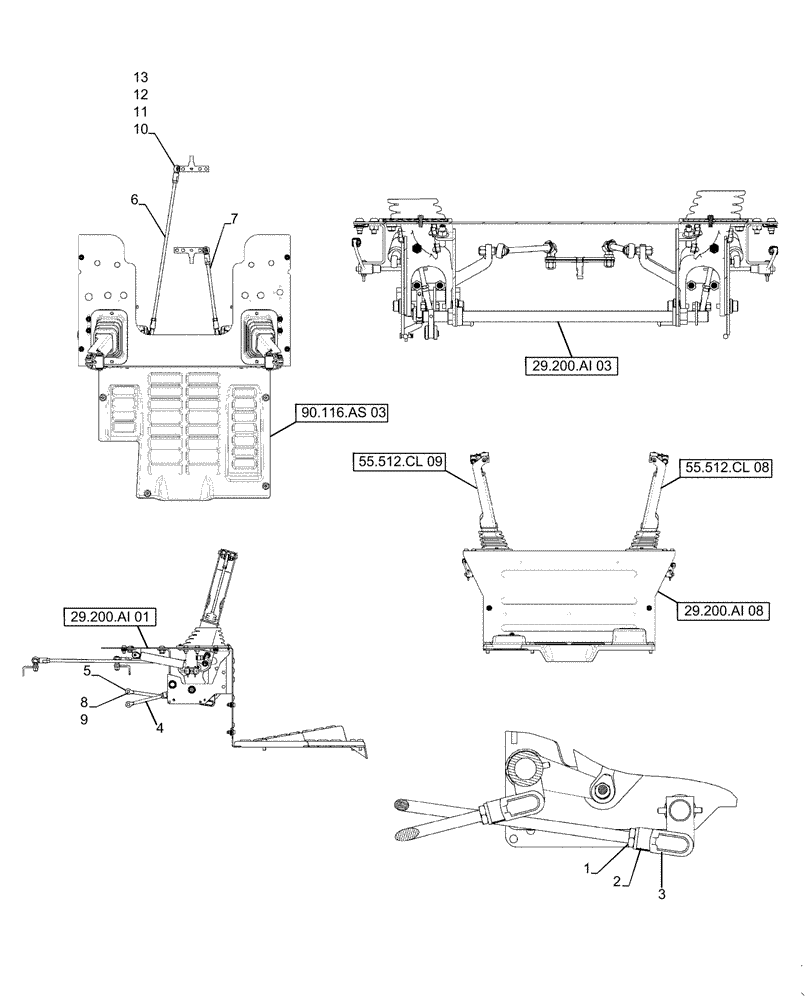

Запчасти Case TR270 (29.200.AI[07]) - HAND CONTROLS, MD FRAME SERVO (SR200, TR270) (29) - HYDROSTATIC DRIVE

1

84221258

THIN NUT,M10 x 1.5, Cl 5

2шт.

2

84299261

CLEVIS,10mm ID x 20mm L

2шт.

3

84299262

CLEVIS PIN,10mm OD x 20mm L

2шт.

4

84300037

ROD,10mm OD x 143.2mm L

Loader Valve Bucket

1шт.

5

84300039

ROD,10mm OD x 283.7mm L

Loader Valve Boom

1шт.

6

84303979

THREADED ROD,3/8" - 24 x 519mm L

Ground Drive, Md Frm Servo

1шт.

7

84303981

THREADED ROD,3/8" - 24 x 230mm L

Ground Drive, Md Frm Servo

1шт.

8

234726

CLEVIS PIN,6.29mm OD x 20mm L

2шт.

9

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

2шт.

10

80855

NUT,Hex, 3/8" - 24

2шт.

11

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

2шт.

12

86509310

NUT,3/8" - 24, Gr 5

2шт.

13

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

2шт.
