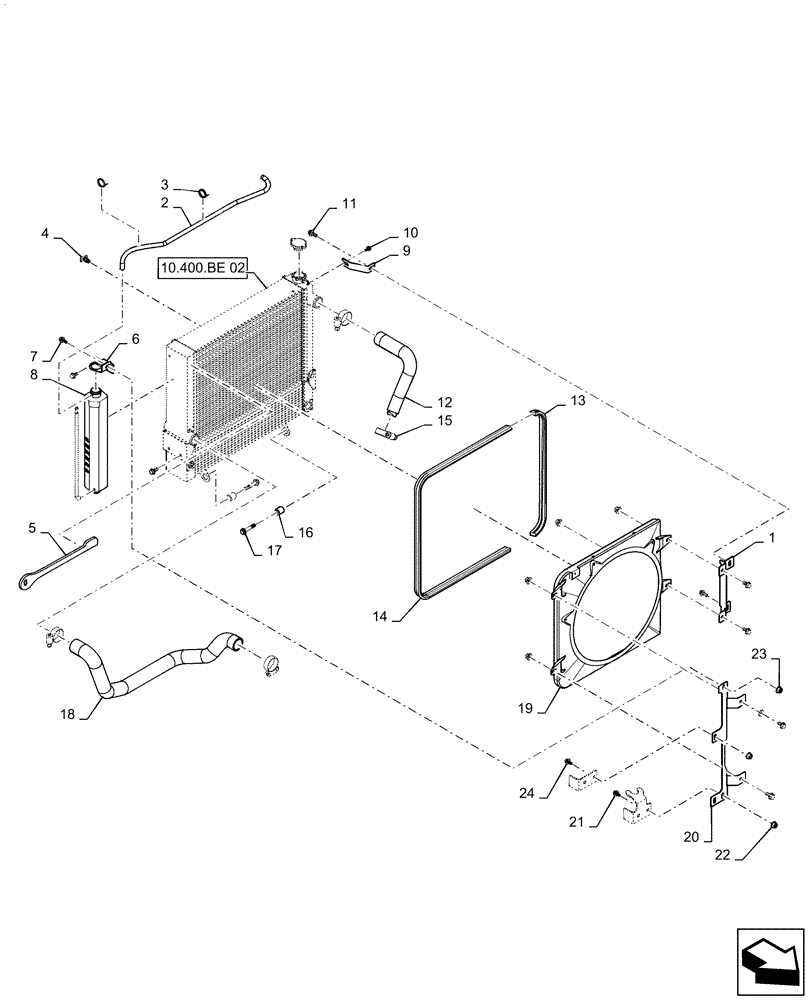

Запчасти Case TR270 (10.400.BE[01]) - RADIATOR & COOLER, LINES (SR200, TR270) (10) - ENGINE

1

84259397

BRACKET

Fan Shroud, LH

1шт.

2

84268809

HOSE,7.9mm ID x 870mm L

Coolant Recovery

1шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

4

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Drain

1шт.

5

84350590

SUPPORT

Coolant Recovery Hose

1шт.

6

47681407

BRACKET

Coolant Bottle, Upper

1шт.

7

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

8

87020980

BOTTLE,2L

Recovery

1шт.

9

84259564

BRACKET

Radiator Mount

1шт.

10

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

11

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

12

84332751

RADIATOR HOSE

Radiator

1шт.

13

84277010

RUBBER SEAL,576.1mm L

Bulb

1шт.

14

84277011

RUBBER SEAL,1721mm L

Bulb

1шт.

15

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

4шт.

16

87626729

SPACER,12.8mm ID x 25.4mm OD x 25.4mm L

Hinge, Pivot

2шт.

17

87301277

BOLT,M12 x 71.8mm, Cl 10.9

2шт.

18

84277826

HOSE

Lower, Coolant

1шт.

19

84201419

SHROUD

Fan

1шт.

20

47681404

BRACKET

Fan Shroud, RH

1шт.

21

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

6шт.

22

43435

FLANGE NUT,Hex, M10 x 1.5

4шт.

22

86619802

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

23

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

24

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

1шт.
