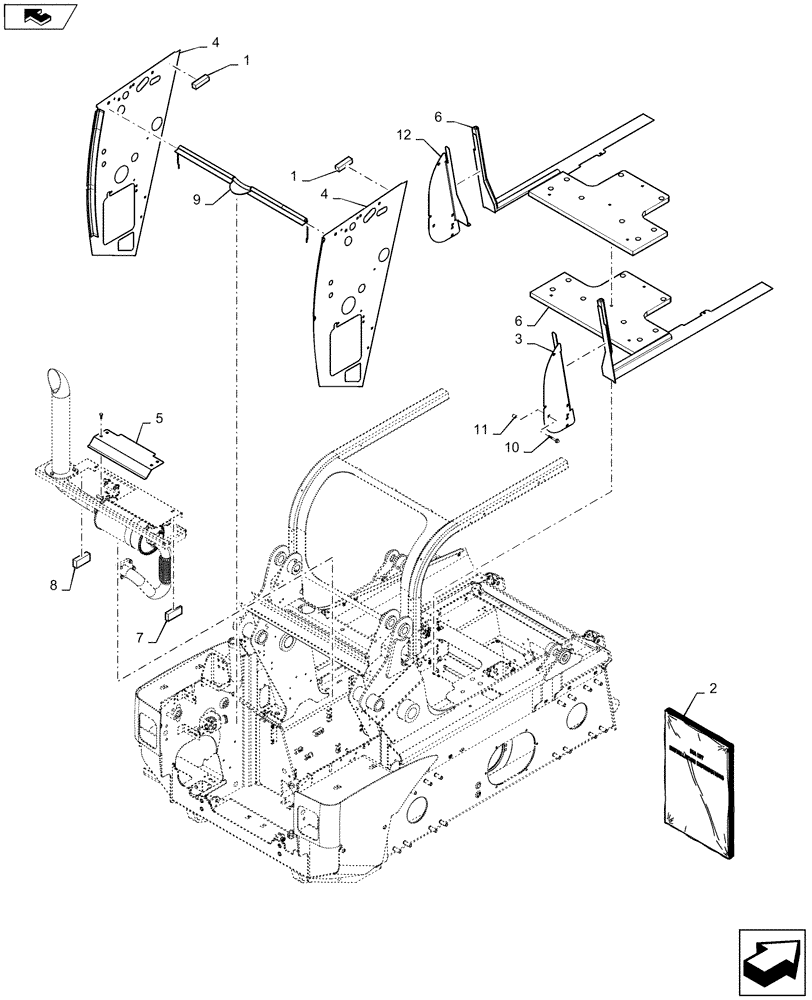

Запчасти Case TR270 (88.100.90[16]) - DIA KIT, DEBRIS SOFT PART (88) - ACCESSORIES

47415571

KIT

Debris Soft Parts

1шт.

1

WIC291355

PAD

0.625TF, Foam

1шт.

2

47359203

COVER

Chassis Vent, LH

1шт.

3

47359205

COVER

Chassis Vent, RH

2шт.

4

47365894

SEAL

1620mm

1шт.

5

47367892

BRACKET

Heat Shield

1шт.

6

84338534

SEAL,Bulk 30.48m

2000mm

1шт.

7

84600485

FOAM INSULATION

Hood, RH

1шт.

8

84600487

FOAM INSULATION

Hood, LH

1шт.

9

84602176

SEAL

1787mm

1шт.

10

86511840

BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8

3шт.

11

87377305

SPACER,6.8mm ID x 10.3mm OD x 13mm L

Spacer

3шт.

12

47459802

INSTRUCTION

Sheet

1шт.
