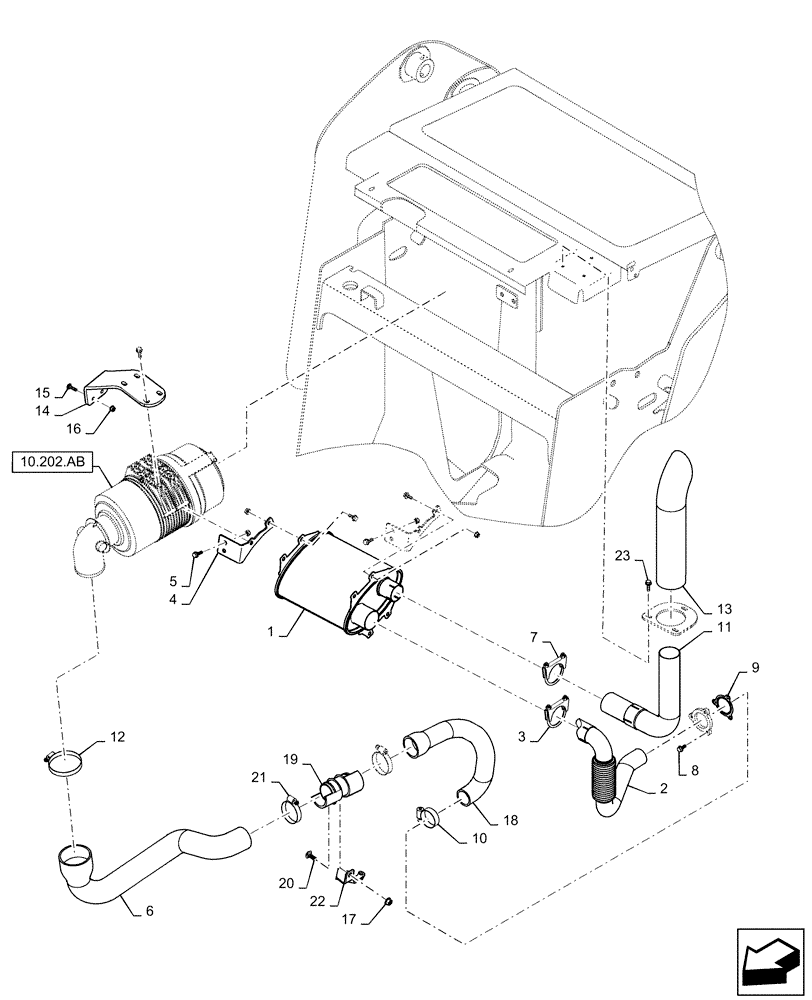

Запчасти Case TR270 (10.202.AD) - ENGINE, EXHAUST SYSTEM MED F5C (SR200, TR270) (10) - ENGINE

1

84287182

MUFFLER

Bilen F5C

1шт.

2

84287181

EXHAUST SYSTEM PIPE

Flexible

1шт.

3

84588569

CLAMP,54mm ID, Muffler

1шт.

4

84365650

BRACKET

Muffler

2шт.

5

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

6

47635476

HOSE

Air

1шт.

7

47541188

CLAMP,68mm ID, Muffler

1шт.

8

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

9

87611895

GASKET,0.4mm Thk

Muffler

1шт.

10

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

11

84287183

EXHAUST SYSTEM PIPE

Exhaust Tailpipe

1шт.

12

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

1шт.

13

84495949

EXTENSION

Extension

1шт.

14

84309314

BRACKET

Air Cleaner, Radial

1шт.

15

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

16

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

7шт.

17

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

18

84335246

TUBE

Coupler to Turbo

1шт.

19

84198602

PIPE COUPLING,60mm OD x 93mm OAL

Intake Hose

1шт.

20

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

21

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

2шт.

22

87471945

BRACKET

Air Cleaner Coupler

1шт.

23

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

3шт.
