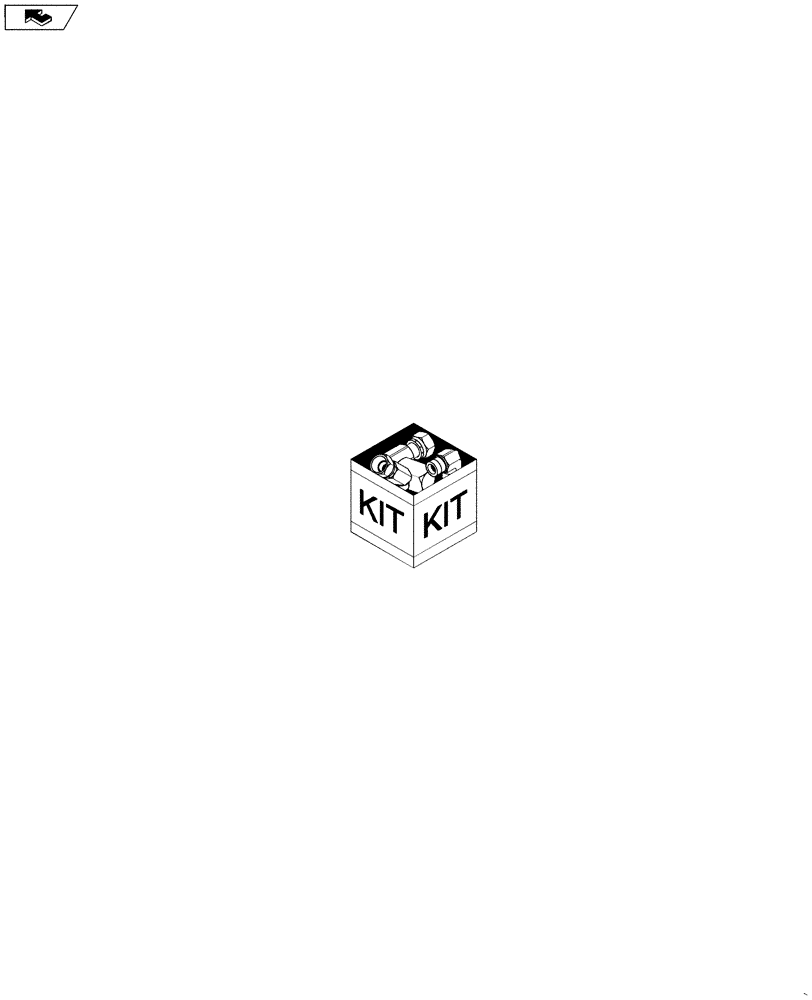

Запчасти Case TR270 (88.100.35[10]) - DIA KIT, HIGH FLOW AUX - MED RADIAL (SR175,SR200,TR270) (88) - ACCESSORIES

84305871

KIT

DIA Kit, High Flow Aux, Med Radial, Incl. 1-51

1шт.

1

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

2

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

3

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

4

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

5

366046

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8

M8 X 80

1шт.

6

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

8

84186142

TUBE

Assembly, Aux, LDR Valve to Lift Arm

1шт.

9

84186144

TUBE

Assembly, Aux, LDR Valve to Lift Arm

1шт.

10

84186146

TUBE,12.7mm OD

Assembly, HF Valve to LDR Valve

1шт.

11

84251427

SWITCH

Rocker, High Flow

1шт.

12

84256405

HYDRAULIC VALVE

High Flow Combiner

1шт.

13

84362112

SUPPORT

Hydraulic Tube

2шт.

14

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

15

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

16

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

17

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

18

D124301

CLAMP,3/4" ID

3/4

2шт.

19

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

20

84256518

PUMP,24.9 CC

24.9/12.5cc, Gear

1шт.

21

84329004

HOSE,15.88mm ID x 586mm L, SAE 100R17

Assembly, High Flow, Supply

1шт.

22

84330502

HOSE,9.53mm ID x 830mm L, SAE 100R17

Assembly, Valve Supply

1шт.

23

86507102

HYD CONNECTOR,1-1/16" - 12 ORB x 7/8" - 14 JIC

1шт.

24

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

25

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

26

84256248

PUMP,34.1 CC

34.1/12.5cc, Gear

1шт.

27

84306939

COVER

Hydraulic, Gray

1шт.

28

84329005

HOSE,15.88mm ID x 594mm L, SAE 100R17

Assembly, High Flow, Supply

1шт.

29

76352

90 ELBOW,3/4" - 16 JIC x 1/2" - 14 NPTF

1шт.

30

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

31

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

2шт.

32

84255994

FITTING,Male - 12 ORB x Fem - 12 ORB x Fem - 12 ORB

Tee Adj -12 ORB

2шт.

33

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

Female, Quick Coupler

1шт.

34

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

Male, Quick Coupler

1шт.

35

84259689

VALVE

Quick Attach, High Flow

1шт.

36

84277076

PIPE CLAMP,64.1mm L x 38.1mm W x 4.75mm Thk

Tube

4шт.

37

84277083

TUBE SPACER,11.1mm ID x 15.9mm OD x 18.1mm L

3шт.

38

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

39

84306937

COVER PLATE

Hydraulic, Tan

1шт.

40

84322573

HYD TUBE

Assembly, High Flow, Male

1шт.

41

84322575

FLEXIBLE HOSE,15.88mm ID x 698mm L, SAE 100R17

Assembly, High Flow, Aux

1шт.

42

84322576

HYD TUBE

Assembly, High Flow, Female

1шт.

43

84322578

FLEXIBLE HOSE,15.88mm ID x 773mm L, SAE 100R17

Assembly, High Flow, Aux

1шт.

44

84331287

SCREW,HWH, 3/8" - 16 x 3"

Tapping, 3/8-16 X 3

3шт.

45

84338474

HYD TUBE

Assembly, Case Drain

1шт.

46

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

1шт.

47

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

3/8 X 1.75

2шт.

48

84254056

HOSE CLAMP,69.2mm L

Butterfly Tube

2шт.

49

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

50

84344589

INSTRUCTION

Installation

1шт.
