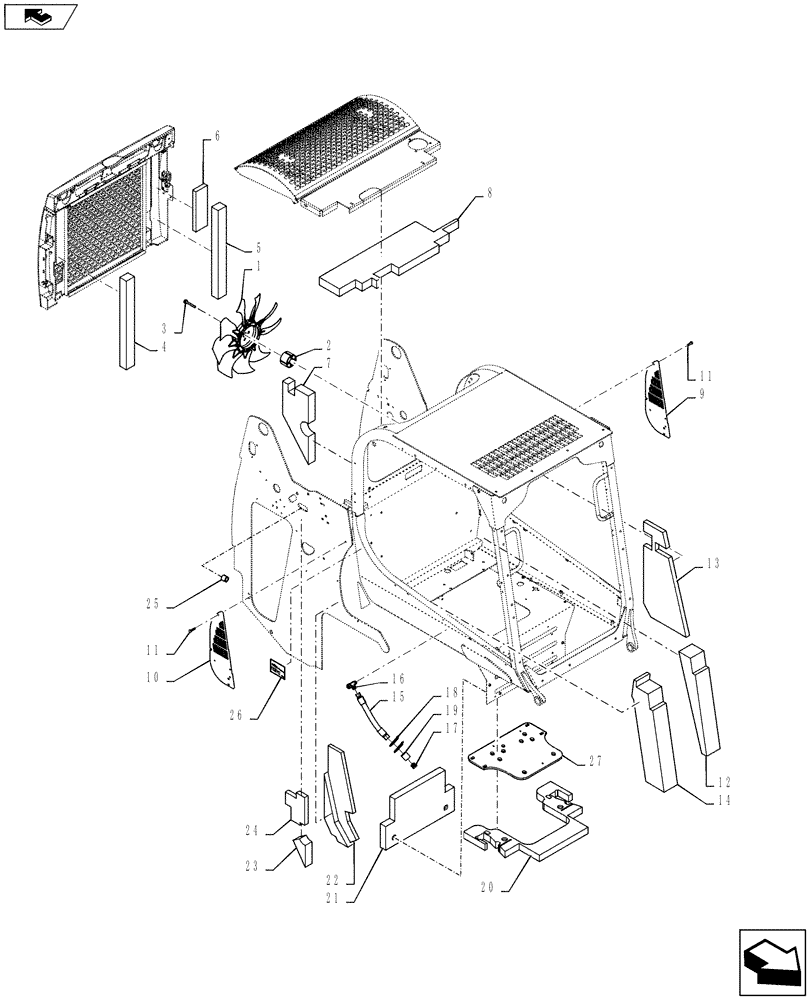

Запчасти Case TR270 (88.100.10[22]) - ENGINE ACCESSORIES EU/OPEN EU W/SOUND (TR270) (88) - ACCESSORIES

1

47488899

FAN,9 Blades, 480mm OD

Clockwise Pusher 480 (EURO)

1шт.

2

84373345

SPACER

Fan, Chart

1шт.

3

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

4шт.

4

84374184

FOAM INSULATION

Rear Door RH

1шт.

5

84374183

FOAM INSULATION

Rear Door LH

1шт.

6

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

Fan LH

1шт.

7

84374180

FOAM INSULATION

Tower LH

1шт.

8

84374182

FOAM INSULATION

Hood

1шт.

9

84383823

COVER

Chassis Vent LH

1шт.

10

84383826

COVER

Chassis Vent RH

1шт.

11

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

12

84366338

FOAM INSULATION

Left Tower Front

1шт.

13

84374181

FOAM INSULATION

Tower LH Front

1шт.

14

84374169

FOAM INSULATION

Right Tower Front

1шт.

15

87351645

HOSE ASSY.,417mm L

Resonator

1шт.

16

87622774

TEE,-12, Male 37 Degree Fl, 1 1/16"-12, Adj Str Thd OR, Br

Tee 3/4 Tube 1-1/16-12

1шт.

17

9790527

PLUG,1-5/16" - 12 JIC

1шт.

18

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Tie

2шт.

19

87595771

ISOLATOR,200mm L x 50mm W x 3.2mm Thk

Rubber

1шт.

20

84366352

FOAM INSULATION

Heal Plate Vertical

1шт.

21

84366353

FOAM INSULATION

Heal Plate Horizontal

1шт.

22

84374171

FOAM INSULATION

Tower RH

1шт.

23

84374179

FOAM INSULATION

Tower RH Lower

1шт.

24

84374178

FOAM INSULATION

Tower RH Rear

1шт.

25

87461957

STOP

Stop

1шт.

26

87611184

DECAL,LWA 103, 100mm x 110mm

LWA 103

1шт.

27

84372040

FOAM

Seat Pan; Used Only with Open Cab

1шт.

28

84471443

HOSE ASSY.,19.05mm ID x 755mm L, SAE 100R17

Valve Supply, Not Illustrated

1шт.
