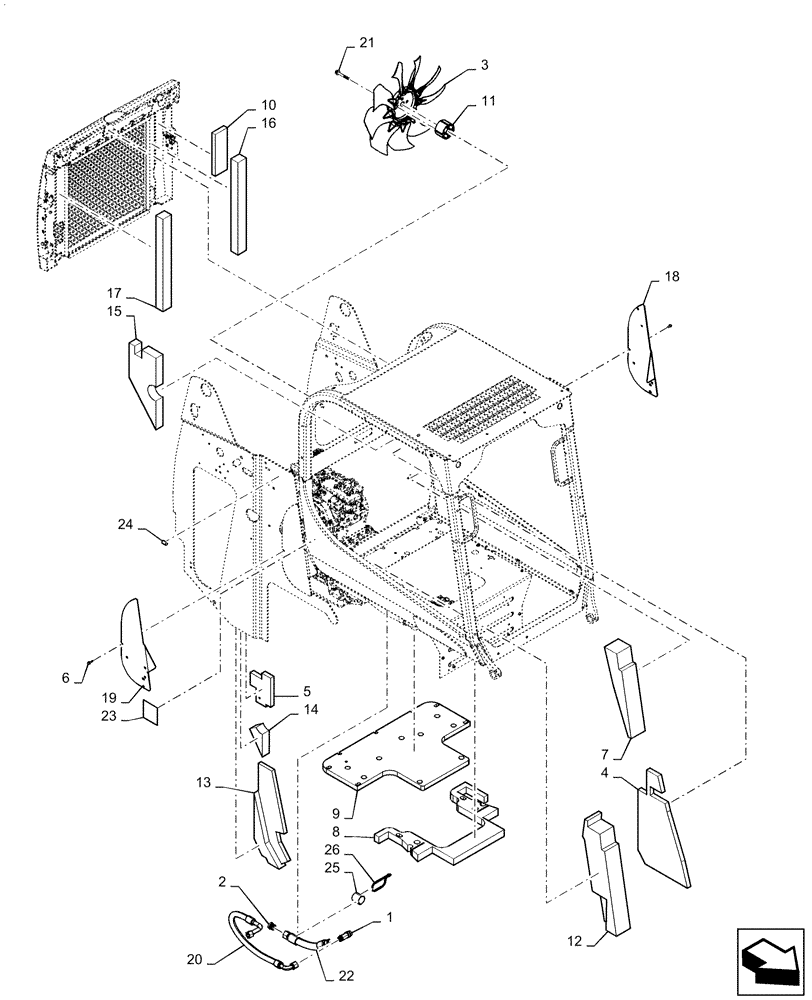

Запчасти Case TR270 (88.100.10[15]) - ENGINE ACCESSORIES EU/OPEN EU (SR200,TR270) (88) - ACCESSORIES

1

219604

TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

2

9790527

PLUG,1-5/16" - 12 JIC

1шт.

3

47488899

FAN,9 Blades, 480mm OD

Clockwise Pusher 480 EURO

1шт.

4

47638265

FOAM INSULATION

Tower, LH Front

1шт.

5

47638695

FOAM INSULATION

RH Tower Front

1шт.

6

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

7

84366338

FOAM INSULATION

LH Tower Front

1шт.

8

84366352

FOAM INSULATION

Heel Plate Vertical

1шт.

9

84372040

FOAM

Seat Pan, used only with Open Cab

1шт.

10

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

1шт.

11

84373345

SPACER

Fan

1шт.

12

84374169

FOAM INSULATION

Right Tower Front

1шт.

13

84374171

FOAM INSULATION

Tower RH

1шт.

14

84374179

FOAM INSULATION

Tower RH Lower

1шт.

15

84374180

FOAM INSULATION

Tower LH

1шт.

16

84374183

FOAM INSULATION

RR Door LH

1шт.

17

84374184

FOAM INSULATION

Rear Door RH

1шт.

17

84374184

FOAM INSULATION

RR Door RH

1шт.

18

84383823

COVER

Chassis Vent LH

1шт.

19

84383826

COVER

Chassis Vent RH

1шт.

20

84544550

HOSE ASSY.,19.05mm ID x 905mm L, SAE 100R17

Valve Supply

1шт.

21

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

4шт.

22

87351645

HOSE ASSY.,417mm L

Resonator

1шт.

23

87353967

DECAL,LWA 101DB, 100mm x 110 mm

1шт.

24

87461957

STOP

Stop

1шт.

25

87595771

ISOLATOR,200mm L x 50mm W x 3.2mm Thk

Rubber

1шт.

26

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.
