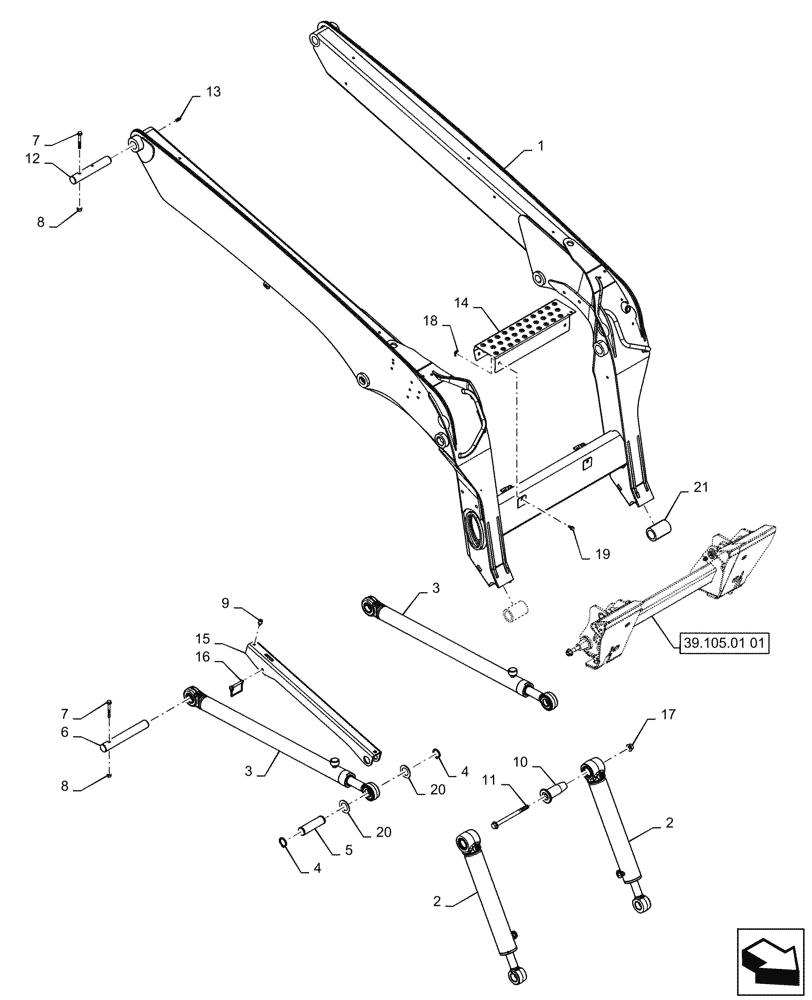

Запчасти Case TR270 (84.910.AA) - BOOM (84) - BOOMS, DIPPERS & BUCKETS

1

84279575

LOADER BOOM

Frame

1шт.

2

84290567

HYDRAULIC CYLINDER,Double Acting, 34.9mm Rod, 410mm Stroke

Bucket

2шт.

2

47364446R

HYDRAULIC CYLINDER

Reman for New PN 84290567

2шт.

2

47364446C

HYDRAULIC CYLINDER

Return Number

2шт.

3

84278608

LIFT CYLINDER,Double Acting, 44.4mm Rod, 805mm Stroke

Lift

2шт.

4

86632531

SNAP RING,#150, Ext

4шт.

5

84248603

PIN,38.15mm OD x 137.9mm L

Lift Cylinder

2шт.

6

84308025

PIN,38.15mm OD x 280mm L

Chassis to Lift Cylinder

2шт.

7

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

4шт.

8

86512554

NUT,M10 x 1.5, Cl 10

4шт.

9

85802403

PLUG,13mm OD

Pad, Loader Prop

1шт.

10

84319704

PIN,50mm OD x 111mm L

Boom to Tip Cylinder

2шт.

10

47489943

PIN,44.45mm OD x 118.5mm L

Boom to Tip Cylinder, Start Year: 31-JUL-13

2шт.

11

84238749

BOLT,Hex Flg, M16 x 210mm, Cl 10.9

2шт.

12

84341462

PIN,38.15mm OD x 233.5mm L

Boom Chassis, Start Year: 31-JUL-13

2шт.

13

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

14

84346854

STEP

Loader

1шт.

15

84255103

STRUT

Channel Safety Red

1шт.

16

84467349

PIN,9.53mm OD x 76.2mm L

Snapper

1шт.

17

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

18

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

19

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

20

86632586

WASHER,1.53" ID x 2.5" OD x 0.11" Thk

14шт.

21

84577922

HUB,63.4mm OD x 96.2mm L

Main Frame

2шт.
