Запчасти Case TR270 (82.300.AN[06]) - BUCKET, BOLT ON CUTTING EDGE (B.O.C.E.) (ALL CASE) (82) - FRONT LOADER & BUCKET

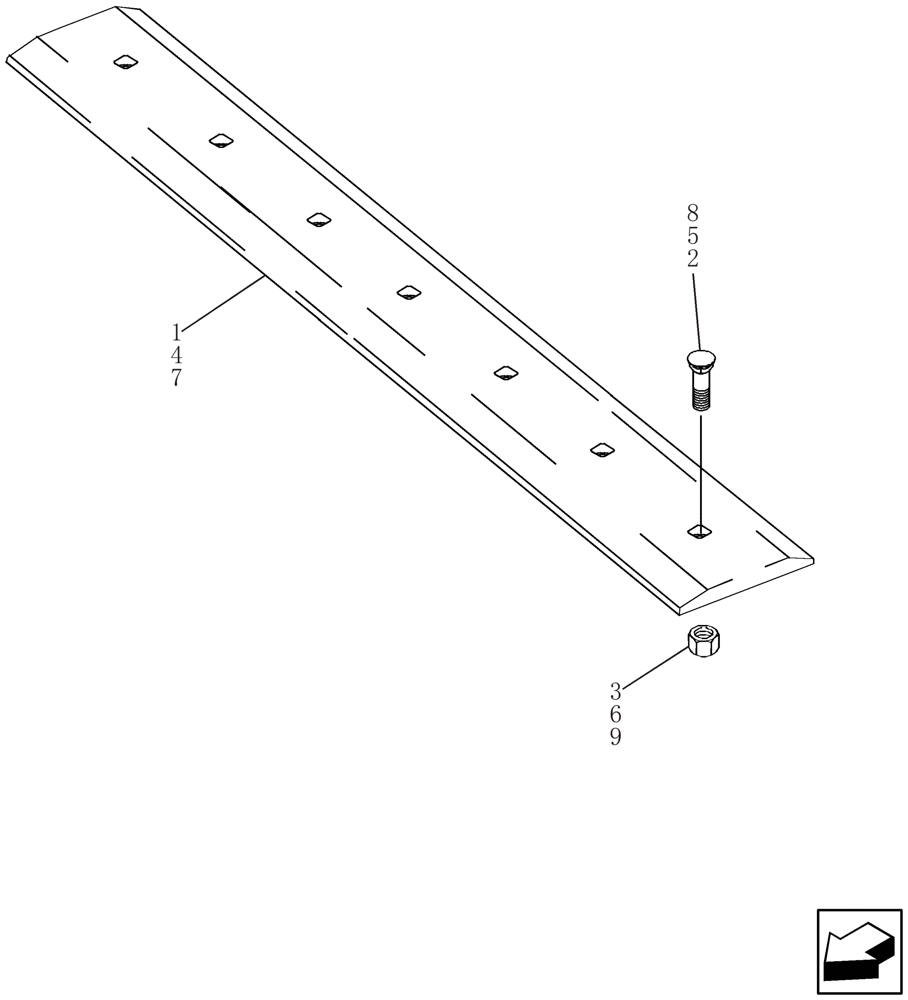

Схема запчастей Case TR270 - (82.300.AN[06]) - BUCKET, BOLT ON CUTTING EDGE (B.O.C.E.) (ALL CASE) (82) - FRONT LOADER & BUCKET
6
8
4
7
2
1
5
9
3

Артикул

Название

Примечание

Количество

1

86576801

CUTTING EDGE,Bolt On, Double Edged, 7 Hole, 152.4mm W x 1368.4mm L

54 in; Bolt-on; 6 Hole

1шт.

430497A1

EDGE, CUTTING

Kit; 60 Inch; Incl. Ref 1 - 3; Order Components

1шт.

1

86576801

CUTTING EDGE,Bolt On, Double Edged, 7 Hole, 152.4mm W x 1368.4mm L

54 in; Bolt-on; 7 Hole

1шт.

1

87454489

CUTTING EDGE

1524 mm (60 inch); Power Tan

1шт.

1

86577165

CUTTING EDGE,Bolt On, Double Edged, 7 Hole, 203.2mm W x 1520.8mm L

1524 mm (60 inch); Gray

1шт.

2

86548338

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5

7шт.

3

425-1010

NUT,5/8"-11, G5

7шт.

430498A1

EDGE, CUTTING

Kit; 66 Inch; Incl. Ref 4 - 6; Order Components

1шт.

4

87454483

CUTTING EDGE

1676 mm (66 inch); Power Tan

1шт.

4

86577167

CUTTING EDGE,Bolt On, Double Edged, 7 Hole, 203.2mm W x 1673.2mm L

1676 mm (66 inch); Gray

1шт.

5

86548338

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5

7шт.

6

425-1010

NUT,5/8"-11, G5

7шт.

430499A1

EDGE, CUTTING

Kit; 72 Inch; Incl. Ref 7 - 9; Order Components

1шт.

7

87454488

CUTTING EDGE,Bolt On, Double Edged, 7 Hole, 203.2mm W x 1825.6mm L

1829 mm (72 inch); Power Tan

1шт.

7

86577169

CUTTING EDGE,Bolt On, Double Edged, 7 Hole, 203.2mm W x 1825.6mm L

1829 mm (72 inch); Gray

1шт.

8

86548338

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5

7шт.

9

425-1010

NUT,5/8"-11, G5

7шт.

434817A1

EDGE, CUTTING

Kit; 78 Inch; Incl. Ref 7 - 9; Order Components

1шт.

7

86577171

CUTTING EDGE,78", Gray

1981 mm (78 inch); Gray

1шт.

8

86548338

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5

9шт.

9

425-1010

NUT,5/8"-11, G5

9шт.

430500A1

EDGE, CUTTING

Kit; 84 Inch; Incl. Ref 7 - 9; Order Components

1шт.

7

86577173

CUTTING EDGE,Bolt On, 9 Hole, 203.2mm W x 2168.5mm L

2134 mm (84 inch); Gray

1шт.

8

86548338

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5

7шт.

9

280374

NUT,Hex, 5/8" - 11, Gr 5

7шт.

Выбрано товаров: 25
