Запчасти Case 450CT (02-17) - OIL PUMP, PAN (02) - ENGINE

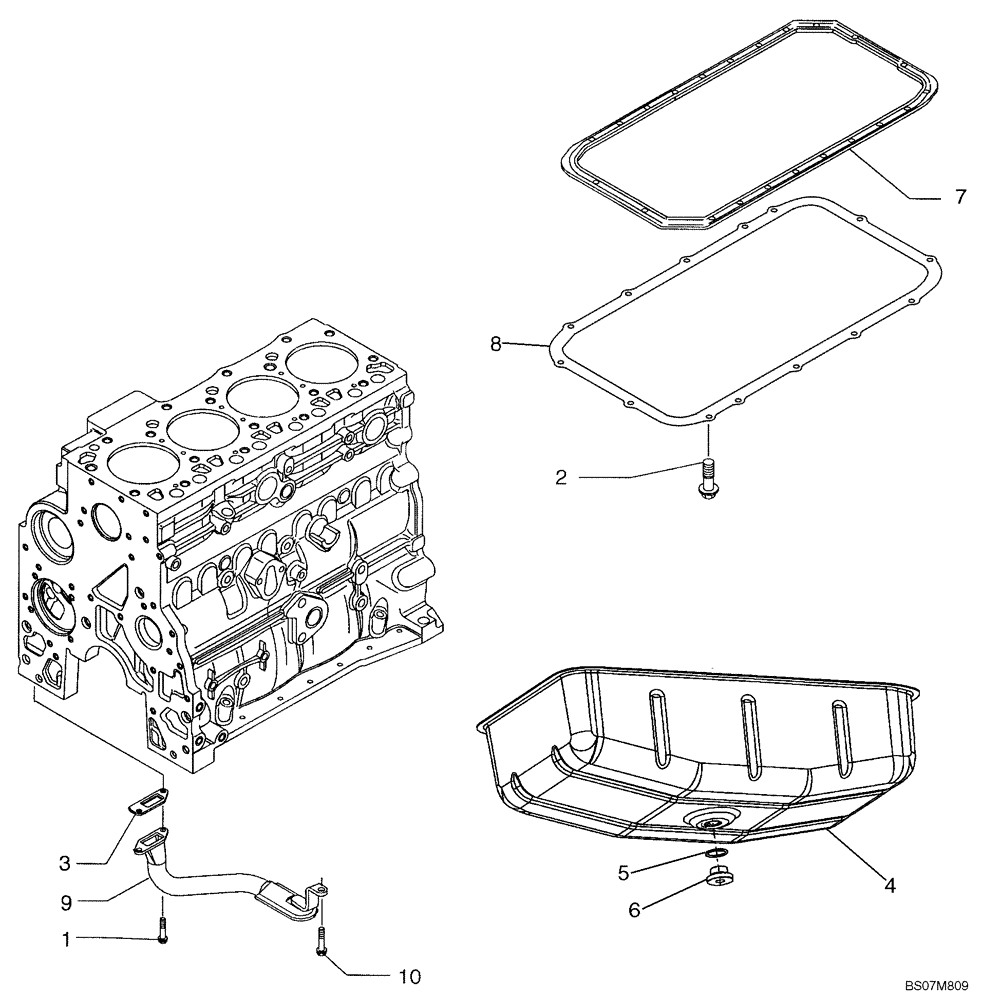

Схема запчастей Case 450CT - (02-17) - OIL PUMP, PAN (02) - ENGINE
9
6
1
8
4
3
2
7
10
5

Артикул

Название

Примечание

Количество

1

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

14шт.

3

4898301

GASKET,0.42mm Thk

1шт.

4

2853047

ENGINE OIL PAN

Oil Pan

1шт.

5

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

1шт.

6

4894139

PLUG,Hex Soc, M22 x 1.5

Does Not Include Seal, Purchase Seal Separately

1шт.

7

4897877

OIL PAN GASKET SET

1шт.

8

4897876

SPACER

1шт.

9

2853050

PIPE

Oil Suction; Includes Screen Which Is Not Serviced Separately

1шт.

10

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

1шт.

Выбрано товаров: 10
