Запчасти Case 450CT (10-01) - KIT, HL CAB SEALING (09) - CHASSIS

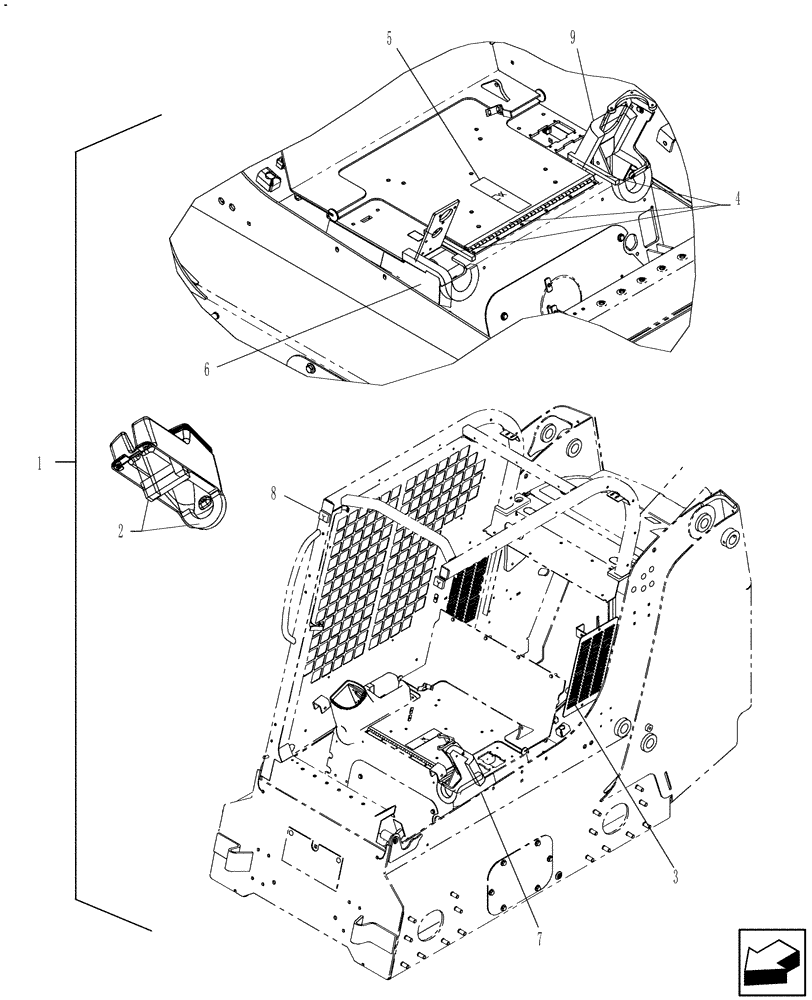

Схема запчастей Case 450CT - (10-01) - KIT, HL CAB SEALING (09) - CHASSIS
5
4
3
9
2
8
7
6
1

Артикул

Название

Примечание

Количество

1

84228461

SEAL KIT

HL Cab Sealing, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

84290431

FOAM INSULATION

1" x 1"

4/ARшт.

Cut to Length Required

1шт.

3

84192596

ACCESS COVER

Vented

2шт.

4

84290433

FOAM INSULATION

1/2" x 1/2"

3/ARшт.

Cut to Length Required

1шт.

5

84201814

DECAL

Seat Harness

2шт.

6

84226693

DECAL

Console, RH

1шт.

7

84226694

DECAL

Console, LH

1шт.

8

87729517

SEALING STRIP

2шт.

9

84192592

FOAM INSULATION

Console Rear

1шт.

Выбрано товаров: 12
