Запчасти Case 450CT (09-59) - NOISE CONTROL (NA) (09) - CHASSIS

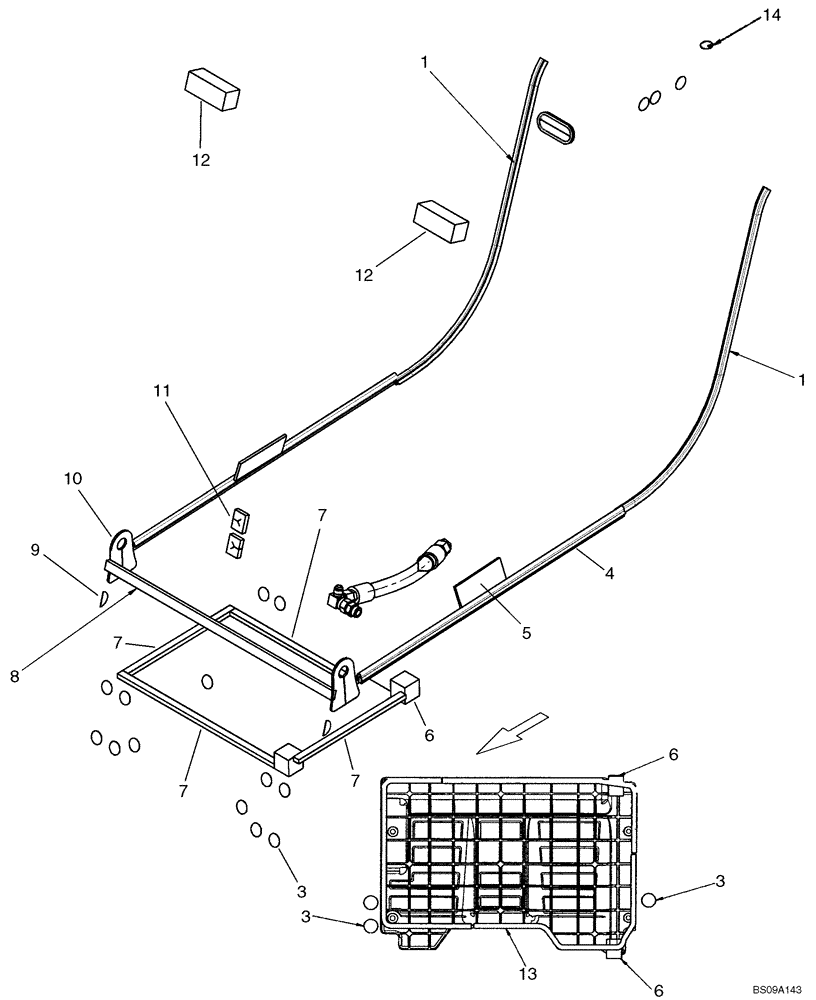

Схема запчастей Case 450CT - (09-59) - NOISE CONTROL (NA) (09) - CHASSIS
12
7
6
5
3
7
6
6
1
13
12
1
8
10
7
9
11
14
3
3
7
4

Артикул

Название

Примечание

Количество

1

87730599

SEALING STRIP,976.7mm L

Flapper

2шт.

2

87713678

GROMMET

If Used

1шт.

3

299274A2

COVER,35mm OD

16-17шт.

4

87730605

SEAL

ROPS Joggle; If Used

2шт.

5

87729519

SEAL

Foam, Side Consoles; If Used

2шт.

5

87704179

FOAM

Foam, Side Consoles

2шт.

6

87729520

SEAL

Foam, Crushable Foot Plate

2шт.

7

291308

SEALING STRIP,0.75" W x 0.5" Thick

If Used

1шт.

8

87036372

SEALING STRIP

Lower Front ROPS

1-3шт.

9

394748A1

INSULATION

2шт.

10

295076A1

SEAL

ROPS Pivot Pin

2шт.

11

87729517

SEALING STRIP

Foam, Auxiliary And Throttle

2шт.

12

87729516

FOAM INSULATION

Foam, Crushable

2шт.

13

381176A2

SEALING STRIP,12.7mm W x 844mm L x 6.35mm Thk

Breast Plate

3шт.

14

414635A1

COVER,25.4mm OD x 0.51mm Thk

25.4 mm

4шт.

Выбрано товаров: 15
