Запчасти Case 450CT (09-34) - SEAT MOUNTING - STANDARD SEAT (09) - CHASSIS

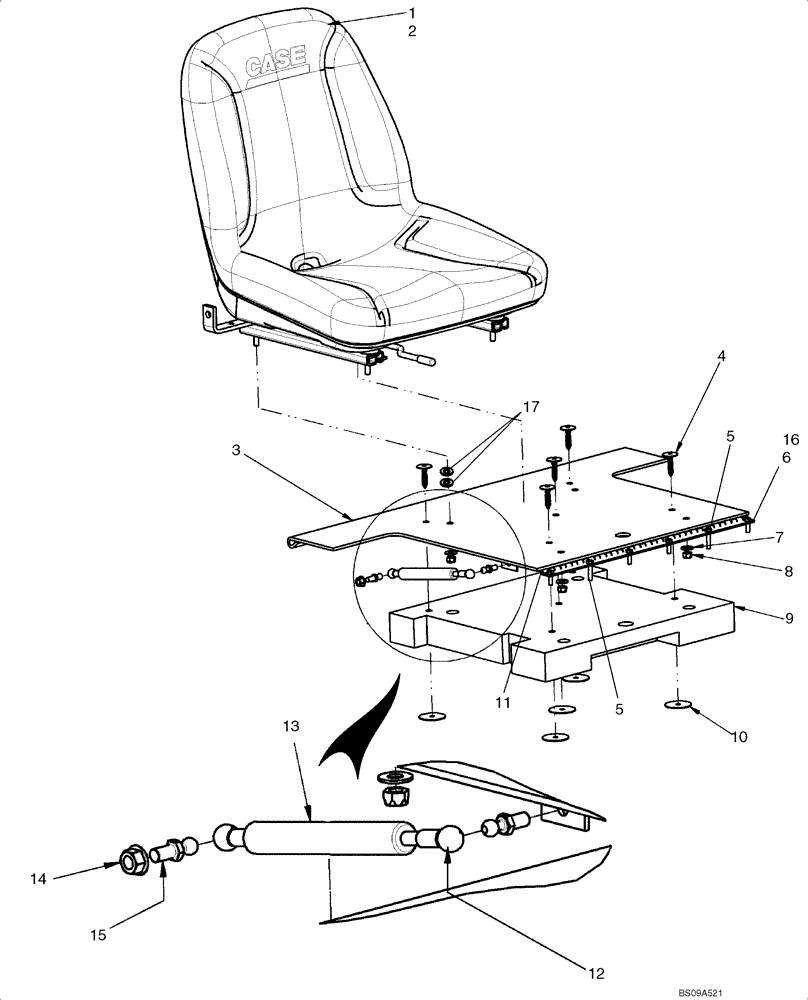

Схема запчастей Case 450CT - (09-34) - SEAT MOUNTING - STANDARD SEAT (09) - CHASSIS
15
14
16
6
13
17
2
3
4
5
12
11
8
5
7
9
1
10

Артикул

Название

Примечание

Количество

1

87702543

SEAT

Standard Seat, Mid-Back; See Figure 09-34A

1шт.

2

REF

INSTRUCTION

Operator Presence Switch, See Figure 09-34A

1шт.

3

87676113

PLATE

Seat Hinge Plate

1шт.

4

348452A1

FASTENER,Push-In, 37mm L, Nylon

Push In Fastener

5шт.

5

80120101

BOLT

M6 x 30, 8.8 ZND; If Used

2шт.

6

120100

BOLT,M6 x 20mm, Cl 8.8

If Used

4шт.

7

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

8

86629544

NUT,5/16” – 18, GR B

4шт.

9

87676116

FOAM INSULATION

Pad, Seat Noise Control

1шт.

10

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

5шт.

11

87676121

STIFFENER

Seat Hinge Stiffener

1шт.

12

254307A1

CLIP

If Used

2шт.

13

189787A2

SHOCK ABSORBER

1шт.

14

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

15

189609A1

BALL STUD,M8 x 1.25

Metric Ball Stud, 10mm Ball x M8 X 1.25 Thd

2шт.

16

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4-6шт.

17

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

8шт.

Выбрано товаров: 17
