Запчасти Case 450CT (02-06) - ENGINE - MOUNTING (02) - ENGINE

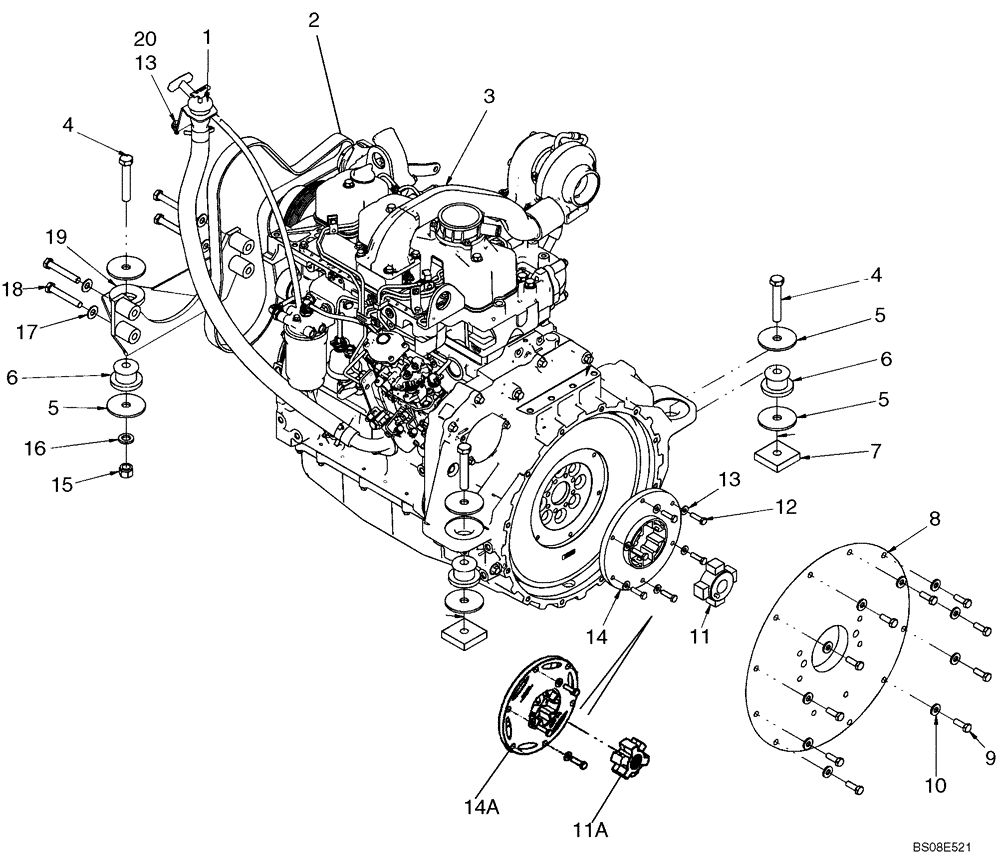

Схема запчастей Case 450CT - (02-06) - ENGINE - MOUNTING (02) - ENGINE
20
17
6
14a
11a
14
5
6
10
7
13
9
11
3
18
5
4
19
13
5
16
2
4
8
15
1
12

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Remote Oil Fill And Dipstick; See Fig 02-07

1шт.

2

87681147

V-BELT,27.92mm W x 1505mm L, 8 Ribs

27.92 mm Width

1шт.

3

84149878

ENGINE

NEF 67kw; Incl Parts on Figures 02-29 - 02-40, 03-03 - 03-10, 04-02; Replaces Engine 87384640

1шт.

84149878ER

REMAN-REPLACEMENT EN

450 PIN N7M464019 & Aft., 450CT Series 3 ASN N7M464019, 4 Cyl., Tier 3

1шт.

84149878EPAC

CORE-EPA ENGINE

Return Number

1шт.

84149878R

EXCHANGE ENGINE

450 SSL PIN N7M464019 & Aft., 450CT Series 3 ASN N7M464019, 4 Cyl.,Tier 3

1шт.

84149878C

CORE-ENGINE

Return Number

1шт.

84131042

SHORT ENGINE

Short Block; Includes Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, Camshaft

1шт.

3

84131042ER

REMAN-SHORT ENGINE

450 P.I.N. N7M464019 & Aft.(1/08 - 3/11), 450CT ASN N7M464019 Series 3 (1/08-3/11) Both w/NEF 4 Cyl. 2 Valve Tier 3 Engine

1шт.

3

84131042EPAC

CORE-EPA ENGINE

Return Number

1шт.

84131042R

REMAN-SHORT ENGINE

450 - SKID STEER, TIER 3, P.I.N. N7M464019 & AFTER & 450CT - COMPACT TRACK LOADER - SERIES 3 ASN N7M464019 all (1/08-3/11)

1шт.

84131042C

CORE-ENGINE

Return Number

1шт.

4

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

3шт.

5

87687021

WASHER,17.3mm ID x 70mm OD x 4.5mm Thk

Washer

6шт.

6

A140221

MOUNTING PARTS

Engine Mount

3шт.

7

390350A1

PLATE

2шт.

8

87547003

PLATE

Pump Mounting Plate

1шт.

9

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

10шт.

10

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

10шт.

11

87024588

HUB

Pump Drive Hub, 4 Point Drive

1шт.

11a

87711337

COUPLING,19T, 1-1/8" ID

Pump Drive Hub, 6 Point Drive; Replaces 87024588

1шт.

12

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

14

87024539

ELEMENT

Pump Drive Element, 4 Point Drive

1шт.

14a

87692685

FLEXIBLE COUPLING,215.9mm OD

Pump Drive Element, 6 Point Drive; Replaces 87024539

1шт.

15

412066

NUT,M16 x 2.0, Cl 8

1шт.

16

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

17

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

18

412085

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

19

87041763

ENGINE MOUNT

Rear Engine Mount

1шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

Выбрано товаров: 31
