Запчасти Case 450CT (09-03) - FRAME, REAR - LOADER LINKAGE (09) - CHASSIS

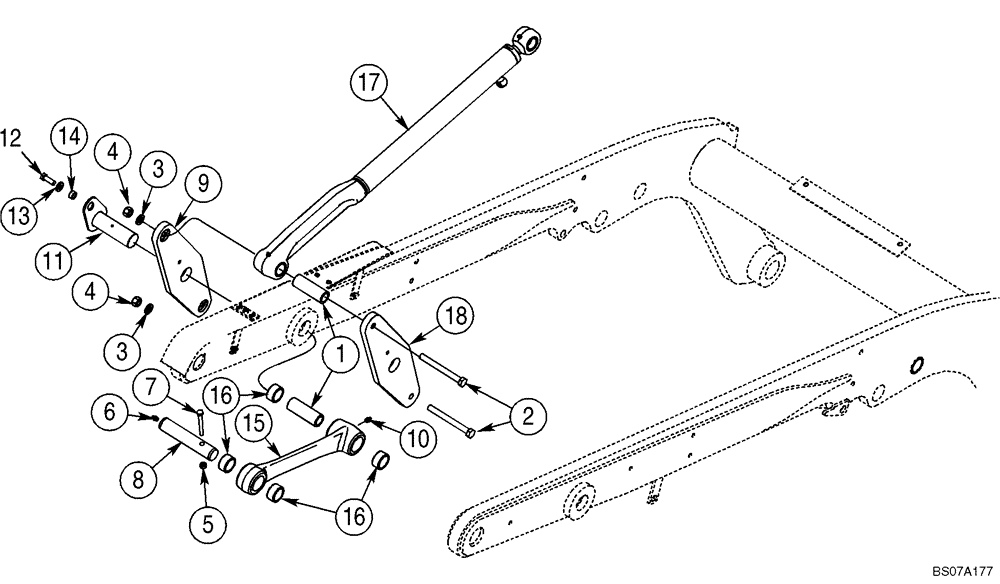

Схема запчастей Case 450CT - (09-03) - FRAME, REAR - LOADER LINKAGE (09) - CHASSIS
3
3
10
16
13
1
16
1
5
9
4
12
7
8
14
15
17
18
1
6
2

Артикул

Название

Примечание

Количество

1

187208A1

PIN,38mm OD x 105.5mm L

Left Hand

4шт.

2

87564737

BOLT

Bolt, Plow 5/8"-11 X 6.00 Gr 5

4шт.

2

827-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

4шт.

3

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

4

85700693

NUT,5/8" - 11, Gr C

4шт.

4

86512555

NUT,M16 x 2, Cl 10

No Longer Used, Order 85700693; Replaces 832-41416

4шт.

5

86512554

NUT,M10 x 1.5, Cl 10

Replaces 832-41410

8шт.

6

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

Replaces 219-1

8шт.

7

120074

BOLT,Hex, M10 x 90, 8.8

Replaces 814-10090

6шт.

8

188255A2

PIN,38mm OD x 192mm L

2шт.

9

243424A1

ROD, CONNECTING

4-2шт.

10

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

10

219-86

LUBE NIPPLE,1/8" NPTF

No Longer Used, Order 80714

2шт.

11

187041A2

PIN

875 mm Slot

2шт.

12

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

Replaces 627-12035

2шт.

13

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

14

87302487

SPACER,13.8mm ID x 21.3mm OD x 10.3mm L

2шт.

15

229843A2

ROD, CONNECTING

Incl. 16

2шт.

16

141006A1

BUSHING,38.15mm ID x 48mm OD x 23.5mm L

4шт.

17

327411A1

HYDRAULIC CYLINDER,38.1mm Rod, 590mm Stroke

Bucket; See Figures 08-11

2шт.

327411A1R

REMAN-HYD CYLINDER

450CT ASN N7M464019, 450 TIER 3, P.I.N. N7M464019 & AFTER Both(1/08 - 3/11)

2шт.

327411A1C

CORE-HYD CYLINDER

Return Number

1шт.

18

87557375

LINK

2шт.
