Запчасти Case 450CT (08-12) - CYLINDER - LOADER LIFT (08) - HYDRAULICS

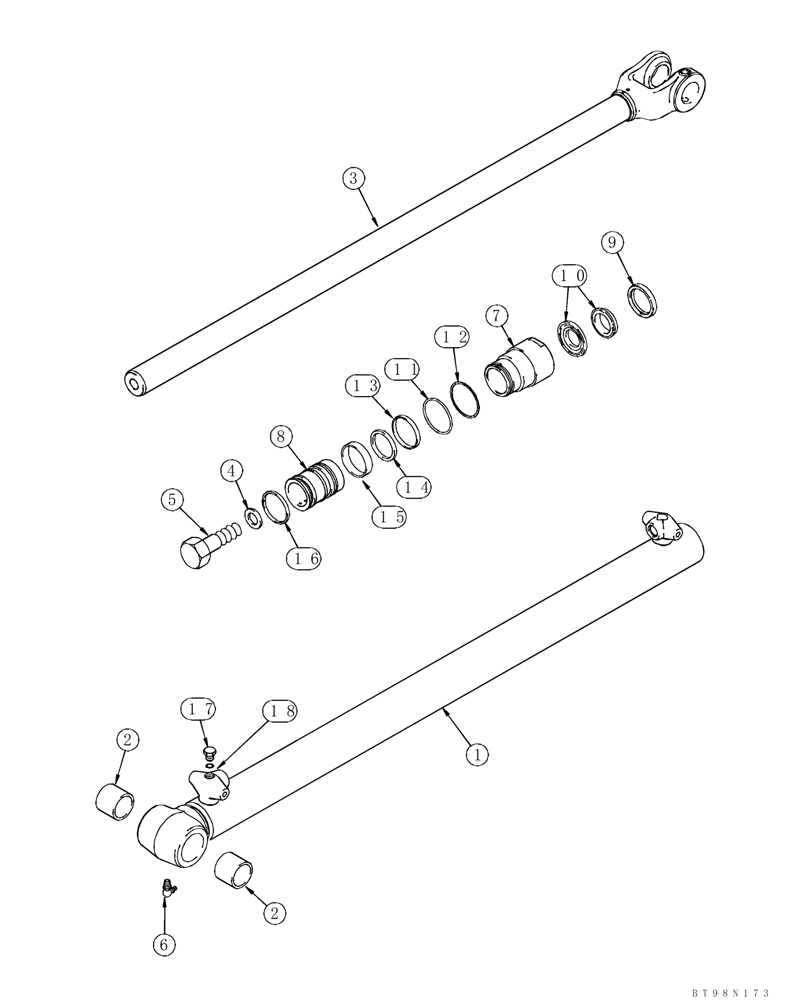

Схема запчастей Case 450CT - (08-12) - CYLINDER - LOADER LIFT (08) - HYDRAULICS
13
9
7
bt98n173
8
4
1
3
6
12
11
15
2
5
17
14
2
18
10
16

Артикул

Название

Примечание

Количество

308258A2

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 970mm Stroke

57 ID x 970 mm strk; Loader Lift; Inc. 1 - 18

2шт.

308258A2R

REMAN-HYD CYLINDER

450 TIER 3 P.I.N. N7M464019 & AFTER, 450CT SERIES 3 ASN N7M464019 both (1/08-3/11)

2шт.

308258A2C

REMAN-HYD CYLINDER

Return Number

2шт.

1

308259A1

CYLINDER ASSY.

Incl. 2

1шт.

2

293052A1

RING,38.19mm ID x 47.62mm OD x 41.5mm L

2шт.

3

329826A1

STEM

45 mm OD

1шт.

4

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

5

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

7

279216A2

GLAND

1шт.

8

191074A1

JACK PISTON

1шт.

231726A3

SEAL KIT

Incl. 9 - 16

1шт.

9

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

8

1542875C1

SEAL KIT,44.4mm Rod

Not Serviced Separately; Rod and Buffer Seal; Order 198376A2

1шт.

11

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

12

189122A1

BACK-UP RING

1шт.

13

190853A1

SEAL,51.71mm ID x 58.05mm OD x 3.17mm Thk

Piston

1шт.

14

190854A1

SEALING RING

SEALRING Loader

1шт.

15

190855A1

RING

1шт.

16

191190A1

RING

Cast Iron

1шт.

17

9625178

PLUG,9/16" - 18 ORB

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 22
