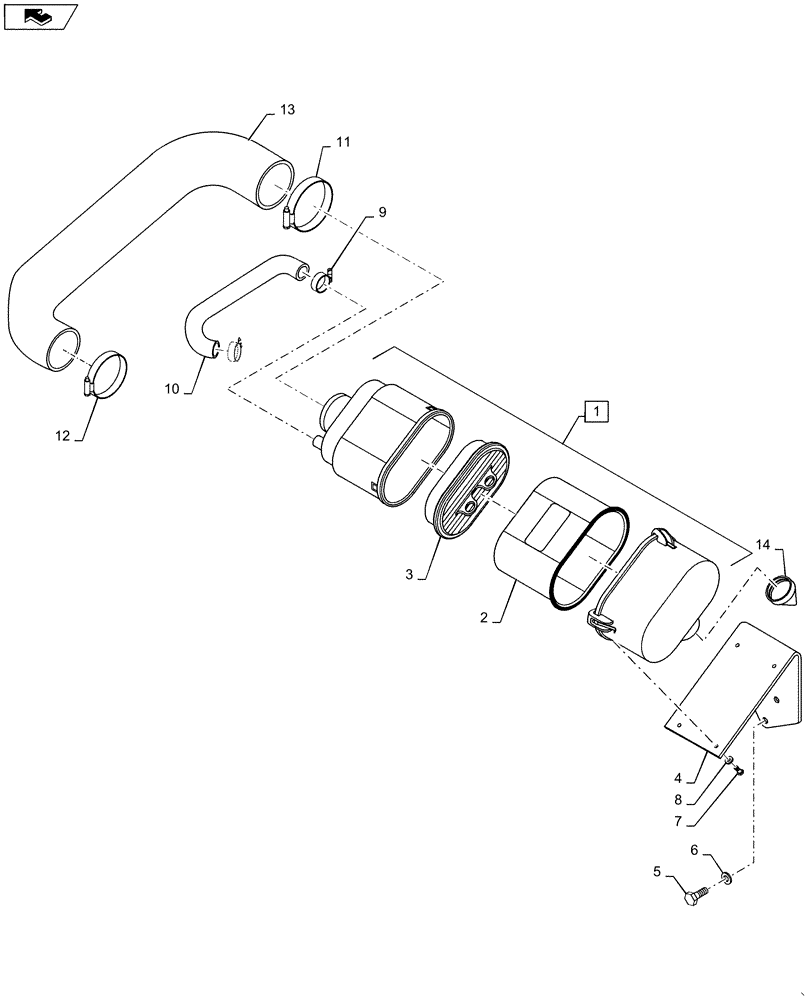

Запчасти Case 450CT (02-04) - ENGINE - AIR CLEANER (02) - ENGINE

1

87041075

AIR CLEANER

Incl. 2, 3

1шт.

2

87037984

ELEMENT

Powercore

1шт.

3

87037985

ELEMENT

1шт.

4

87386479

BRACKET

Bracket

1шт.

5

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

3шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

7

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

8

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

4шт.

9

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.

10

87352018

HOSE,22.20 mm ID x 237.80 mm SAE 30R2 TYPE 1

1шт.

11

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

1шт.

12

86625033

HOSE CLAMP,77.7mm - 101.6mm, Worm Gear

1шт.

13

87351999

INTAKE AIR HOSE,76.20 mm ID, 88.90 mm ID x 523.10, SAE J20R4

Air Cleaner

1шт.

14

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

2.24" OD

1шт.
