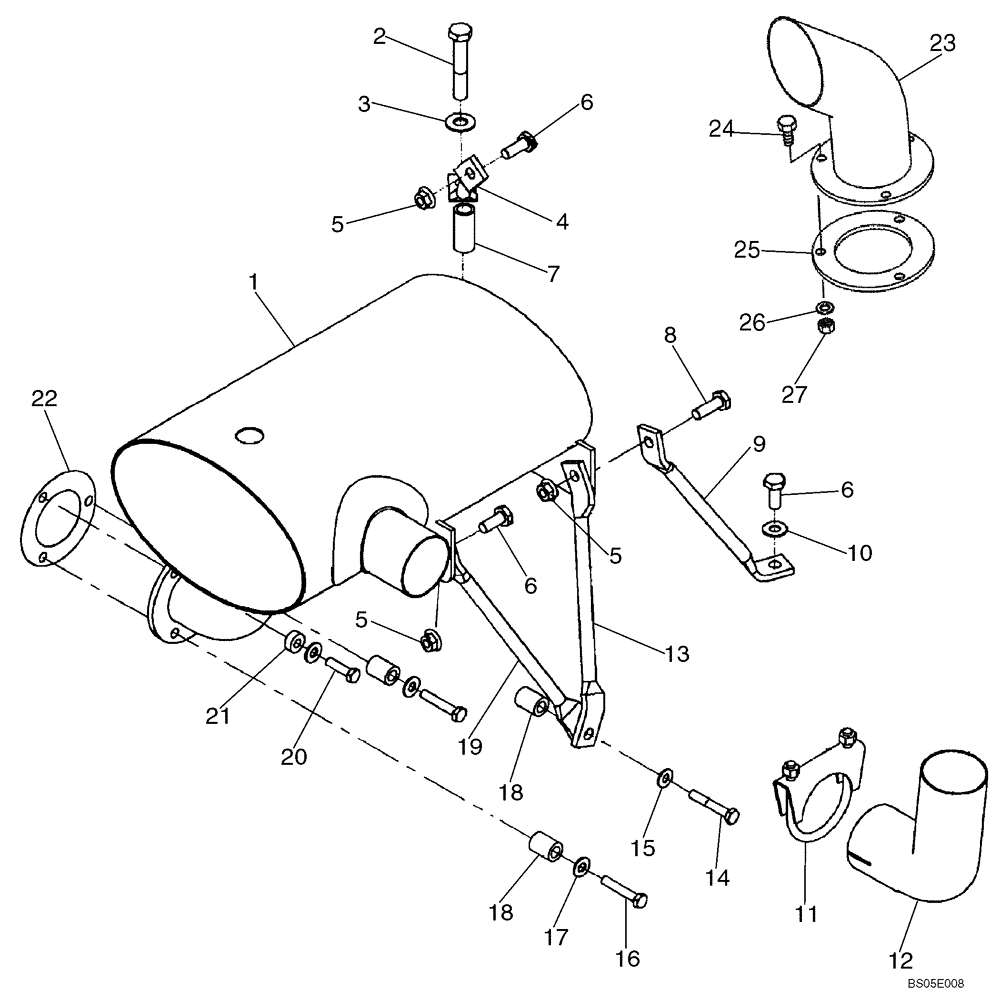

Запчасти Case 450CT (02-03) - EXHAUST SYSTEM (02) - ENGINE

1

87035578

MUFFLER

Muffler; Replaces 87572831

1шт.

1

87490249

MUFFLER

Muffler; Replaces 87035578

1шт.

2

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

3

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

4

87034631

ROD

Muffler Support

1шт.

5

411345A1

LOCK NUT

M10

3шт.

6

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

7

86608204

SPACER

1шт.

8

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

9

87034630

ROD

Muffler Support

1шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

11

87461995

CLAMP,68mm ID, Muffler

Muffler

1шт.

12

87040074

EXHAUST SYSTEM PIPE,64.26 mm ID x 134.3, 154.4 mm L

Tail Pipe

1шт.

13

87633980

ROD

Muffler Support

1шт.

14

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

16

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

17

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

18

256690A1

SPACER

3шт.

19

87633979

ROD

Muffler Support

1шт.

20

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

21

87606607

SPACER,8.73mm ID x 20.05mm OD x 7.9mm L

Muffler Spacer, Auto Coat; Replaces 86633393

1шт.

22

86606073

GASKET,0.4mm Thk

1шт.

23

87381264

TUBE,88.9 mm OD x 268, 63.5 mm L

Exhaust Extension; 268 mm (10.55 in) Tall; If Used

1шт.

23

87725355

EXHAUST SYSTEM PIPE

Exhaust Extension; 243 mm (9.57 in) Tall; If Used

1шт.

24

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

25

247026A1

LARGE PLATE

PLATE, LARGE Exhaust Doubler

1шт.

26

14048221

NUT,M8 x 1.25, Cl 10

3шт.

27

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

87584781

MUFFLER

Muffler Wrap; European Models; Attaches With (9) 87393399 Twist Ties

1шт.

87393399

SPRING

9шт.
