Запчасти Case 450CT (08-02) - HYDRAULICS - LOADER BUCKET (08) - HYDRAULICS

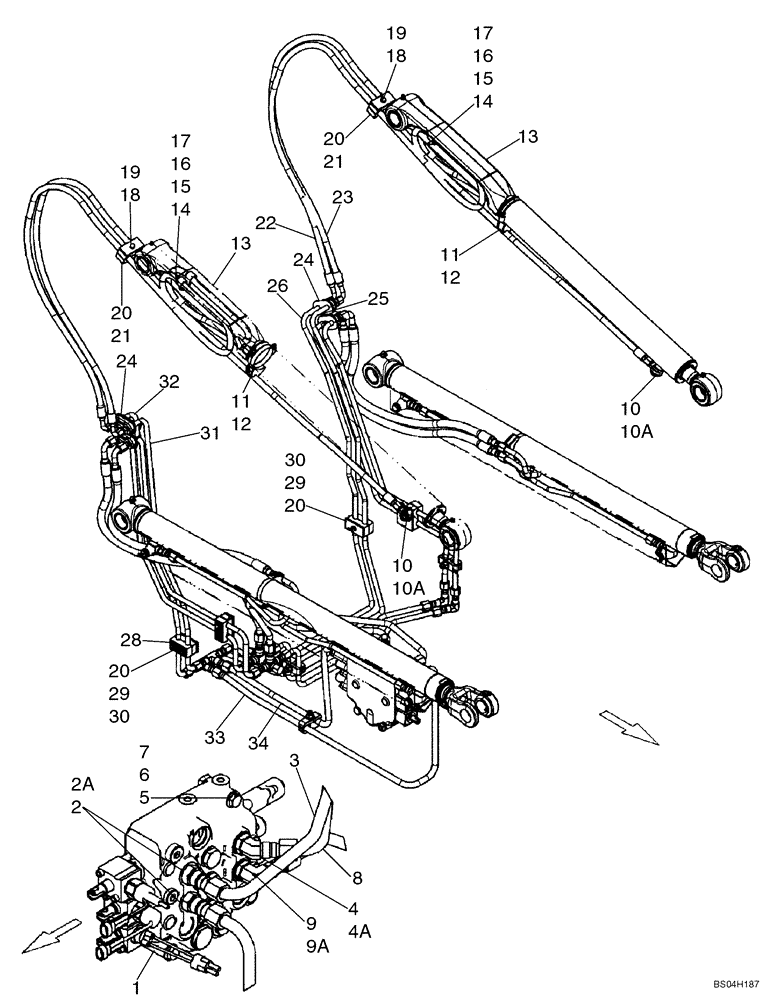

Схема запчастей Case 450CT - (08-02) - HYDRAULICS - LOADER BUCKET (08) - HYDRAULICS
4a
2
11
15
3
32
13
8
21
22
17
9a
17
20
24
20
18
14
16
18
33
13
16
29
5
31
21
34
7
25
24
12
10a
20
20
30
14
19
15
6
10
4
30
29
19
11
9
10a
12
2a
28
10
26
23

Артикул

Название

Примечание

Количество

1

87583285

VALVE

Models With Hydraulic Attachment; See Fig 08-17

1шт.

1

87546974

HYDRAULIC VALVE

Models With Pilot Control; See Fig 08-18

1шт.

2

325059

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. 2A

2шт.

2a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

87431363

HYD TUBE,15.9 mm OD

Valve Lift, Lower

1шт.

4

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

Incl. 4A

1шт.

4a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

6

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

7

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

Square, M10 x 1.5

2шт.

8

87442096

HYD TUBE,15.9 mm OD

Valve Lift, Raise

1шт.

9

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl. 9A

1шт.

9a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 10A

1шт.

10a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

87581635

SADDLE

2шт.

12

86633353

HOSE CLAMP,70mm - 92mm

2шт.

13

327411A1

HYDRAULIC CYLINDER,38.1mm Rod, 590mm Stroke

Tip, 63.5 Dia Cylinder 38.1 Dia Rod; See Figure 08-11

2шт.

327411A1R

REMAN-HYD CYLINDER

450CT ASN N7M464019, 450 TIER 3, P.I.N. N7M464019 & AFTER Both(1/08 - 3/11)

2шт.

327411A1C

CORE-HYD CYLINDER

Return Number

1шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

15

9628098

NUT,M8 x 1.25, Cl 10

2шт.

16

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

17

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

18

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

19

293891A1

SPACER

1/4 x 33

2шт.

20

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER Clamp Top

4шт.

21

257857A1

CLAMP

2шт.

22

87431366

HOSE ASSY.,9.53mm ID x 3005mm L

Tip Cylinder Base End

2шт.

23

87431367

HOSE ASSY.,9.53mm ID x 2400mm L

Tip Cylinder Base End

2шт.

24

376523A2

SUPPORT,1/2"

4шт.

25

87431360

HYD TUBE,12.7 mm OD x 669.5, 593 mm L

Left Hand Tip, Dump

1шт.

26

87431361

HYD TUBE,12.7 mm OD x 712.2, 669.5 mm L

Left Hand Tip, Curl

1шт.

27

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 27A

1шт.

27a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

28

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

29

257919A1

CLAMP BRACKET

2шт.

30

259905A1

SPACER

1/4 x 31.25

2шт.

31

87431358

HYD TUBE,12.7 mm OD

Right Hand Tip, Dump

1шт.

32

87431359

HYD TUBE,12.7 mm OD

Right Hand Tip, Curl

1шт.

33

87349764

TUBE,15.90 mm OD

Valve Tip, Curl

1шт.

34

87350369

TUBE,15.90 mm OD

Valve Tip, Dump

1шт.

Выбрано товаров: 42
