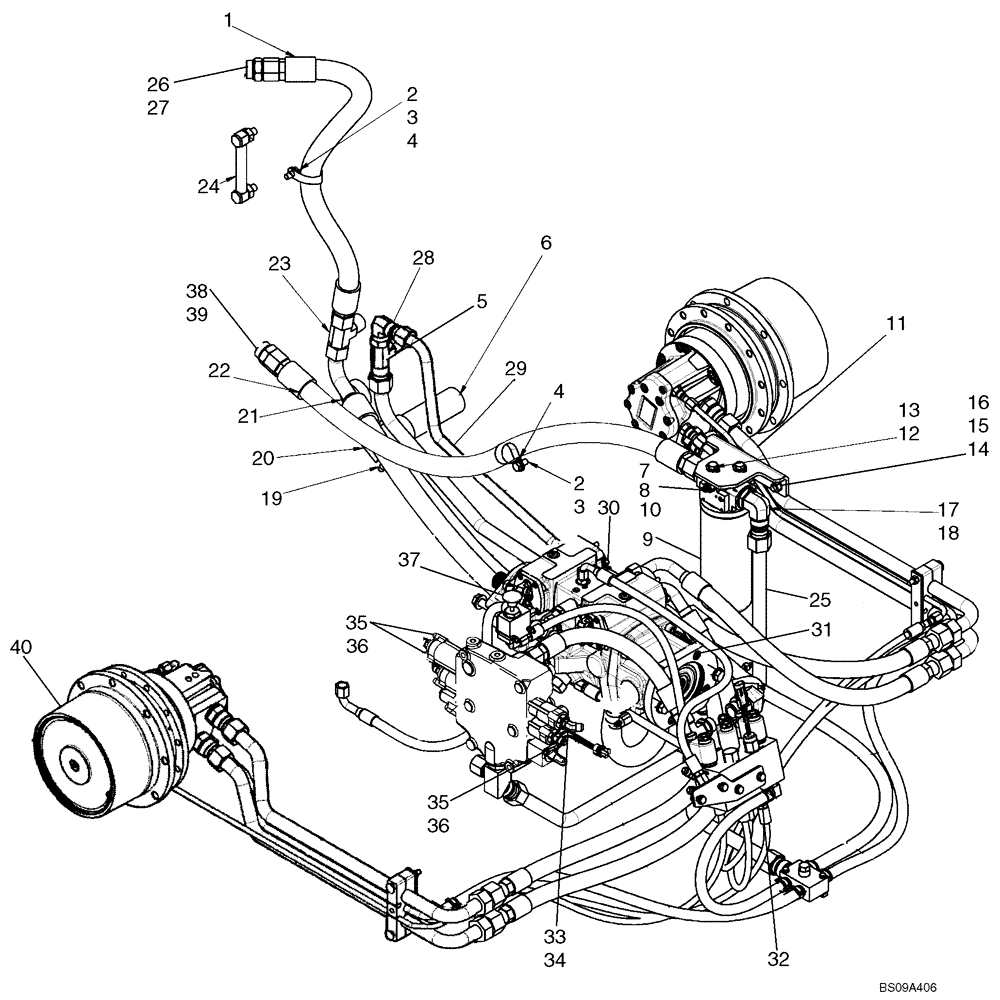

Запчасти Case 450CT (06-12) - HYDROSTATICS - SUPPLY AND RETURN (450CT) (06) - POWER TRAIN

1

87659238

HOSE

Hose, Oil Cooler Return, 825mm (32 1/2 in.)

1шт.

2

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1-2шт.

4

87648719

CLAMP,36.5mm, Coat, 10.3mm Bolt Hole, P Type

Clamp, Insulated

1-2шт.

5

9615396

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

If Used

1шт.

5

87690479

TEE

Male BR 37Fl 1.0 x .75 x .75 NPTF

1шт.

6

189310A1

STRAINER ASSY.

Suction Line Filter

1шт.

7

87430661

FILTER

Incl 8 - 10

1шт.

8

N13268

PRESSURE SWITCH

1шт.

9

87010593

ELEMENT

Filter

1шт.

10

87439984

FILTER HEAD

Head Assembly

1шт.

11

87707681

ANGLE

Filter Mounting Bracket; Replaces 87458340

1шт.

12

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

13

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

2шт.

14

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

15

100016

NUT,M10 x 1.5, Cl 8

2шт.

16

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

17

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 18

1шт.

18

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

87039085

HOSE CLAMP,32mm - 54mm

1шт.

20

87029969

HYD CONNECTOR

Stem 90 Bead Hose 1.25 ID X 1.25 NPTF

1шт.

21

87035993

PLUG,Sq Soc, 2"-11 1/2 NPTF

1шт.

22

87659239

HOSE

Hose, Filter To Cooler, 1140mm (44 7/8 in.)

1шт.

23

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

24

87374752

GAUGE

Liquid Level Gauge

1шт.

25

87419597

HYD TUBE,25.40 mm OD x 658.9, 414.8 mm L

Valve Outlet

1шт.

26

86977688

45 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 27

1шт.

27

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

28

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

29

87659241

Oil Cooler Bypass; See Fig 06-18A

1шт.

30

87604074

ADAPTER

6FJ x 6MJ w/1.2 Orifice

4шт.

31

87554297

HYD TUBE,10.2 mm ID x 12.7 mm OD x 147, 99.2 mm L

Tandem Pump Supply

1шт.

32

87568433

HOSE,6.35 mm ID x 1440.00 mm

Right Hand Two Speed

1шт.

33

87593247

ELBOW

45Deg 37Fl .38 x .25 Tube; Incl 34

1шт.

34

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

35

84384

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl 36

3шт.

36

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

37

87568435

DECAL

Boom Override

1шт.

38

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Incl 39

1шт.

39

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

40

87452147

Undercarriage Plumbing

1шт.
