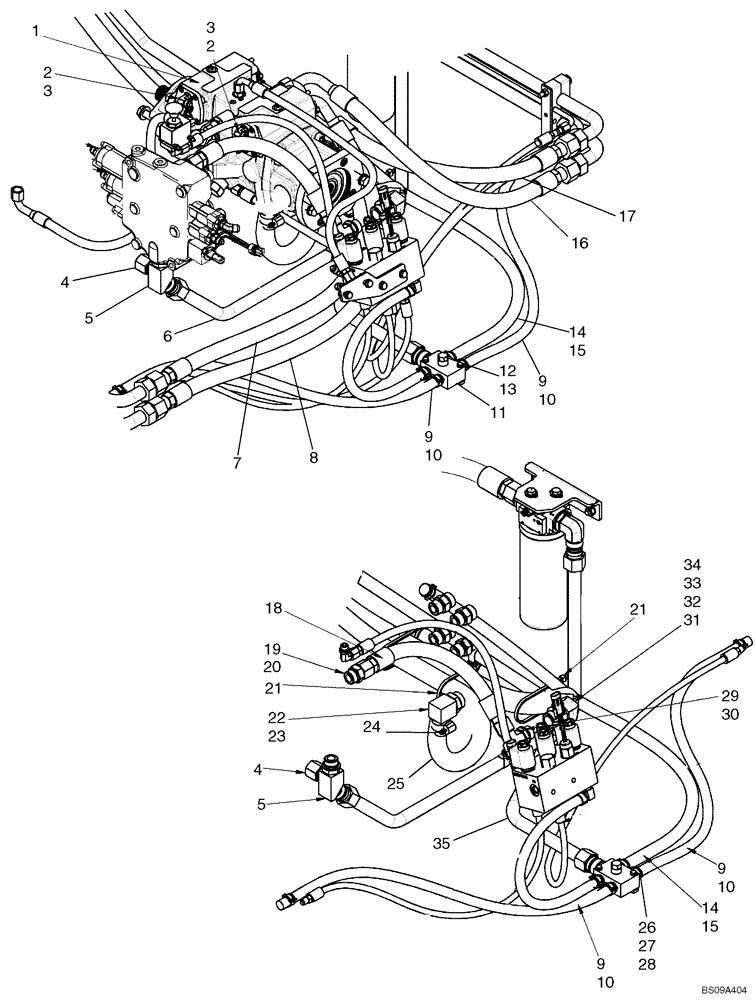

Запчасти Case 450CT (06-10) - HYDROSTATICS - PUMP TO DRIVE MOTORS (450CT) (06) - POWER TRAIN

1

87546977

PUMP,46 CC

A22 - 360 Bar 5.7mm Orifice; See Fig 06-22

1шт.

1

87546977R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

1

87546977C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 3

2шт.

3

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

219606

CAP,1-1/16" - 12 JIC

1шт.

5

87421217

ADAPTER,1-5/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Adapter, 45 Deg With Side Outlet

1шт.

6

87419597

HYD TUBE,25.40 mm OD x 658.9, 414.8 mm L

Tube, Valve Outlet

1шт.

7

87547012

HOSE,19.05mm ID x 1002mm L

Hose, Motor To Pump Loop, 1002mm (39 7/16 in.)

1шт.

8

87547013

HOSE,19.05mm ID x 1072mm L

Hose, Motor To Pump Loop, 1072mm (42 3/16 in.)

1шт.

9

87452385

HOSE,12.70 mm ID x 114.00 mm

Case Drain

1шт.

10

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

4шт.

11

87437351

MANIFOLD

Return Oil Manifold

1шт.

12

76349

PLUG,9/16" - 18 ORB

Incl. 13

1шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

87547044

HOSE,15.88mm ID x 1061mm L

Pump Drain

1шт.

15

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

2шт.

16

87547011

HOSE,19.05mm ID x 712mm L

Hose, Motor To Pump Loop, 712mm (28 1/32in.)

1шт.

17

87547010

HOSE,19.05mm ID x 630mm L

Hose, Motor To Pump Loop, 630mm (24 13/16 in.)

1шт.

18

87547015

HOSE

Hose, Valve Supply, 412mm (16 7/32 in.)

1шт.

19

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 20

1шт.

20

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

22

87393628

ADAPTER,1" Hose Barb x 1-5/16" - 12 ORB

Incl 23

1шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

24

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

1шт.

25

87547024

HOSE,25.4mm ID x 1553mm L, SAE 100R4

Hose, Charge Pump Supply, 1553mm (61 1/8 in.)

1шт.

26

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

27

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

28

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

29

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 30

1шт.

30

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

31

87033824

FITTING,45 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

Incl 32

1шт.

32

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

33

87039085

HOSE CLAMP,32mm - 54mm

1шт.

34

87348364

HOSE ASSY.

Hose, Loader Pump Supply, 1380mm (54 5/16 in.)

1шт.

35

87440223

HYD TUBE,25.4 mm OD x 1403, 391.6 mm L

Case Drain

1шт.
