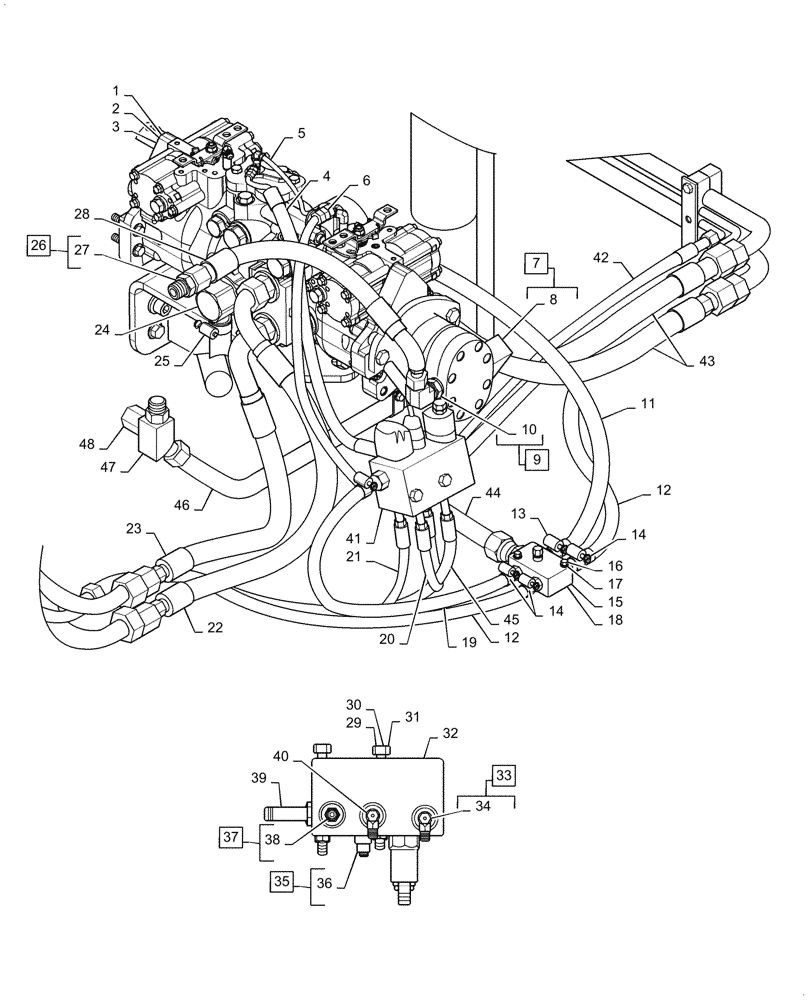

Запчасти Case 450CT (06-08A) - HYDROSTATICS - BRAKE VALVE (450CT WITH IN-LINE PUMP CONFIGURATION) (06) - POWER TRAIN

REF

INSTRUCTION

450CT WITH IN-LINE PUMP CONFIGURATION

1шт.

87350024

PUMP

Tandem Pump; Order Components, Incl. 1- 3

1шт.

87350025R

REMAN-HYD PUMP

Reman for New PN 87350024

1шт.

87350025C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

87350025

PUMP,46 CC

Pump; See Figure 06-27 - 06-31A

1шт.

1

87350025R

REMAN-HYD PUMP

REMANUFACTURED HYDRAULIC PUMP

1шт.

1

87350025C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

2

87013729

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

1шт.

3

87024695

PUMP,36 CC

See Figure 06-34

1шт.

4

87348362

HOSE ASSY.

Charge Pressure

1шт.

5

87021277

TUBE,6.35mm OD x 124.9mm L, 37 Degree Flare

1шт.

6

87348345

HOSE ASSY.

NOR

1шт.

7

86729372

FITTING,90 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

Incl. 8

1шт.

8

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

9

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 10

1шт.

10

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

87348368

HOSE ASSY.

Case Drain

1шт.

12

87452385

HOSE,12.70 mm ID x 114.00 mm

Case Drain

2шт.

13

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

24 mm

2шт.

14

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

6шт.

15

87437351

MANIFOLD

1шт.

16

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

17

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

18

87404992

SQUARE NUT,M6 x 1.0, Cl 8

M6

2шт.

19

87348344

HOSE ASSY.

Drain

1шт.

20

87452389

HOSE ASSY.

Brake

1шт.

21

87452388

HOSE ASSY.

Brake

1шт.

22

87348367

HOSE ASSY.,19.05mm ID x 745mm L

Loop

1шт.

23

87348365

HOSE ASSY.,19.05mm ID x 650mm L

Loop

1шт.

24

87418259

FITTING

90, 20 ORB x 16 Bead

1шт.

25

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

1шт.

26

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 27

1шт.

27

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

28

87348363

HOSE ASSY.

Loader Valve Supply

1шт.

29

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

2шт.

30

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

31

9628098

NUT,M8 x 1.25, Cl 10

2шт.

32

REF

INSTRUCTION

See Figure 06-17

1шт.

33

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl. 34

1шт.

34

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

35

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 36

1шт.

36

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

37

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl. 38

1шт.

38

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

39

86705988

FITTING,1/2" Hose Bead x 9/16" - 18 ORB

1шт.

40

87029965

HYD CONNECTOR,9/16" - 18 ORB x 9/16" JIC x 9/16" JIC

Tee; 1/4 x 3/8 x -3/8 37FL ADJ Run Reducer; Incl. Nut, Washer, O-Ring

1шт.

41

87352524

BRAKE VALVE

2 Speed

1шт.

42

87452386

HOSE ASSY.

2-Speed

1шт.

43

87348366

HOSE ASSY.,19.05mm ID x 710mm L

Loop

2шт.

44

87440223

HYD TUBE,25.4 mm OD x 1403, 391.6 mm L

Case Drain

1шт.

45

87452387

HOSE ASSY.

2 Speed

1шт.

46

87419597

HYD TUBE,25.40 mm OD x 658.9, 414.8 mm L

Valve Outlet

1шт.

47

87421217

ADAPTER,1-5/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 ORB

W/Side Outlet

1шт.

48

219606

CAP,1-1/16" - 12 JIC

Hex

1шт.
