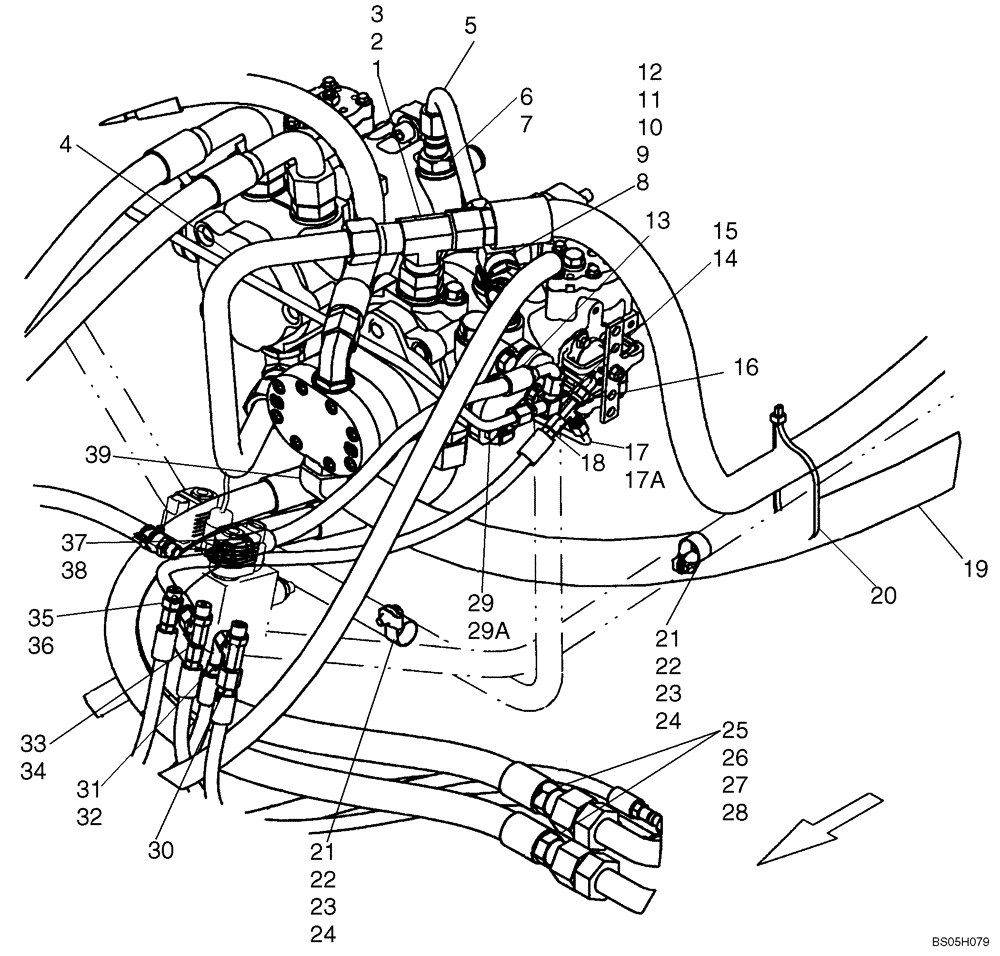

Запчасти Case 450CT (06-05A) - HYDROSTATICS - CASE DRAIN (450CT WITH SPLIT PUMP CONFIGURATION) (06) - POWER TRAIN

REF

INSTRUCTION

450CT WITH SPLIT PUMP CONFIGURATION

1шт.

1

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Incl. 2

2шт.

2

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

86513018

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br

1шт.

4

87446422

HYD TUBE,25.4 mm OD x 258.9, 171.1 mm L

Suction, Pump To Pump

1шт.

5

87446421

HYD TUBE,15.88 mm OD

Pump To Pump

1шт.

6

86507102

HYD CONNECTOR,1-1/16" - 12 ORB x 7/8" - 14 JIC

Incl. 7

1шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

87458356

FITTING

Incl. 9, 10

1шт.

9

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

217-324

FITTING,45 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

Incl. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

87454484

HOSE ASSY.

Charge

1шт.

14

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 15

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

17

87441622

HYD TUBE,6.4 mm OD x 480, 105.5 mm L

NOR Connect Tube; If Used

1шт.

17a

87357676

HOSE ASSY.

NOR Connect Hose; If Used

1шт.

18

87029903

HOSE ASSY.

1шт.

19

87440294

HOSE ASSY.

1шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

21

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

22

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

23

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

24

122158A1

NUT,M8, U

2шт.

25

87454486

HOSE ASSY.,19.05mm ID x 975mm L

Loop

2шт.

26

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

1.0; Incl. 27, 28

2шт.

27

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

28

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

29

87453231

HYD TUBE,9.53 mm OD

Charge Pressure Tube; If Used

1шт.

29a

87357677

HOSE ASSY.

Charge Pressure Hose; If Used

1шт.

30

87452386

HOSE ASSY.

700 mm (27.56 in) Two Speed; If Used

1шт.

30

87452387

HOSE ASSY.

1025 mm (40.35 in) Two Speed; If Used

1шт.

31

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl. 32

1шт.

32

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

33

218-5336

TEE,7/16"-20, 37 Degree x 9/16"-18, O-Ring Run

Incl. 34

1шт.

35

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl. 36

1шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

36

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

37

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 38

1шт.

38

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

39

87033824

FITTING,45 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

1шт.
