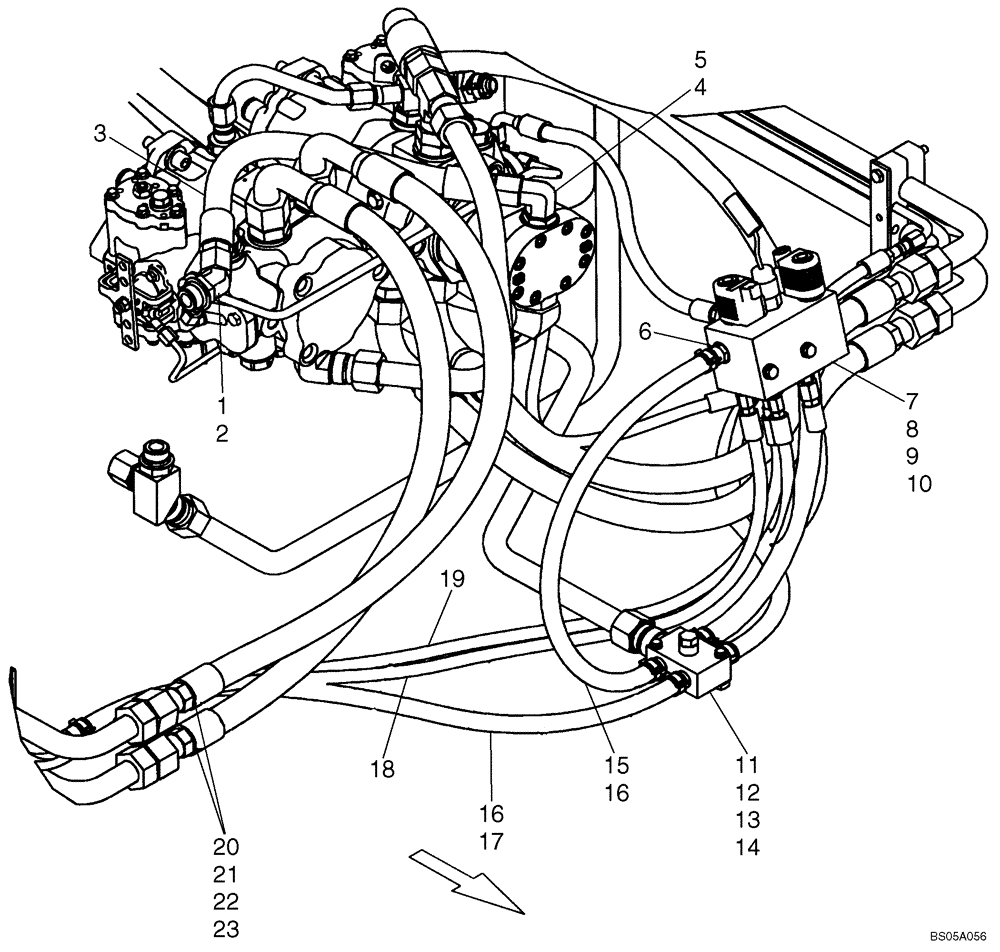

Запчасти Case 450CT (06-04A) - HYDROSTATICS - BRAKE VALVE (450CT WITH SPLIT PUMP CONFIGURATION) (06) - POWER TRAIN

REF

INSTRUCTION

450CT WITH SPLIT PUMP CONFIGURATION

1шт.

1

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 2

1шт.

2

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

87029813

HOSE ASSY.

1шт.

4

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 5

1шт.

5

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

86705988

FITTING,1/2" Hose Bead x 9/16" - 18 ORB

1шт.

7

87429625

HYDRAULIC VALVE

See Figure 06-16

1шт.

8

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

2шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

9628098

NUT,M8 x 1.25, Cl 10

2шт.

11

87437351

MANIFOLD

1шт.

12

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

13

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

14

87404992

SQUARE NUT,M6 x 1.0, Cl 8

M6

2шт.

15

87422423

HOSE ASSY.

Brake Valve Drain

1шт.

16

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

6шт.

17

87452385

HOSE,12.70 mm ID x 114.00 mm

Case Drain

2шт.

18

87452389

HOSE ASSY.

Brake

1шт.

19

87452387

HOSE ASSY.

Two Speed

1шт.

20

87454485

HOSE ASSY.,19.05mm ID x 925mm L

Loop

2шт.

21

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

Incl. 22, 23

2шт.

22

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

23

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.
