(06-02A) - HYDROSTATICS - NORTH AMERICAN NOISE CONTROL (IN-LINE PUMP CONFIGURATION)

Запчасти Case 450CT (06-02A) - HYDROSTATICS - NORTH AMERICAN NOISE CONTROL (IN-LINE PUMP CONFIGURATION) (06) - POWER TRAIN

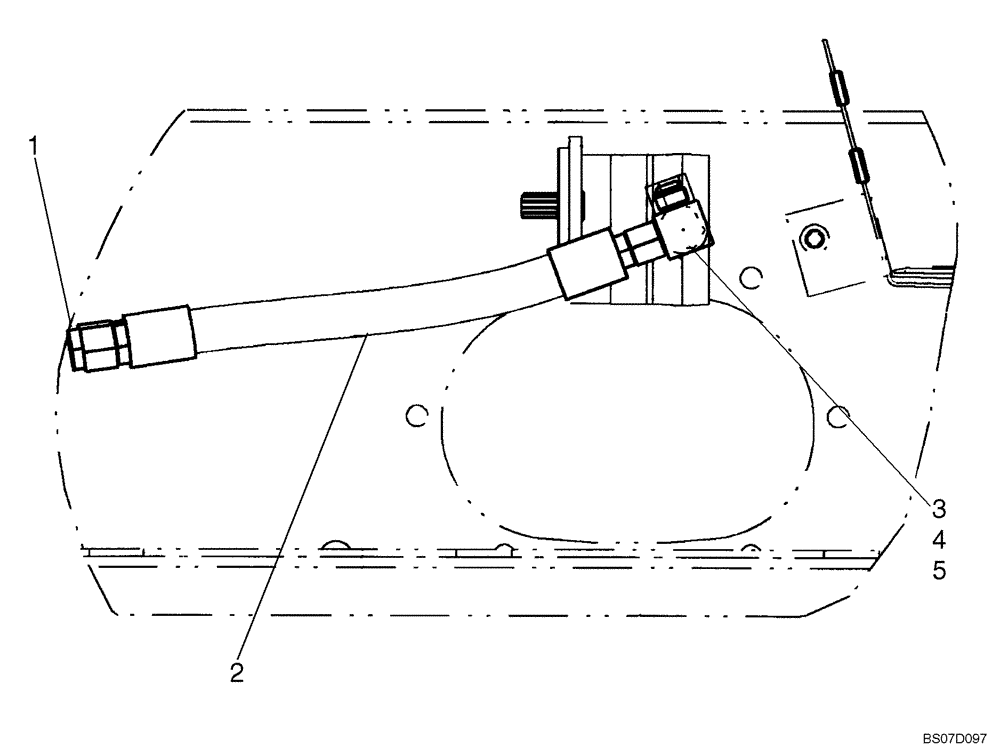

Схема запчастей Case 450CT - (06-02A) - HYDROSTATICS - NORTH AMERICAN NOISE CONTROL (IN-LINE PUMP CONFIGURATION) (06) - POWER TRAIN
4
2
3
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

9790527

PLUG,1-5/16" - 12 JIC

1шт.

2

87462103

HOSE ASSY.

Resonator

1шт.

3

87025944

TEE

1шт.

4

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 5

1шт.

5

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

87039085

HOSE CLAMP,32mm - 54mm

Use With Pilot Control Unit

1шт.

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

If Used

1шт.

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

If Used

1шт.

Выбрано товаров: 8
