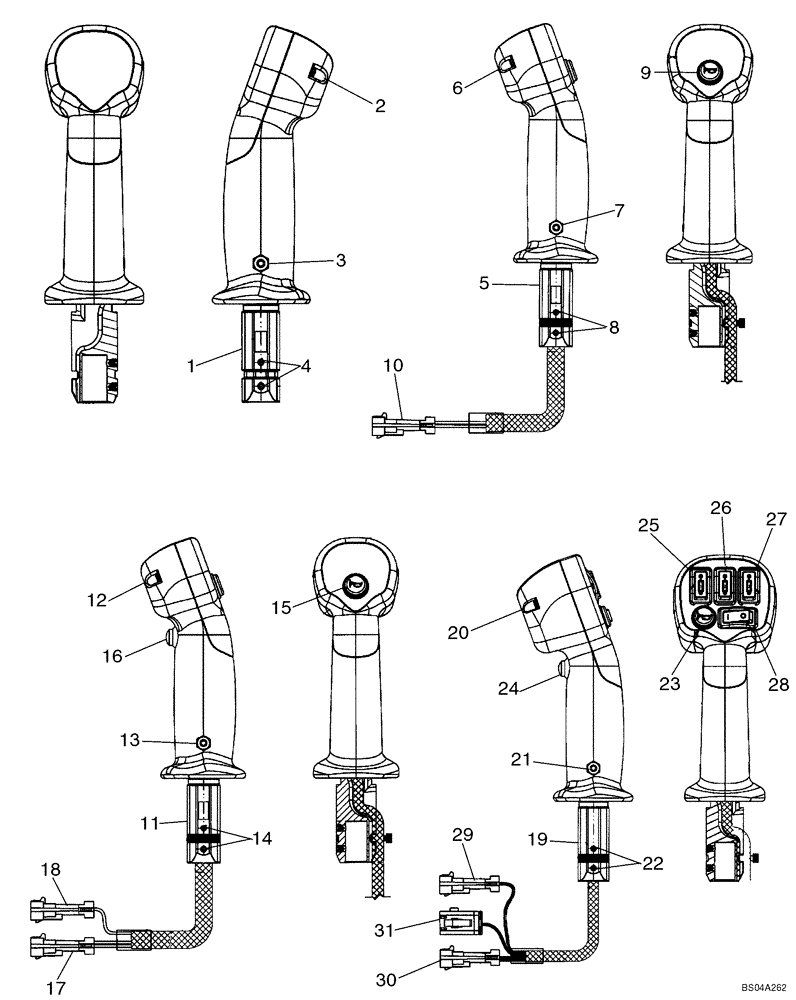

Запчасти Case 450CT (04-15A) - CONTROLS, RIGHT HAND - HANDLE; UNITS BUILT BEFORE DEC 2006, SEE ADAPTER, REF 5 (04) - ELECTRICAL SYSTEMS

*

87458322

HANDLE

WITHOUT SWITCHES; Incl. 1 - 4

1шт.

1

87456565

ADAPTER

Mount

1шт.

2

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

3

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

4

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

*

87458323

HANDLE

WITH HORN; Incl. 5 - 10

1шт.

5

87456565

ADAPTER

Mount

1шт.

6

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

7

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

8

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

9

87427729

SWITCH

Horn

1шт.

10

253294A1

CONNECTOR, ELEC

CONNECTOR

1шт.

*

87458324

HANDLE

WITH HORN, RIDE CONTROL; Incl. 11 - 18

1шт.

11

87456565

ADAPTER

Mount

1шт.

12

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

13

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

14

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

15

87427729

SWITCH

Horn

1шт.

16

87427352

SWITCH

Trigger; On/Off; Ride Control

1шт.

17

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

18

253294A1

CONNECTOR, ELEC

CONNECTOR

1шт.

*

87458325

HANDLE

WITH HORN, RIDE CONTROL, FRONT ELECTRIC; Incl. 19 - 31

1шт.

19

87456565

ADAPTER

Mount

1шт.

20

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

21

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

22

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

23

87427729

SWITCH

Horn

1шт.

24

87427352

SWITCH

Trigger; On/Off; Ride Control

1шт.

25

87427685

SWITCH

Rocker; Momentary; Front Electric Switch 1

1шт.

26

87427686

SWITCH

Rocker; Momentary; Front Electric Switch 2

1шт.

27

87427687

SWITCH

Rocker; Momentary; Front Electric Switch 3

1шт.

28

87427688

SWITCH

Rocker; 0n/Off; Front Electric Switch 4

1шт.

29

253294A1

CONNECTOR, ELEC

CONNECTOR

1шт.

30

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

31

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

1шт.
