Запчасти Case 450CT (04-12) - HARNESS - DOOR, FRONT (04) - ELECTRICAL SYSTEMS

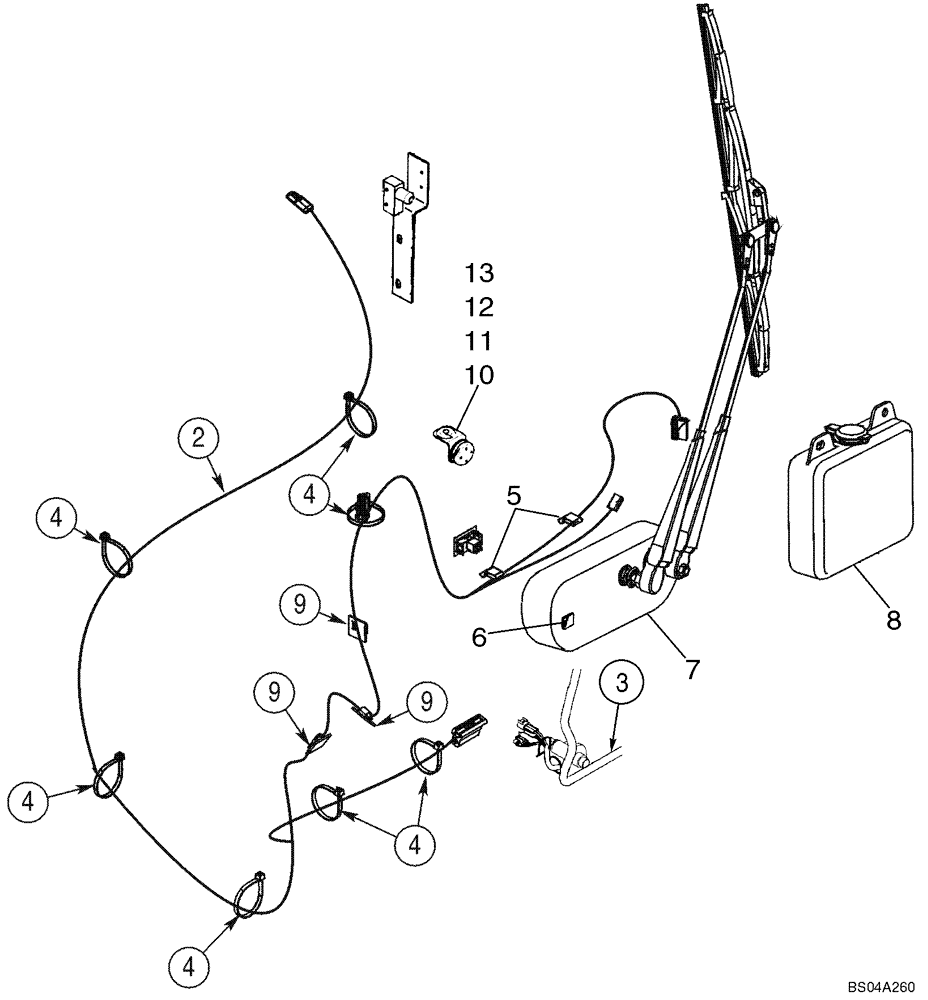

Схема запчастей Case 450CT - (04-12) - HARNESS - DOOR, FRONT (04) - ELECTRICAL SYSTEMS
4
4
4
3
2
5
9
8
12
9
7
9
4
13
4
10
11
6

Артикул

Название

Примечание

Количество

1

417650A2

HARNESS

Cab/Front Door; Models With Lexan Front Door; Not Illustrated; See Figure 09-28

1шт.

2

417593A2

HARNESS

Cab/Front Door; Models With Glass Front Door; See Figure 09-28

1шт.

3

87036215

HARNESS

Cab; See Figure 04-11

1шт.

4

529070

CABLE TIE,368.3mm L

CABLE STRAP

7шт.

5

442962A1

CLIP, WIRE

2шт.

6

86988664

PAD

Foam; Mounted To Back Of Windshield Wiper Motor

1шт.

7

398129A2

KIT

Wiper; See Figure 04-14

1шт.

8

322651A1

RESERVOIR ASSY.

Components Not Serviced Separately

1шт.

9

H439303

CLIP

3шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

11

248-1210

GROMMET,1/4" ID x 1" x .062", Diag Cut

1шт.

12

221429A2

SPACER

1шт.

13

86988663

ANGLE

Bottle Retention

1шт.

Выбрано товаров: 13
