Запчасти Case 450CT (04-05A) - DISCONNECT SWITCH - REMOTE JUMP START, REAR MOUNTED (04) - ELECTRICAL SYSTEMS

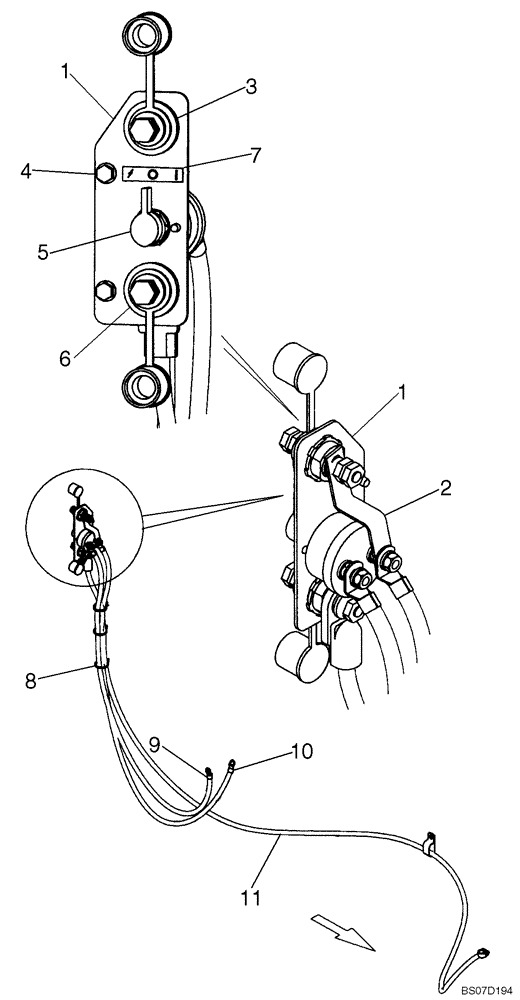

Схема запчастей Case 450CT - (04-05A) - DISCONNECT SWITCH - REMOTE JUMP START, REAR MOUNTED (04) - ELECTRICAL SYSTEMS
6
4
2
5
8
7
9
3
10
11
1
1

Артикул

Название

Примечание

Количество

87580461

SERVICE KIT

Battery Disconnect And Remote Jump Start; Incl. 1 - 11 And Instructions

1шт.

87578657

Battery Disconnect And Remote Jump Start; Incl. 1 - 11

1шт.

1

87578642

BRACKET

Battery Disconnect And Remote Jump

1шт.

2

399665A2

ANCHOR

Strip Battery Jump Start

1шт.

3

399384A1

TERMINAL CONNECTOR

Negative Remote Jump Start

1шт.

4

87029930

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 5/8"

2шт.

5

87458467

ROTARY SWITCH

Master Disconnect

1шт.

6

399383A1

TERMINAL CONNECTOR,3/8"-16 UNC

Positive Remote Jump Start

1шт.

7

176332A1

DECAL

Battery Disconnect

1шт.

8

529070

CABLE TIE,368.3mm L

CABLE STRAP

3шт.

9

87443652

CABLE

Negative Battery Cable; 140 cm (55 1/8 in.)

1шт.

10

87578924

CABLE

Positive Battery Cable; 140 cm (55 1/8 in.)

1шт.

11

87418292

CABLE

Negative Battery Cable; 290 cm (114 1/4 in.)

1шт.

Выбрано товаров: 13
