(03-04) - FUEL INJECTION SYSTEM - INJECTOR

Запчасти Case 450CT (03-04) - FUEL INJECTION SYSTEM - INJECTOR (03) - FUEL SYSTEM

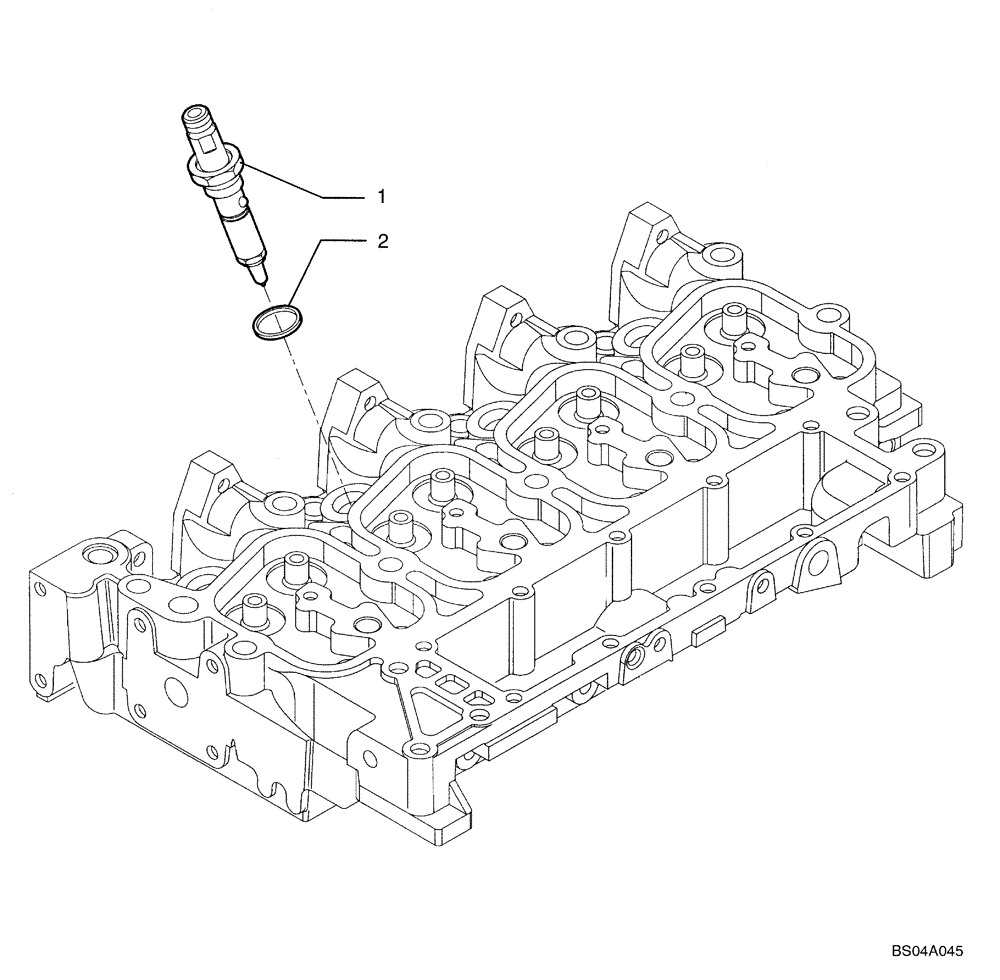

Схема запчастей Case 450CT - (03-04) - FUEL INJECTION SYSTEM - INJECTOR (03) - FUEL SYSTEM
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2852056

FUEL SYSTEM INJECTOR

Incl Sealing Washer J937142

4шт.

2852056R

REMAN-FUEL INJECTOR

450 TIER 2 P.I.N. N7M458414 & PRIOR (1/05-12/07), 450CT BSN N7M464019 (4/05-12/07)

4шт.

2852056C

CORE-FUEL INJECTOR

Return Number

1шт.

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

1.5 mm Washer

1шт.

2

4895297

SEAL,7.3mm ID x 15mm OD x 2.5mm THK

4шт.

Выбрано товаров: 5
