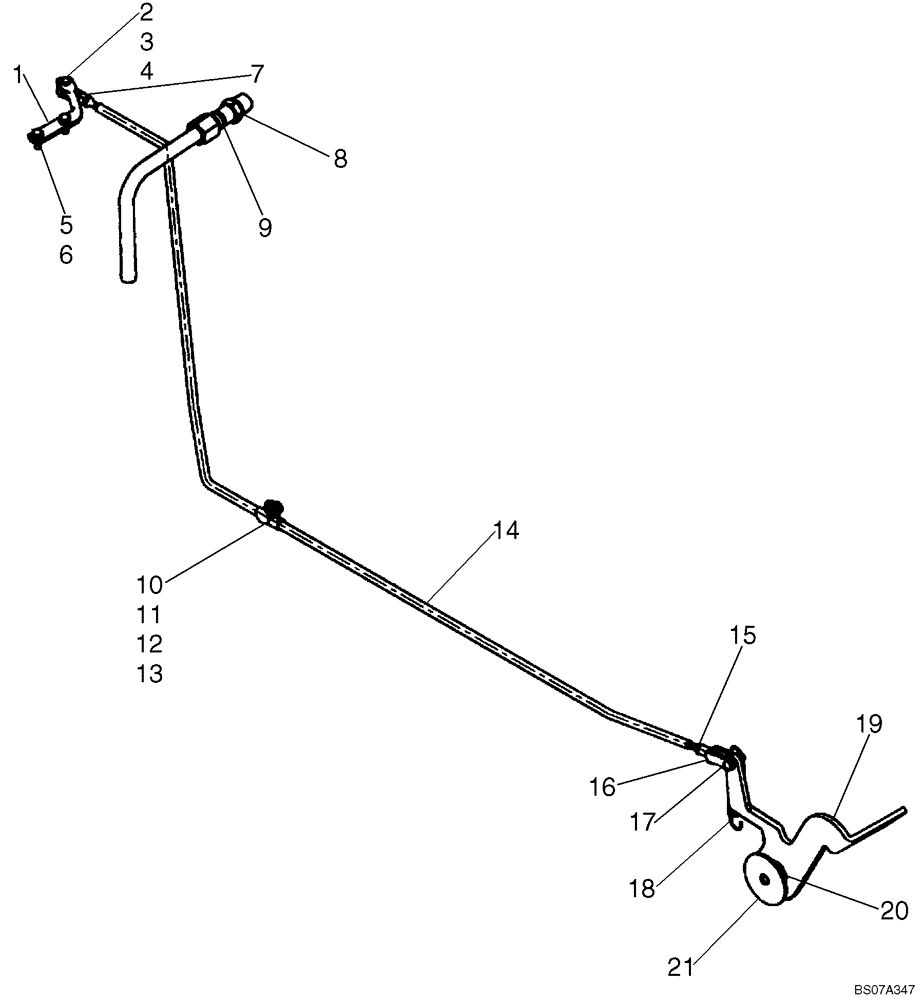

Запчасти Case 450CT (03-02A) - CONTROLS - THROTTLE; IF USED, SEE REF 1 (03) - FUEL SYSTEM

87608662

SERVICE KIT

450, 450CT Throttle Kit; Incl. 1 - 21

1шт.

1

87608065

ROD

1шт.

2

87597960

CLEVIS PIN,6.35mm OD x 19.56mm L

1шт.

3

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.

4

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

1шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

6

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

7

A146456

BALL

1шт.

8

242680

HYD CONNECTOR,7/8" - 14 JIC x 1/2" - 14 NPT

1шт.

9

87612366

HEATER TUBE

1шт.

10

86636815

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 8.8, Full Thd

1шт.

11

87028524

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

12

9628098

NUT,M8 x 1.25, Cl 10

1шт.

13

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

1шт.

14

87602734

ROD

1шт.

15

86976064

JAM NUT,Jam, 1/4"-28, G5

2шт.

16

86520436

ADJUSTABLE CLEVIS,1/4" - 28

1шт.

17

D23693

AXLE PIN

1шт.

17

87482654

CLEVIS PIN

1шт.

18

D124939

SPRING

1шт.

19

87601406

THROTTLE

1шт.

20

R14771

WASHER

1шт.

21

1342374C1

DISC

1шт.
