(03-01) - FUEL LINES WITH PUSH CLAMPS AT FUEL FILTER; IF USED

Запчасти Case 450CT (03-01) - FUEL LINES WITH PUSH CLAMPS AT FUEL FILTER; IF USED (03) - FUEL SYSTEM

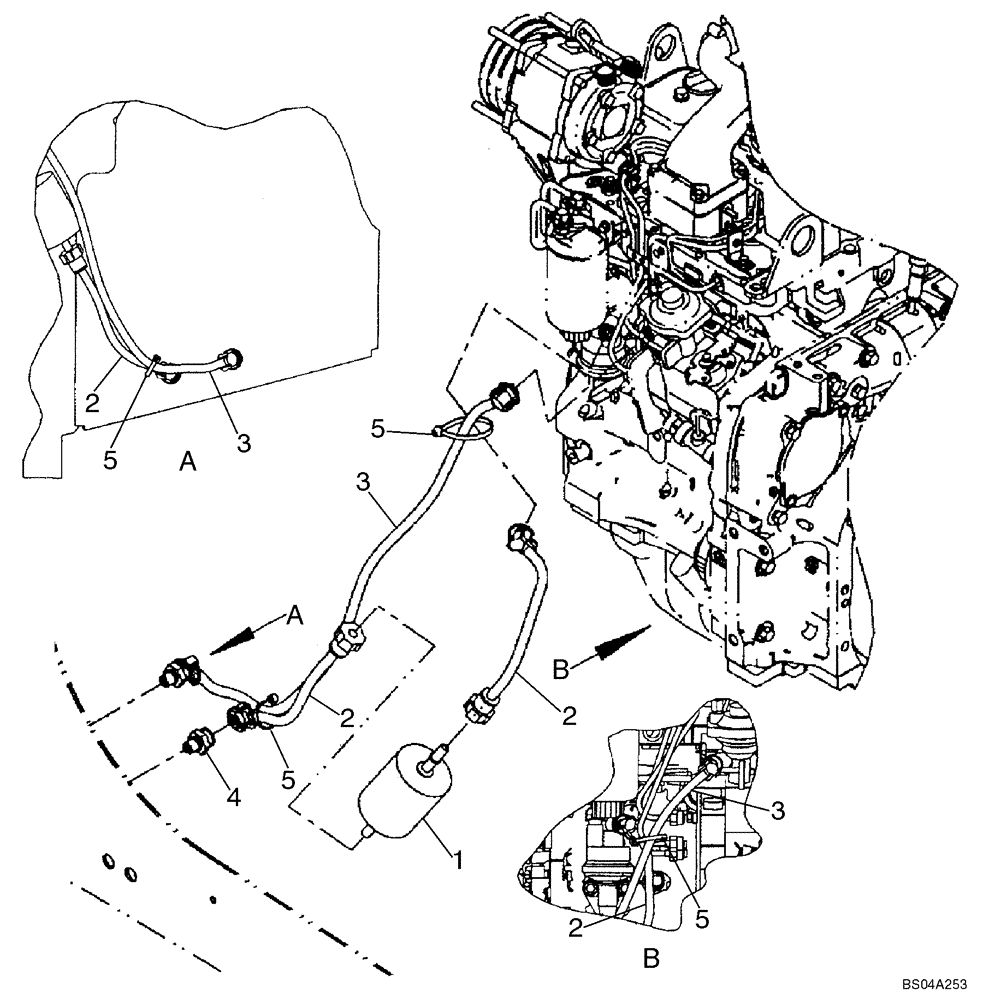

Схема запчастей Case 450CT - (03-01) - FUEL LINES WITH PUSH CLAMPS AT FUEL FILTER; IF USED (03) - FUEL SYSTEM
5
4
3
2
2
5
3
2
1
2
5
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87548612

FUEL FILTER

Inline; Replaces 87019604

1шт.

2

87018091

TUBE

Fuel Line

2шт.

3

87435843

FUEL HOSE,6.35 mm ID x 755.00 mm

Fuel Line

1шт.

4

87431323

ADAPTER

2шт.

5

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.
