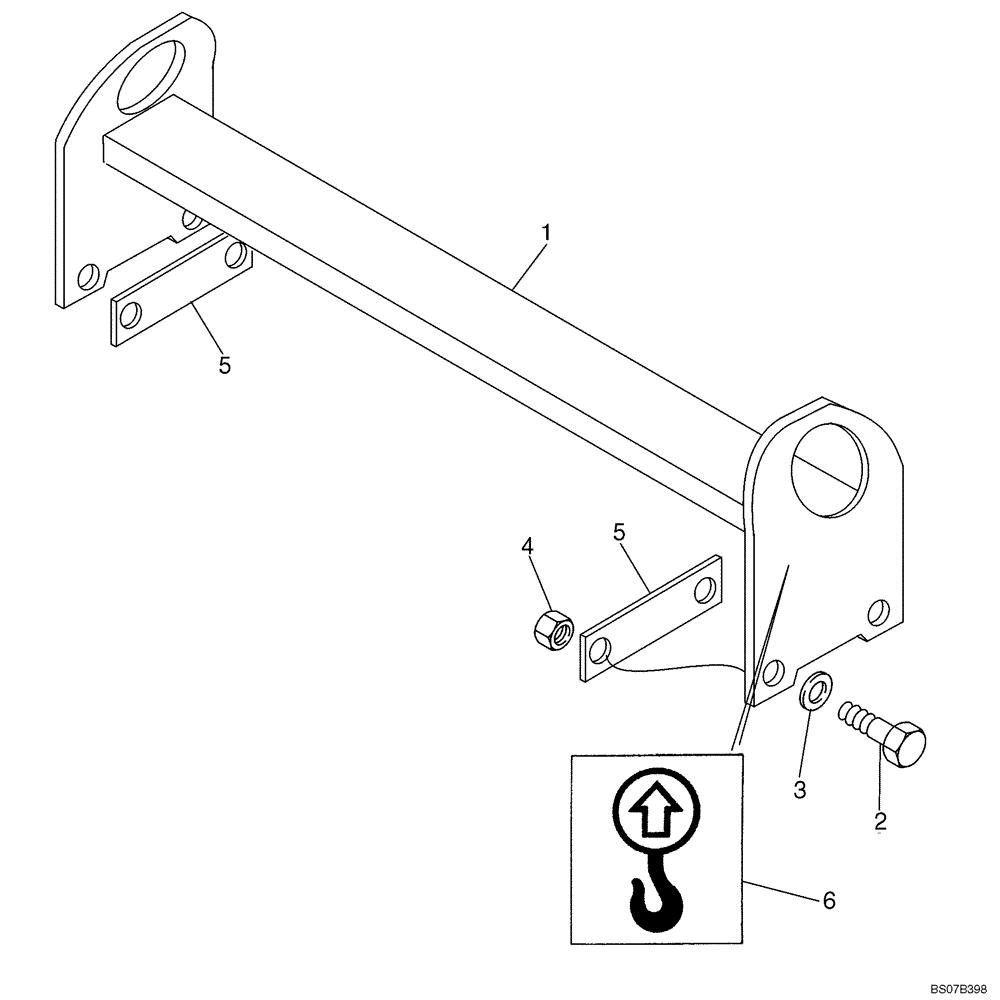

Запчасти Case 450CT (09-24) - LIFT HOOK (09) - CHASSIS

1

87430535

BRACKET

Lift Hook

1шт.

2

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

4шт.

3

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

4

412672

NUT,Hex, M12 x 1.75, Cl 10

4шт.

5

87433116

BAR

Doubler

2шт.

6

139729A1

DECAL

See Figure 09-42, Ref 7

4шт.
