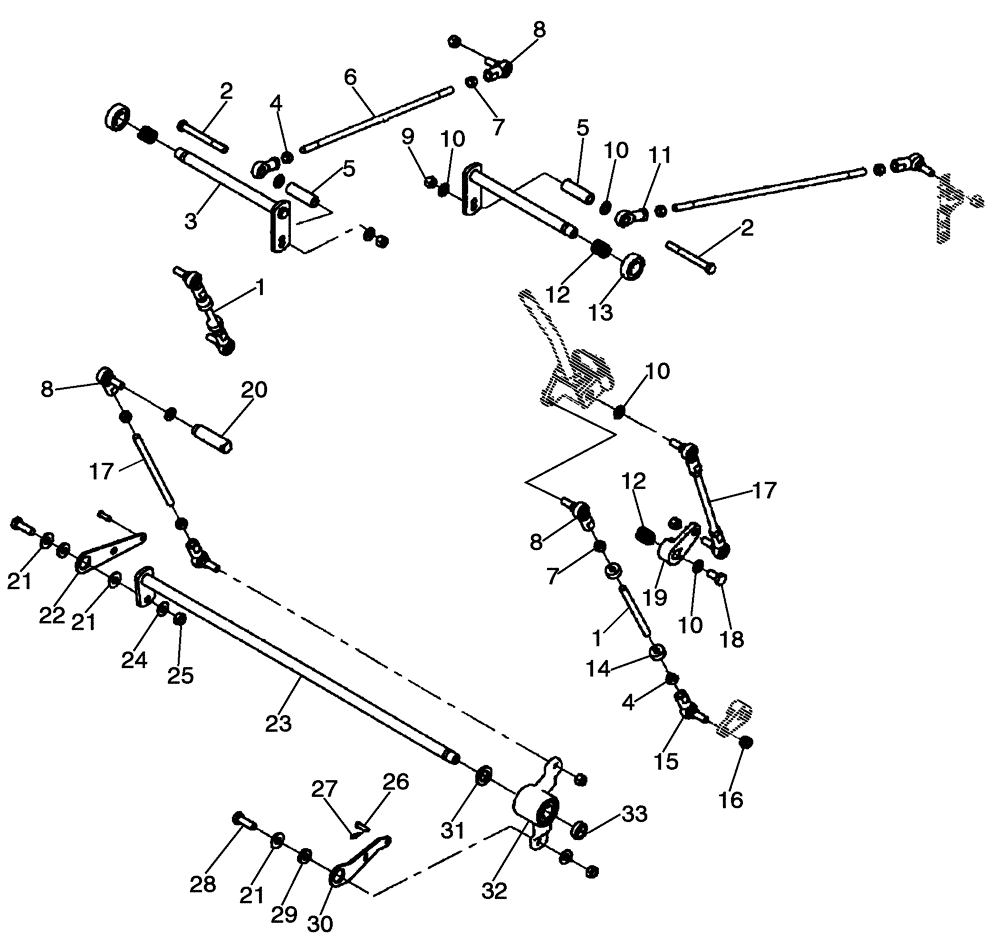

Запчасти Case 450CT (09-12) - LINKAGE - LOADER AND GROUND DRIVE (BUCKET) (MODELS WITH SPLIT PUMP CONFIGURATION) (09) - CHASSIS

1

187234A2

ROD

2шт.

87638777

SERVICE KIT

Conversion Kit, Split Pump to In-Line Pump, Incl Ref 6-6A, 15-16

1шт.

2

426-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

2шт.

3

238968A3

SHAFT

2шт.

4

86509310

NUT,3/8" - 24, Gr 5

6шт.

5

87435550

SPACER

2шт.

6

435565A1

ROD

2шт.

7

87030547

NUT,3/8" - 24, LH Thd, Gr 5

6шт.

8

230426A1

BALL JOINT,3/8" - 24 x 1-3/5"

6шт.

9

88902

NUT,3/8"-16

2шт.

10

140017

WASHER,M10 x 20mm OD x 2mm Thk

7шт.

11

86500348

BALL JOINT HEAD,3/8" - 24

.38; Rod End

2шт.

12

229383A1

SPRING

3шт.

13

102776A1

BEARING, BALL,17 mm ID x 40 mm OD x 12 mm

2шт.

14

255561A1

COLLAR ASSY.

4шт.

15

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

4шт.

16

80855

NUT,Hex, 3/8" - 24

2шт.

17

180682A1

STEM

2шт.

18

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

1шт.

19

237773A1

LEVER ASSY.

1шт.

20

237774A1

SHAFT

2шт.

21

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3шт.

22

87445120

LINKAGE

1шт.

23

275022A1

SHAFT

1шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

25

86500689

NUT,M10 x 1.5, Cl 10

2шт.

26

234726

CLEVIS PIN,6.29mm OD x 20mm L

2шт.

27

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

2шт.

28

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

6шт.

29

641419

WASHER,0.41" ID x 0.88" OD x 0.18" Thk

2шт.

30

87445121

LINKAGE

1шт.

31

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

32

239908A4

CRANK

1шт.

33

240621A1

SPACER

1шт.
