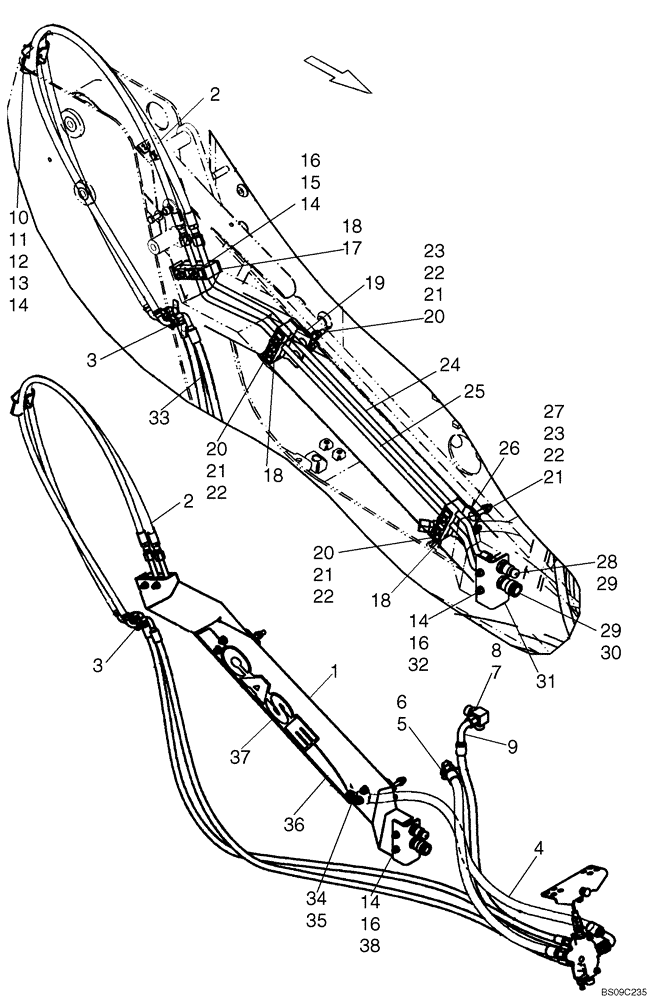

Запчасти Case 450CT (08-19) - SECONDARY FRONT AUXILIARY (08) - HYDRAULICS

1

277197A1

COVER

1шт.

2

87445736

HOSE ASSY.,12.7mm ID x 1950mm L

2шт.

3

87301328

SNAP RING

Replaces 103-3398; #X98 E-Style

4шт.

4

87451962

HOSE ASSY.

Secondary Auxiliary Outlet

1шт.

5

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

If Used; Incl. 6

1шт.

5

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 6

1шт.

6

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

129037A1

FITTING,1-5/16" - 12 ORB x 1-5/16" - 12 JIC x 1-1/16" - 12 JIC

1-5/16 fl br x fl x Or; Incl. 8

1шт.

8

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

9

87452084

HOSE ASSY.

Tank Return; If Used

1шт.

9

87603114

HOSE

Secondary Aux Return

1шт.

10

436500A1

PLATE

Hose Routing Guard

1шт.

11

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

12

276433A1

CLAMP

1шт.

13

87303203

SPACER,X-Pipe, 10.74mm ID x 17.15mm OD x 15.01 L

3/8 x Pipe .591 in

1шт.

14

140017

WASHER,M10 x 20mm OD x 2mm Thk

5шт.

15

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

2шт.

16

86512554

NUT,M10 x 1.5, Cl 10

4шт.

17

256976A1

BAR

1шт.

18

87449943

CLAMP

6шт.

19

282954A1

SUPPORT

Hydraulic Tube Mounting, Rearward

1шт.

20

300662

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

6шт.

21

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Replaces 895-11012; If Used

8шт.

22

412672

NUT,Hex, M12 x 1.75, Cl 10

Replaces 832-41412

8шт.

23

87302487

SPACER,13.8mm ID x 21.3mm OD x 10.3mm L

1/2 x Pipe .406 in

2шт.

24

87445745

HYD TUBE,15.88 mm OD x 1118.4, 335 mm L

Loader Arm Case Drain

1шт.

25

87445786

HYD TUBE,15.88 mm OD x 1167.8, 350.4 mm L

Loader Arm Case Drain

1шт.

26

282953A1

SUPPORT

Hydraulic Tube Mounting, Forward

1шт.

27

338263

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

Replaces 811-12070

2шт.

28

87417308

COUPLING, BREAK AWAY

1/2; male; Incl. 87426762; If Used

1шт.

28

87741500

QUICK MALE COUPLING,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

87426762

RING

Not Illustrated Separately

1шт.

29

595460

BHD LOCK NUT,7/8" - 14

2шт.

30

393394A1

COUPLING, BREAK AWAY

1/2; Female; If Used

1шт.

30

87741499

COUPLING, QUICK, FEM,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

31

87445863

PLATE

1шт.

32

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1-2шт.

33

87429993

HOSE ASSY.

2шт.

34

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 35

1шт.

35

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

36

87637823

DECAL

Case Stripe RH; See Fig 09-42

1шт.

37

87389375

DECAL

Case Logo; See Fig 09-42

1шт.

38

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.
