Запчасти Case 450CT (08-13A) - HYDRAULIC ATTACHMENTS - CONTROLS (450CT WITH IN-LINE PUMP CONFIGURATION) (08) - HYDRAULICS

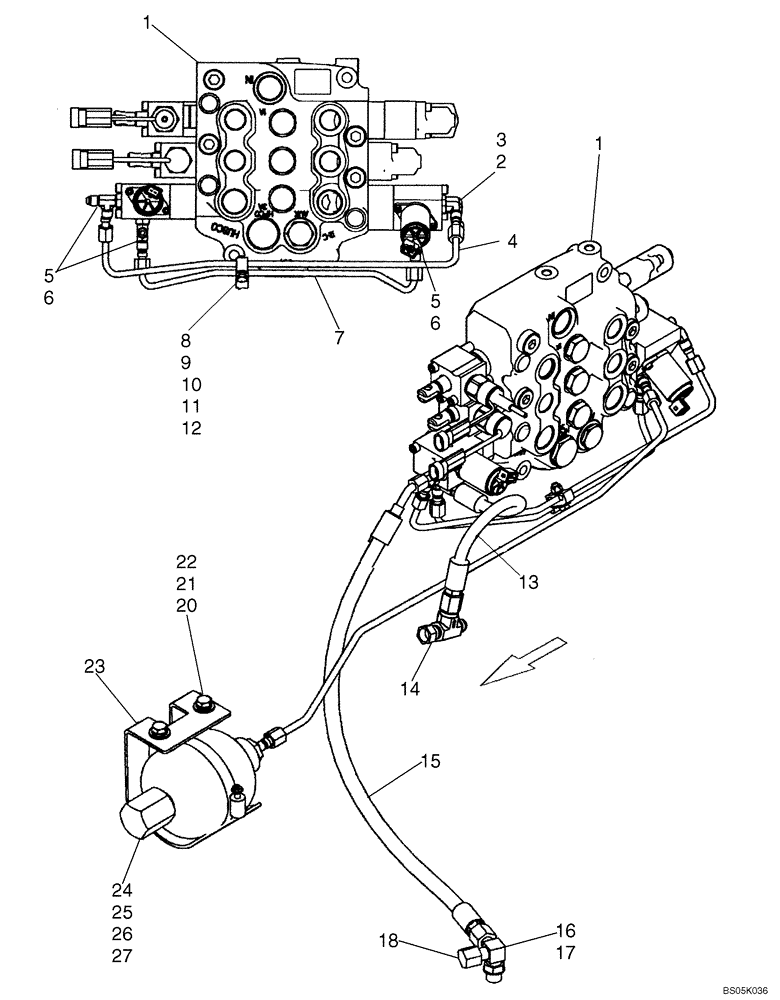

Схема запчастей Case 450CT - (08-13A) - HYDRAULIC ATTACHMENTS - CONTROLS (450CT WITH IN-LINE PUMP CONFIGURATION) (08) - HYDRAULICS
23
14
5
13
24
1
4
12
21
26
1
11
8
27
25
5
7
3
22
16
6
15
10
18
2
6
17
20
9

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

450CT WITH IN-LINE PUMP CONFIGURATION

1шт.

87638777

SERVICE KIT

Conversion Kit, Split Pump to In-Line Pump, Incl Ref 13

1шт.

1

87583287

VALVE

Control Valve; Replaces 87527175; See Figure 08-21C

1шт.

1

87527175

VALVE

Replaces 87446764; See Figure 08-08

1шт.

2

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

Incl. 3

1шт.

3

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

87018051

TUBE,6.35 mm OD

1шт.

5

86513019

TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC

Incl. 6

3шт.

6

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

87438840

HYD TUBE,6.35 mm OD

Pilot Pressure

1шт.

8

608089

CLAMP

Double

1шт.

9

86512440

NUT,M6, Cl 10

1шт.

10

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

11

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

12

515-2163

WIRE CLAMP,1/8", Insul, 1/4" Bolt

6.3 mm M6 Bolt

1шт.

13

87353114

HOSE ASSY.

Charge Pressure

1шт.

14

87438766

TEE

Swivel; 3/8

1шт.

15

87460903

HOSE

615 (24.2 in)

1шт.

15

87427370

HOSE ASSY.

610 (24 in); Replaces 87460903

1шт.

16

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

3/8 Tube; Incl. 17

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 tube

1шт.

18

574342

CAP,9/16" - 18 JIC

3/8 Tube

1шт.

19

87458744

HYD TUBE,6.35 mm OD x 583.4, 124.1 mm L

Pilot Pressure

1шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

21

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

22

87016617

LOCK WASHER,M8

2шт.

23

87439065

BRACKET

Accumulator Mounting

1шт.

24

86624732

ACCUMULATOR

1шт.

25

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

Replaces 214-1464

1шт.

26

87010110

HYD CONNECTOR

Replaces 218-5359; Incl 27; 37 FL X ORB 4-8

1шт.

27

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Replaces 237-6008

1шт.

Выбрано товаров: 31
