Запчасти Case 450CT (08-01) - HYDRAULICS - LOADER LIFT (08) - HYDRAULICS

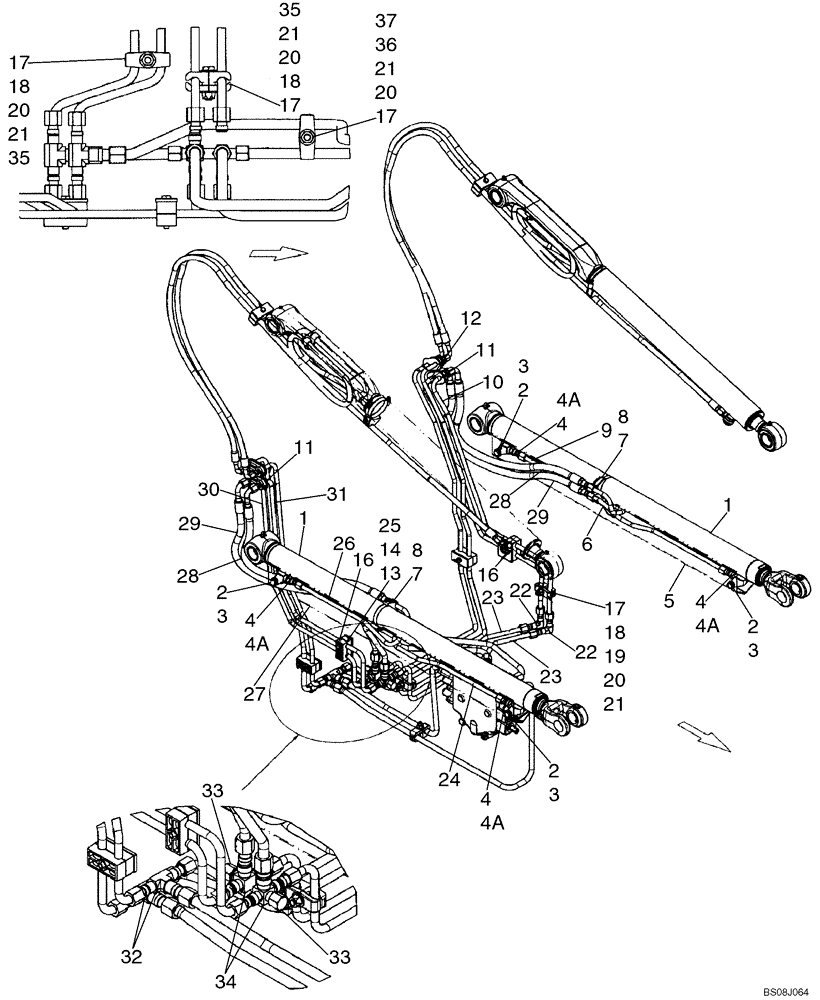

Схема запчастей Case 450CT - (08-01) - HYDRAULICS - LOADER LIFT (08) - HYDRAULICS
14
8
3
20
1
24
28
4
35
29
11
30
23
21
20
17
20
3
2
3
22
36
5
11
37
17
18
7
4a
20
7
1
34
16
10
19
6
3
2
21
25
2
4
28
35
4a
29
9
21
17
4
8
18
21
17
4
27
7
32
4a
26
4a
2
3
33
12
33
18

Артикул

Название

Примечание

Количество

1

308258A2

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 970mm Stroke

Lift, 57.2 dia Cylinder, 44.4 dia Rod; See Figure 08-11

2шт.

1

308258A2R

REMAN-HYD CYLINDER

450 TIER 2 P.I.N. N7M458414 & PRIOR (1/05-12/07), 450CT BSN N7M464019 (4/05-12/07)

2шт.

1

308258A2C

REMAN-HYD CYLINDER

Return Number

2шт.

2

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

Return Number

8шт.

3

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 4A

4шт.

4a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

301351A1

COVER

Left Hand Lift Cylinder; For Service Order 319394A1

1шт.

5

319394A1

PROTECTOR

Left Hand Lift Cylinder

1шт.

6

257315A5

TUBE,570, 51 mm Length

Left Hand Lift Cylinder, Rod End

1шт.

7

255245A1

BLOCK

Saddle, Dual Tube

2шт.

8

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

2шт.

9

301349A2

TUBE

Left Hand Lift Cylinder Base End

1шт.

10

87431356

HYD TUBE,12.7 mm OD x 656, 58.2 mm L

Left Hand Lift, Raise

1шт.

11

376523A2

SUPPORT,1/2"

1/2

4шт.

12

87431357

HYD TUBE,12.7 mm OD x 636, 58.2 mm L

Right Hand Lift, Lower

1шт.

13

257919A1

CLAMP BRACKET

2шт.

14

259905A1

SPACER

1/4 x 31.25

2шт.

15

87450067

BAR

Clamp Mounting; If Used

1шт.

16

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

17

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

4шт.

18

D120679

CLAMP,Tube, 1/2"

1/2

3шт.

19

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

20

86512554

NUT,M10 x 1.5, Cl 10

4шт.

21

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

22

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

23

419000A1

TUBE

Left Hand

2шт.

24

257310A5

HYD TUBE,570, 51 mm Length

Right Hand Lift Cylinder, Rod End

1шт.

25

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER Bar Clamp Top

1шт.

26

301346A2

HYD TUBE

Right Hand Lift Cylinder Base End

1шт.

27

301350A1

COVER

Right Hand Lift Cylinder; For Service Order 319395A1

1шт.

27

319395A1

PROTECTOR

Right Hand Lift Cylinder

1шт.

28

321522A2

HOSE ASSY.,12.7mm ID x 850mm L

Lift Cylinder Base End

2шт.

29

321513A2

HOSE ASSY.,12.7mm ID x 910mm L

Lift Cylinder Rod End

2шт.

30

87431355

HYD TUBE,12.7 mm OD

Right Hand Lift

1шт.

31

87431354

HYD TUBE,12.7 mm OD x 594.8 mm L

Right Hand Lift

1шт.

32

218-1584

TEE,37 Degree, 3/4"-16 x 7/8"-14, Br

2шт.

33

262159

CAP,3/4" - 16 Fem JIC

2шт.

34

280107A1

TEE

With Side Outlet

2шт.

35

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

36

D120613

CLAMP,20mm ID

5/8

1шт.

37

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

1шт.

Выбрано товаров: 42
