Запчасти Case 450CT (06-26) - TANDEM PUMP - NO AUX DRIVE (SPLIT PUMP CONFIGURATION) (06) - POWER TRAIN

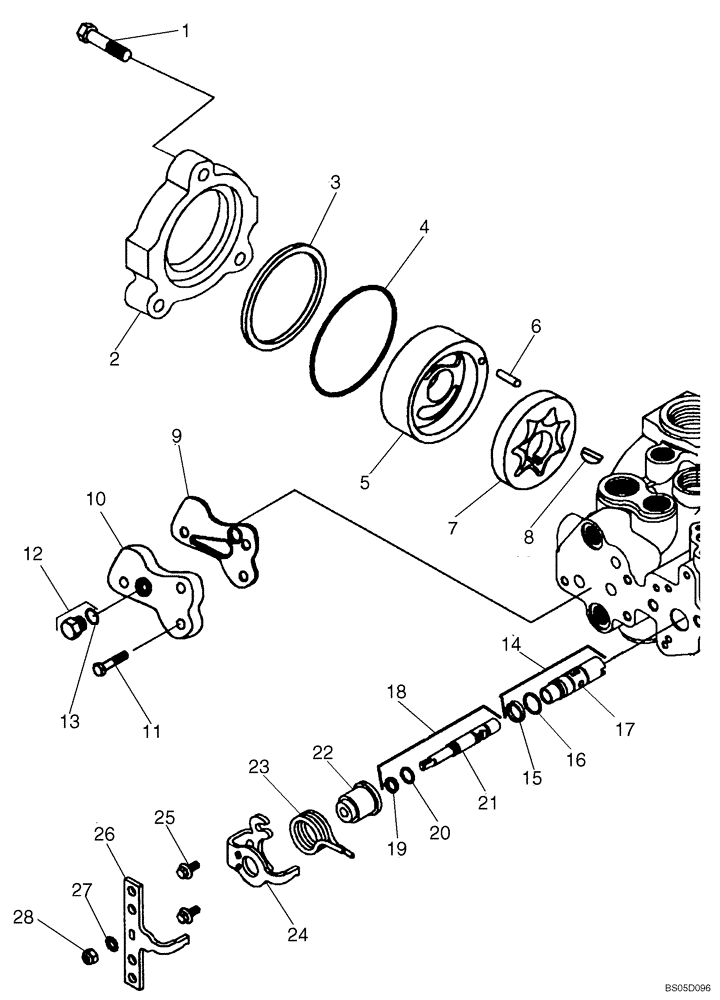

Схема запчастей Case 450CT - (06-26) - TANDEM PUMP - NO AUX DRIVE (SPLIT PUMP CONFIGURATION) (06) - POWER TRAIN
22
4
19
15
1
18
27
25
20
24
23
16
14
3
21
5
7
12
10
8
6
26
11
28
13
2
9
17

Артикул

Название

Примечание

Количество

87043511

PUMP

Tandem; Incl. Figures 06-23 - 06-26

1шт.

87382196R

REMAN-HYD PUMP

Reman for New PN 87043511

1шт.

87382196C

CORE-HYDRAULIC PUMP

Return Number

1шт.

87382196

PUMP

Tandem; Replaces 87043511; Incl. Figures 06-23 - 06-26

1шт.

87382196R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

87382196C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

2

105721A1

COVER

1шт.

3

105716A1

OIL SEAL

Temper Load Ring

1шт.

4

105715A1

O-RING

1шт.

5

105717A1

COVER

Gerotor

1шт.

6

181680A1

PIN,3/16" OD x 13/16" L

3/16 x 13/16

1шт.

7

105719A1

ROTOR ASSY.

1шт.

8

86019216

KEY

Woodruff

1шт.

9

303709A1

GASKET

Suction Filter Adapter

1шт.

10

101462A1

ADAPTER

1шт.

11

26-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

3шт.

12

76349

PLUG,9/16" - 18 ORB

Incl. 13

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

87039615

SLEEVE

Incl. 15 - 17

1шт.

15

86993483

BACK-UP RING,0.643"

1шт.

16

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

17

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

18

87039614

SPOOL

Incl. 19 - 21

1шт.

19

86993484

BACK-UP RING,0.390"

1шт.

20

86993475

O-RING

1шт.

21

NSS

NOT SOLD SEPARAT

Spool

1шт.

22

87039613

GUIDE RING

1шт.

23

407060A1

SPRING

Neutral Return

1шт.

24

436416A1

BRACKET

Neutral Return

1шт.

25

H435770

FLANGE BOLT,1/4" - 20 x 5/8"

2шт.

26

436415A1

HANDLE

Control

1шт.

27

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

28

H436054

SPECIAL NUT,Lock, 5/16" - 18

Suction Filter Adapter

1шт.

Выбрано товаров: 34
